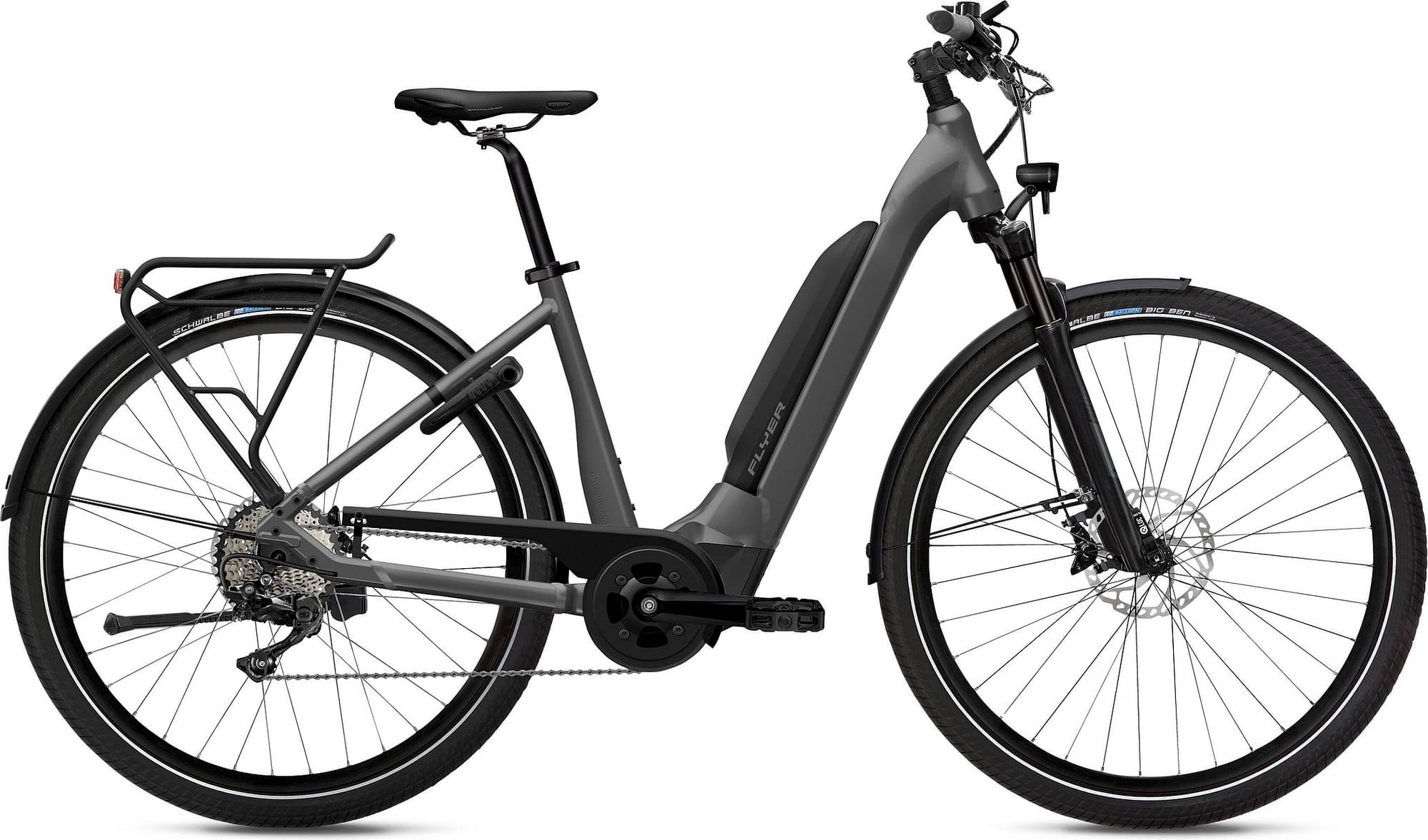

flyer Upstreet5 3.12 Low 2023
2023 E-bike
Estimate price |
3,440$
Weight | 29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Panasonic 75Nm mid-drive -
Battery FLYER SIB-630 (630 Wh / 16.75 Ah / 36 V) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FLYER Engineered, Hydroformed Tubing
Suspension Fork
SR Suntour MobiE A32 Coil, 75 mm, 15 x 100 mm Axle
Drivetrain
Rear Derailleur
Shimano Alivio, 9 Speed, 11-36t
Cassette
Shimano Alivio, 9 Speed, 11-36t
Pedals
VP VPE-891
Wheels
Front Hub
Shimano Alivio HB-MT400, 32h
Rear Hub
Shimano Alivio FH-M4050, 32h
Rims
FLYER Disc
Tires
Schwalbe Smart Sam Classic Skin 29 x 2.25 (57-622)
Brakes
Brakes
Shimano T200, 180/160 mm
Cockpit
Stem
Satori Up2+, 31.8 x 90 mm, Adjustable Angle
Handlebar
FLYER Cruise, 620 mm, 44°, 55 mm (C) / Kalloy HB-TR2, 640 mm, 25° (G)
Seat
Saddle
Selle Royal Nuvola
Seatpost
FLYER Alloy, 30.9 mm x 300 (S) / 350 (M-XL) mm
Motor & Battery
Motor
Panasonic GX Power Plus (75 Nm)
Battery
FLYER SIB-630 (630 Wh / 16.75 Ah / 36 V)
Charger
FLYER Charger 4A 36V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.7 mm | 1.67 mm | 1.64 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 655 mm | 655 mm | 674 mm | 700 |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 80 mm | 77 mm | 77 mm |
| Stack | 629 mm | 653 mm | 674 mm | 692 mm |
| Reach | 382 mm | 385 mm | 404 mm | 423 mm |
| Top Tube Length | 576 mm | 586 mm | 611 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 69 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1135 mm | 1135 mm | 1155 mm | 1181 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
About this model
Upstreet5 3.12 Low is part of the Flyer E Upstreet5 model. Flyer released 4 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Flyer Upstreet5 3.12 Low 2023 is the cheapest e-bike model and costs 3184$. Flyer Upstreet5 5.20 Low 2023 is the most expensive one and costs 3715$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 3184$. Doing a quick comparison, we notice that Upstreet5 3.12 Low price is 23.94% more expensive than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 24.02 kg (52.95 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Upstreet5 3.12 Low has a weight of 29 kg (63.93 lbs). In other words, this model is 20.73% heavier than the average Commuter e-bike.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Upstreet5 3.12 Low e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Upstreet5 3.12 Low has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Upstreet5 3.12 Low comes in 4 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
