Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Arriba, aluminium 6061, disc, BSA BB, 135 mm quick release dropouts, post mount 160 mm, internal brake & gear cable routing
Suspension Fork
Arriba, aluminium, disc, 100 mm quick release, post mount 160 mm, external brake cable routing
Drivetrain
Rear Derailleur
Shimano Altus M310 Smart, 8-speed, long cage
Shift Levers
Shimano Altus SLM310
Bottom Bracket
BSA, threaded
Wheels
Tires
Continental Sport Contact, 700x28C
Brakes
Brakes
Shimano M315, disc, 160 mm / 160 mm
Cockpit
Stem
Concept, aluminium, 31.8mm, +/- 6degree
Handlebar
Concept EX, aluminium, flat
Seat
Seatpost
Concept, aluminium, 27,2 mm, 350 mm, set-back: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.45 mm | 1.44 mm |
| Front Center | 621 mm | 636 mm | 650 | 664 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 76 mm | 75 mm | 75 mm | 75 mm |
| Stack | 567 mm | 581 mm | 595 mm | 605 mm |
| Reach | 389 mm | 399 mm | 409 mm | 419 mm |
| Top Tube Length | 568 mm | 583 mm | 597 mm | 611 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 170 mm | 185 mm | 185 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1046 mm | 1062 mm | 1076 mm | 1090 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

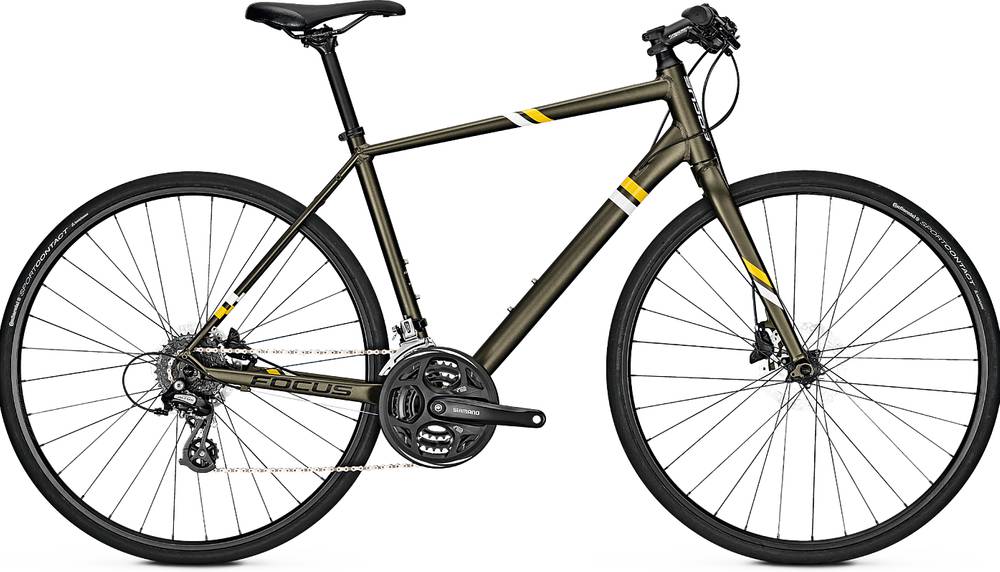

ARRIBA Altus is part of the Focus Arriba model. There are 10 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on ARRIBA Altus are the 700c type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Focus ARRIBA Altus bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
