Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Arriba, aluminium 6061, disc, BSA BB, 135 mm quick release dropouts, post mount 160 mm, internal brake & gear cable routing
Suspension Fork
Arriba, aluminium, disc, 100 mm quick release, post mount 160 mm, external brake cable routing
Drivetrain
Rear Derailleur
Shimano Sora R3000, 9-speed,short cage
Shift Levers
Shimano Sora SLR300
Bottom Bracket
BSA, threaded
Wheels
Tires
Continental Sport Contact, 700x28C
Brakes
Brakes
Shimano M315, disc, 160 mm / 160 mm
Cockpit
Stem
Concept, aluminium, 31.8mm, +/- 6degree
Handlebar
Concept EX, aluminium, flat
Seat
Seatpost
Concept, aluminium, 27,2 mm, 350 mm, set-back: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.45 mm | 1.44 mm |
| Front Center | 621 mm | 636 mm | 650 | 664 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 76 mm | 75 mm | 75 mm | 75 mm |
| Stack | 567 mm | 581 mm | 595 mm | 605 mm |
| Reach | 389 mm | 399 mm | 409 mm | 419 mm |
| Top Tube Length | 568 mm | 583 mm | 597 mm | 611 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 170 mm | 185 mm | 185 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1046 mm | 1062 mm | 1076 mm | 1090 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

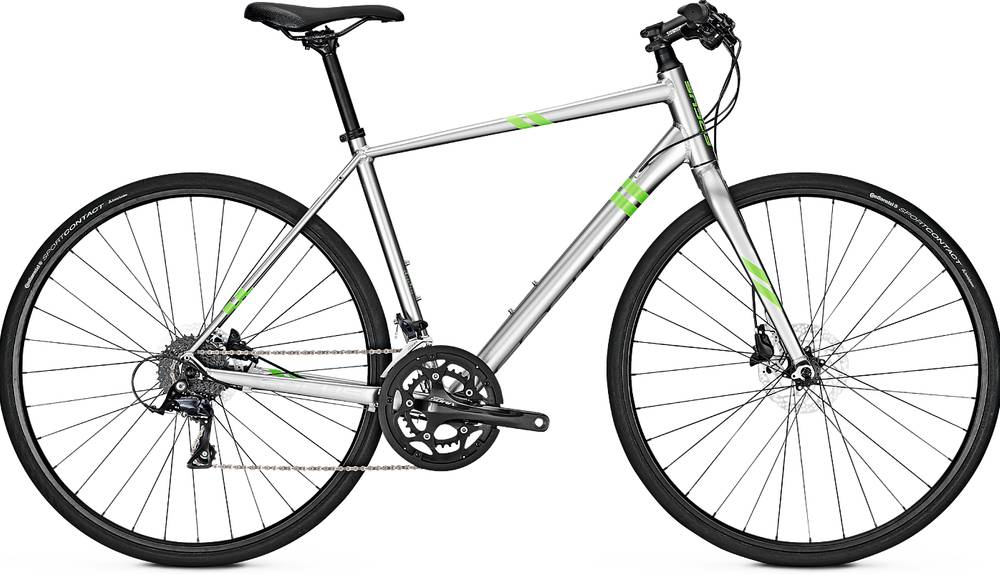

ARRIBA Sora is a Focus Arriba model. Focus launched 10 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness bikes average price
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ARRIBA Sora components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Focus ARRIBA Sora 2018, has a 700c model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus ARRIBA Sora is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Focus ARRIBA Sora bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
