Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 aluminium, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Suspension Fork
SR Suntour Raidon LOR, 15x110 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
FSA CK-320, aluminium
Bottom Bracket
Integraded in Drive Unit
Chain
Shimano SLX CN-M7100
Wheels
Rims
Shimano MT501, 15x110 mm / 12x148 mm
Tires
Schwalbe Smart Sam 57-622
Brakes
Brakes
Shimano MT420, 4-piston, hydraulic disc brake
Brake Levers
Shimano MT420
Cockpit
Stem
Aluminium, 70mm, 35degree
Handlebar
Aluminium, riserbar, backsweep: 15 degree, 690mm
Grips
Ergon GP10
Headset
VP Components, ZS56/28,6-ZS56/40
Seat
Saddle
Ergon ST10
Seatpost
Aluminium, 31,6 mm
Motor & Battery
Motor
Bosch Performance CX Gen4, 75 Nm, 250 W
Battery
625 Wh
Remote
Bosch Smartphone Hub (COBI Connected Biking)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.541 mm | 1.508 mm | 1.491 mm | 1.484 mm |
| Front Center | 699 mm | 718 mm | 726 mm | 748 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 85 mm | 85 mm | 79 mm | 79 mm |
| Stack | 632 mm | 641 mm | 656 mm | 675 mm |
| Reach | 410 mm | 425 mm | 440 mm | 455 mm |
| Top Tube Length | 597 mm | 615 mm | 634 mm | 655 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1162 mm | 1181 mm | 1189 mm | 1211 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

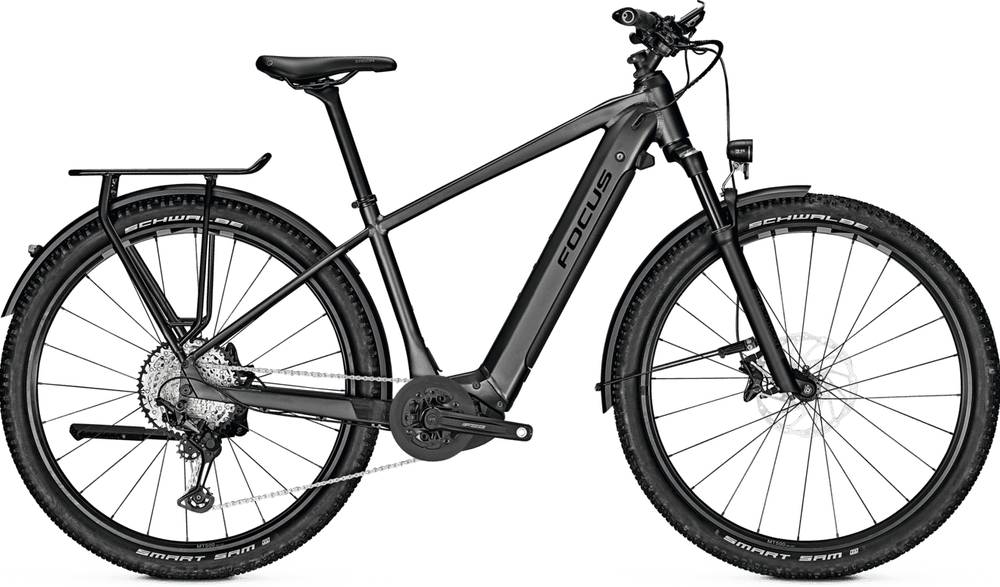

AVENTURA² 6.9 is a Focus E Aventura model. Focus released 18 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Focus AVENTURA² 6.9 it’s weighing 23.1 kg (50.93 lbs). At this weight, is slightly lighter than average. To sum up, it’s 2.99% lighter than the average weight of Hybrid e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This e-bike has the SunTour RAIDON fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the AVENTURA² 6.9 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus AVENTURA² 6.9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
