Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Deore, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery 400 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, internal cable routing, international disc brake standard
Suspension Fork
SR Suntour NEX, 9 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano Deore 592, 9-speed
Shift Levers
Shimano Altus 2000
Bottom Bracket
BSA, threaded
Wheels
Rims
Schürmann Yak19 622-19, Shimano TX50 CL, 9 mm, QR
Tires
Schwalbe Delta Cruiser 700x40c Plus
Brakes
Brakes
Shimano M315, 180 mm / 160 mm
Cockpit
Stem
aluminium, 31,8 mm, 90 mm
Handlebar
aluminium, riserbar, 700mm
Seat
Seatpost
Sport components SP-DC1
Motor & Battery
Motor
Bosch Performance CX, 75 Nm, 250 W, 50-300% support power
Battery
400 Wh
Remote
BOSCH Purion with Control panel, walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.53 mm | 1.6 mm | 1.74 mm |
| Front Center | 624 mm | 645 mm | 651 mm | 659 mm |
| Rake | 45 mm | 55 mm | 55 mm | 55 mm |
| Trail | 73 mm | 66 mm | 64 mm | 64 mm |
| Stack | 624 mm | 608 mm | 637 mm | 684 mm |
| Reach | 378 mm | 398 mm | 399 mm | 393 mm |
| Top Tube Length | 569 mm | 579 mm | 594 mm | 609 mm |
| Seat Tube Angle | 73 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 150 mm | 135 mm | 170 mm | 220 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1091 mm | 1112 mm | 1119 mm | 1128 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

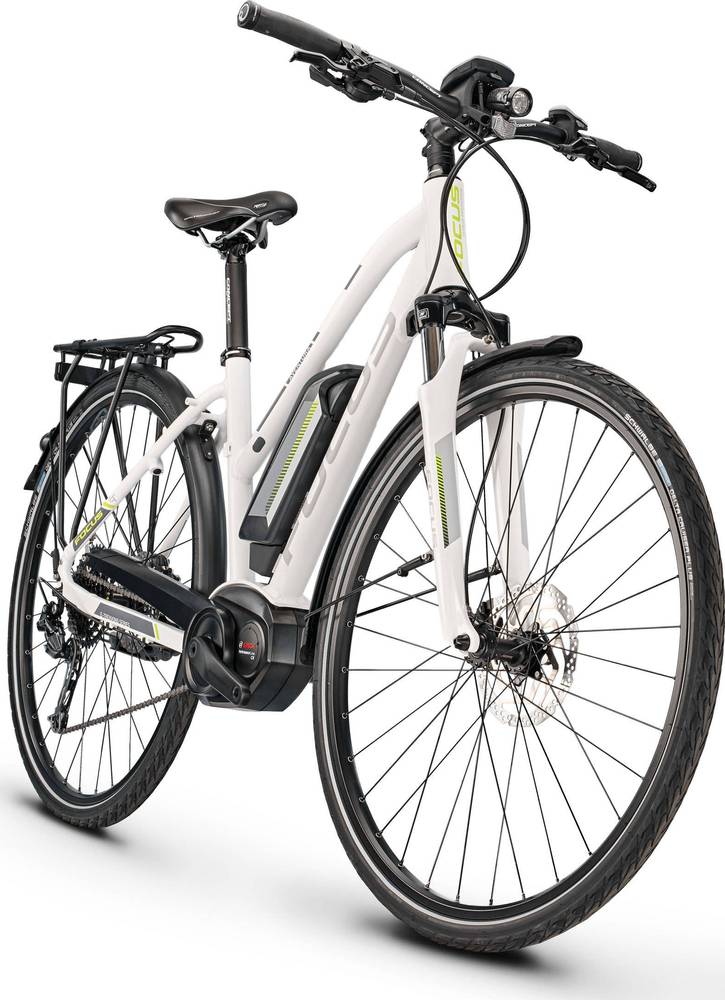

AVENTURA² Elite completes the Focus E Aventura model. 18 e-bikes variations carry this model name so far. Take a sneak peek at all Focus E Aventura e-bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
Focus AVENTURA² Elite 2018 e-bike is equipped with the SunTour NEX fork, and has 50mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the AVENTURA² Elite e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus AVENTURA² Elite has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Focus AVENTURA² Elite e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
