Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery 10,5 Ah -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm through axle, internal cable routing, post mount 180 mm, kickstand mount 18 mm
Suspension Fork
RockShox Recon RL, 110x15 mm QR, 120 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 786, 10-speed
Shift Levers
Shimano Deore M6000
Wheels
Rims
Race Face AR30, 622-30, Novatec, 148x12 mm / 110x15 mm
Tires
Continental Trail King 2.4 SL
Brakes
Brakes
Magura MT2, 200 mm / 180 mm
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
BBB-BSP-20, 31.6 mm, 350mm
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
10,5 Ah
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.52 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 702 mm | 716 mm | 738 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 99 mm | 100 mm | 100 mm |
| Stack | 619 mm | 628 mm | 647 mm | 665 mm |
| Reach | 403 mm | 413 mm | 428 mm | 443 mm |
| Top Tube Length | 582 mm | 595 mm | 615 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1149 mm | 1163 mm | 1185 mm | 1208 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

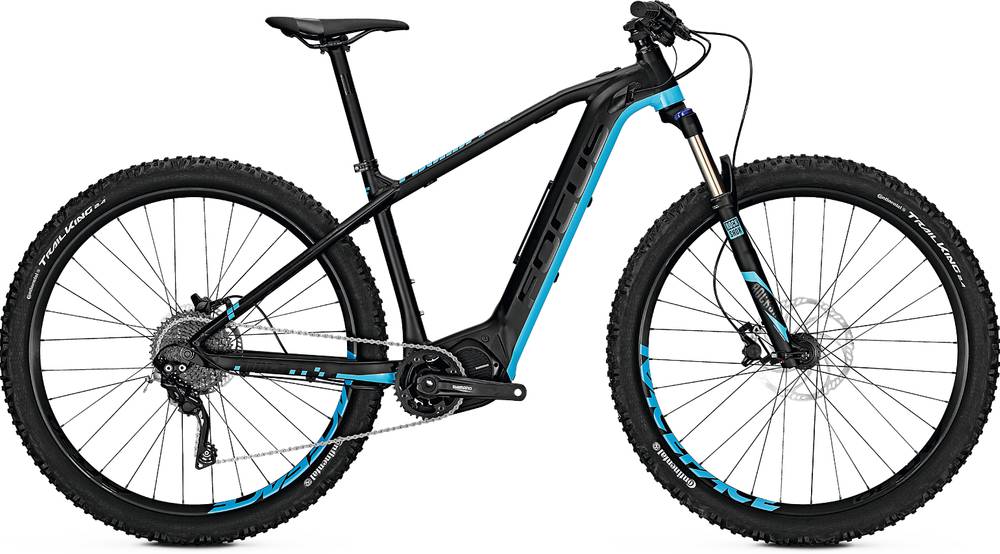

BOLD² 29 LTD is a Focus E Bold model. Focus launched 7 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
BOLD² 29 LTD components
Fork
The BOLD² 29 LTD comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the BOLD² 29 LTD model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The BOLD² 29 LTD has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
