Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, BSA BB, international disc brake standard
Suspension Fork
SR Suntour XCM RL, remote lockout
Drivetrain
Rear Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore M6000
Bottom Bracket
BSA, 73mm, threaded
Wheels
Tires
Schwalbe Smart Sam, 65-622
Brakes
Brakes
Shimano M315, hydraulic disc brake
Brake Levers
Shimano M315
Cockpit
Stem
Concept
Handlebar
Concept EX Riser
Seat
Seatpost
Concept
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.592 mm | 1.575 mm | 1.564 mm | 1.572 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 735 mm | 672 mm | 694 mm | 711 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 5 mm | 82 mm | 82 mm | 82 mm |
| Stack | 629 mm | 638 mm | 657 mm | 676 mm |
| Reach | 395 mm | 405 mm | 420 mm | 430 mm |
| Top Tube Length | 575 mm | 588 mm | 608 mm | 624 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 464 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1192 mm | 1119 mm | 1141 mm | 1158 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

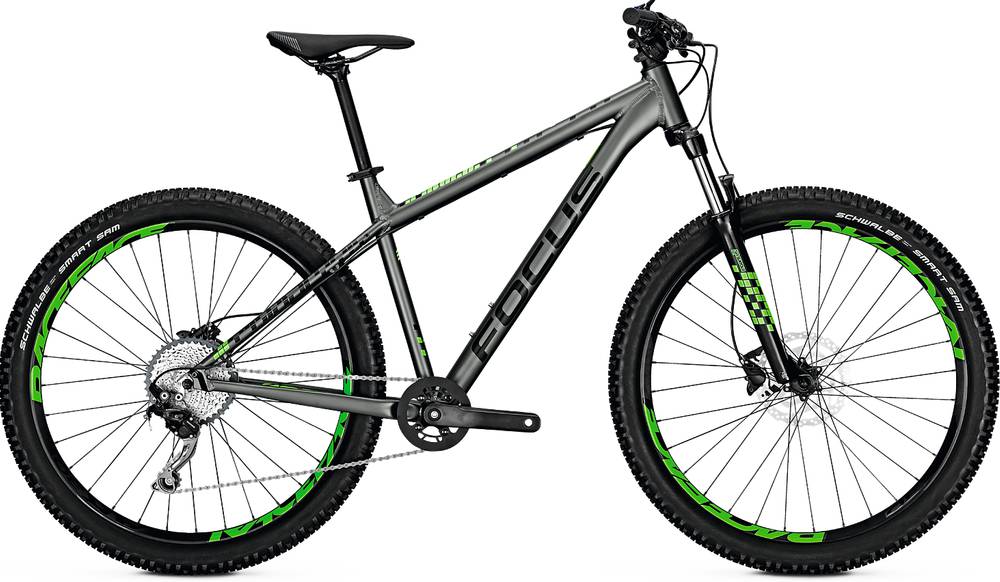

BOLD SL completes the Focus Bold model. There are 2 bikes that carry this model name. You can easily view all of the Focus Bold bikes models from 2018, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Focus BOLD SL 2018, has a 29″ model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The BOLD SL has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
BOLD SL comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
