Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery 10,5 Ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm through axle, internal cable routing, post mount 180 mm, kickstand mount 18 mm
Suspension Fork
RockShox Revelation RC, 110x15 mm QR, 120 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano SLX 7000
Crank
1x
Wheels
Rims
Race Face AR30, 622-30, Novatec, 148x12 mm / 110x15 mm
Tires
Continental Trail King 2.4 SL
Brakes
Brakes
Shimano Deore M6000, 200 mm / 180 mm
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
KindShock E30i, 31,6mm, internal
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
10,5 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.52 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 702 mm | 716 mm | 738 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 99 mm | 100 mm | 100 mm |
| Stack | 619 mm | 628 mm | 647 mm | 665 mm |
| Reach | 403 mm | 413 mm | 428 mm | 443 mm |
| Top Tube Length | 582 mm | 595 mm | 615 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1149 mm | 1163 mm | 1185 mm | 1208 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

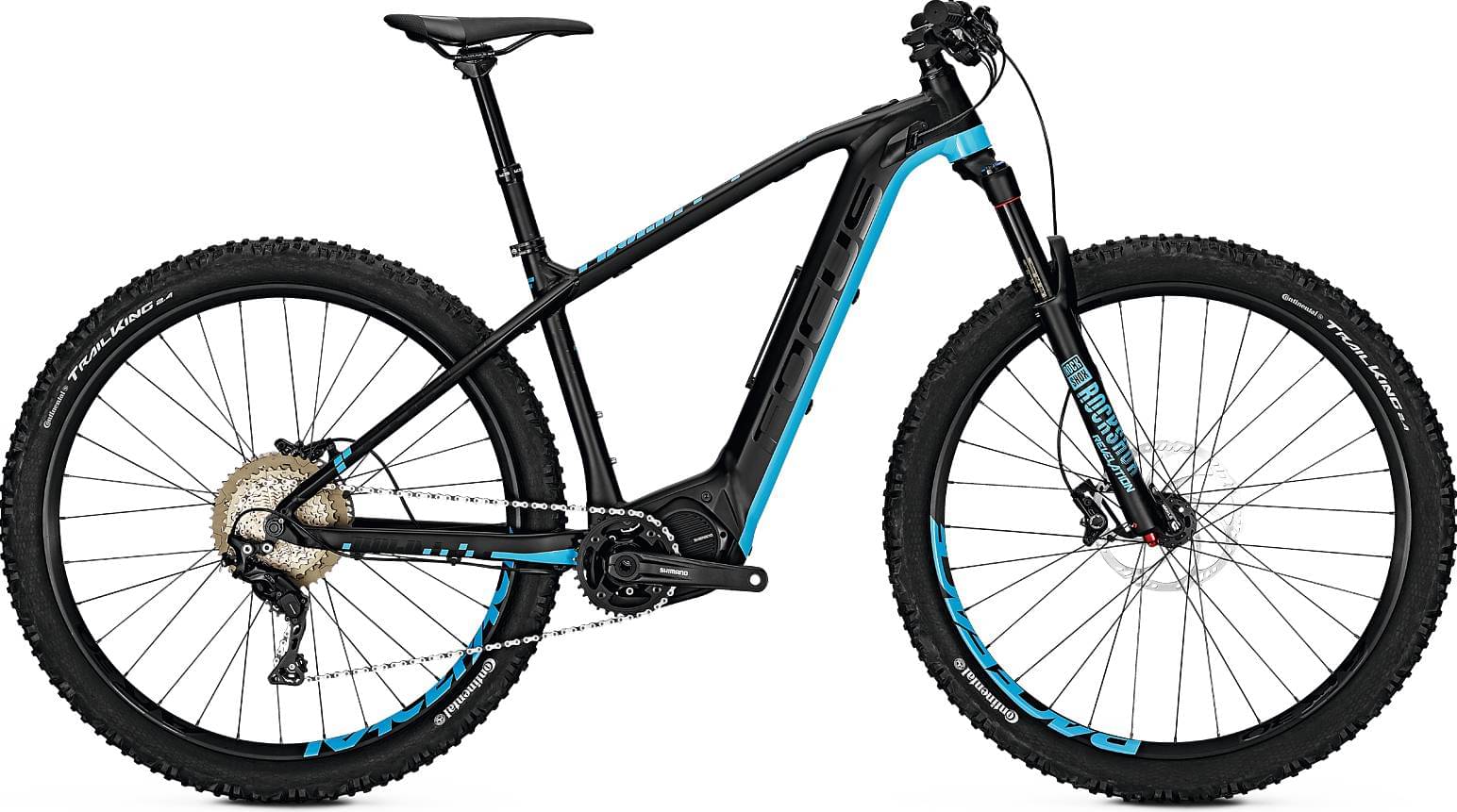

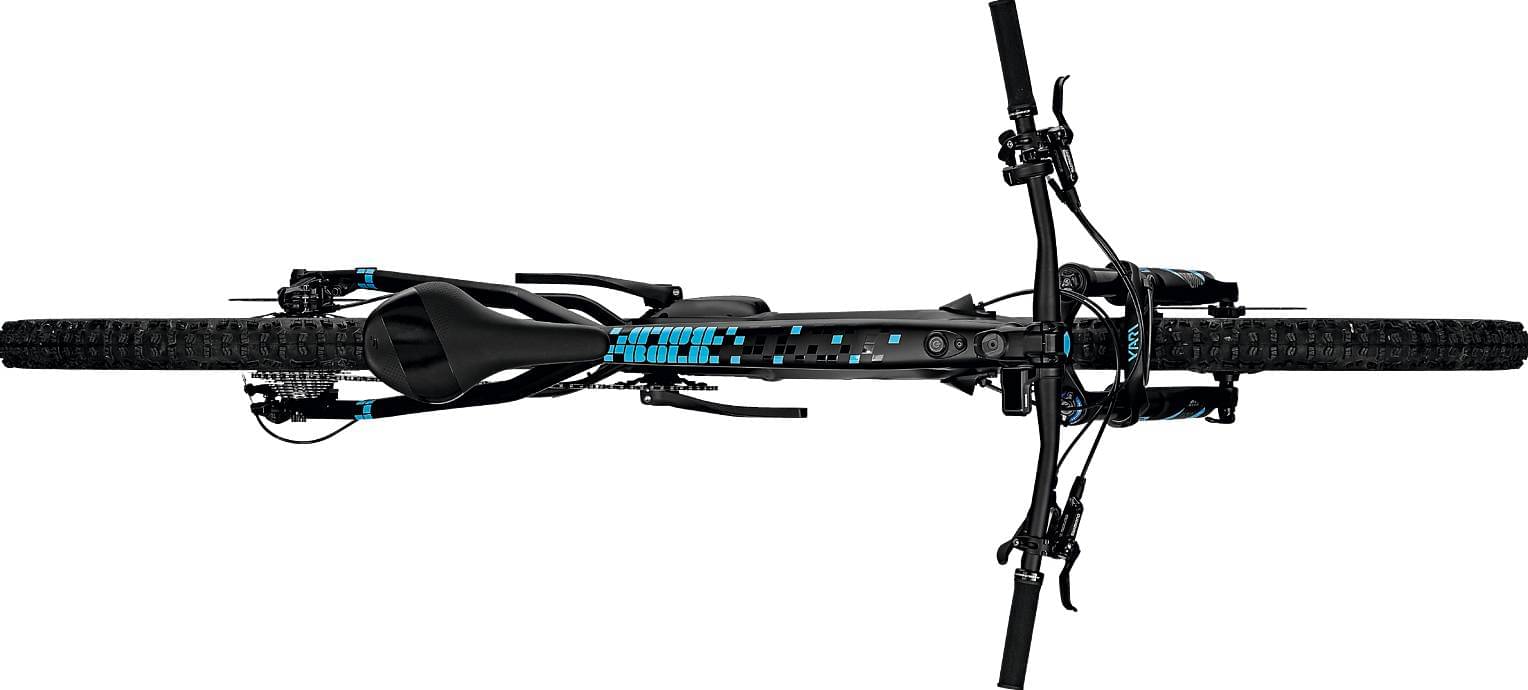

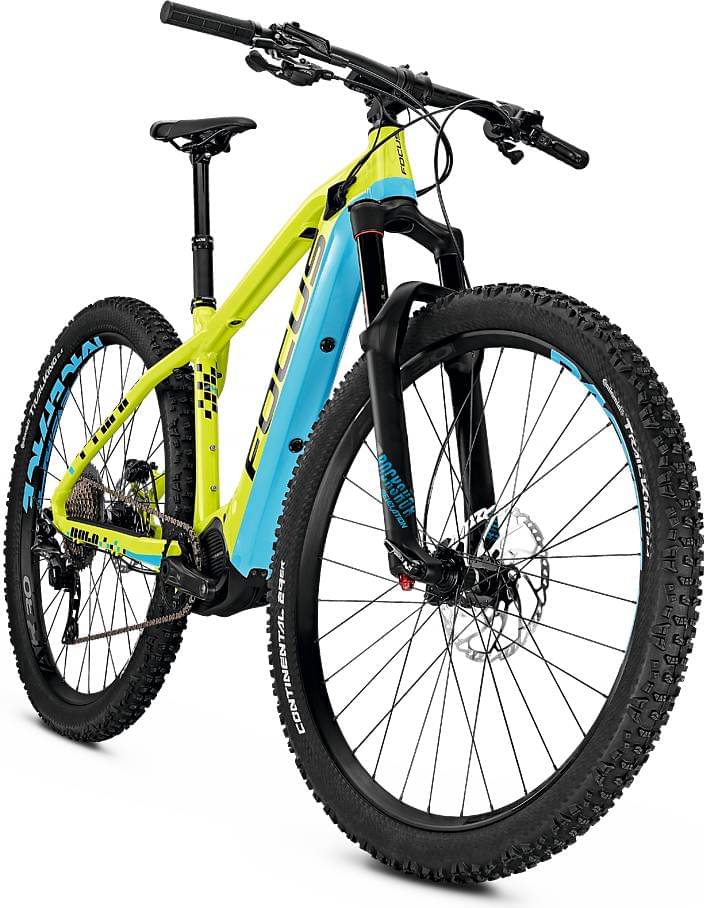

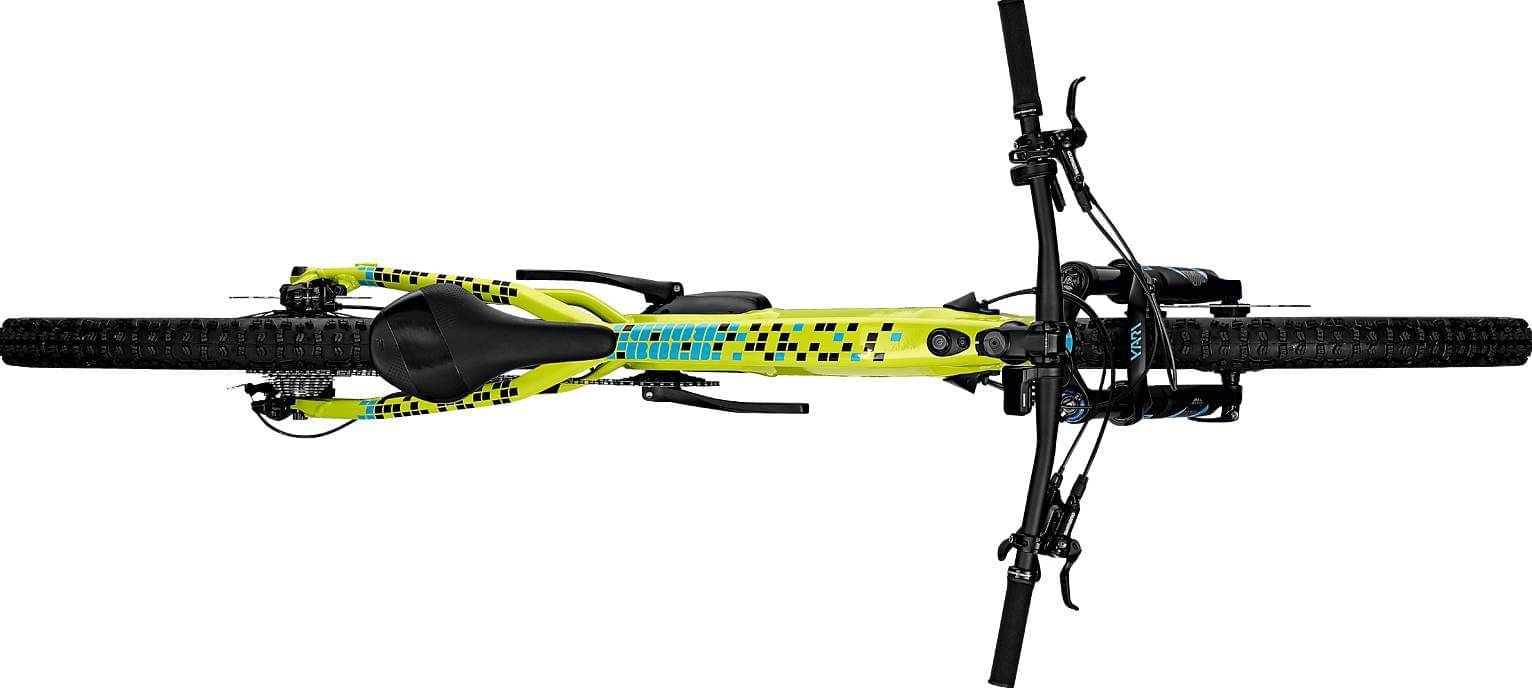

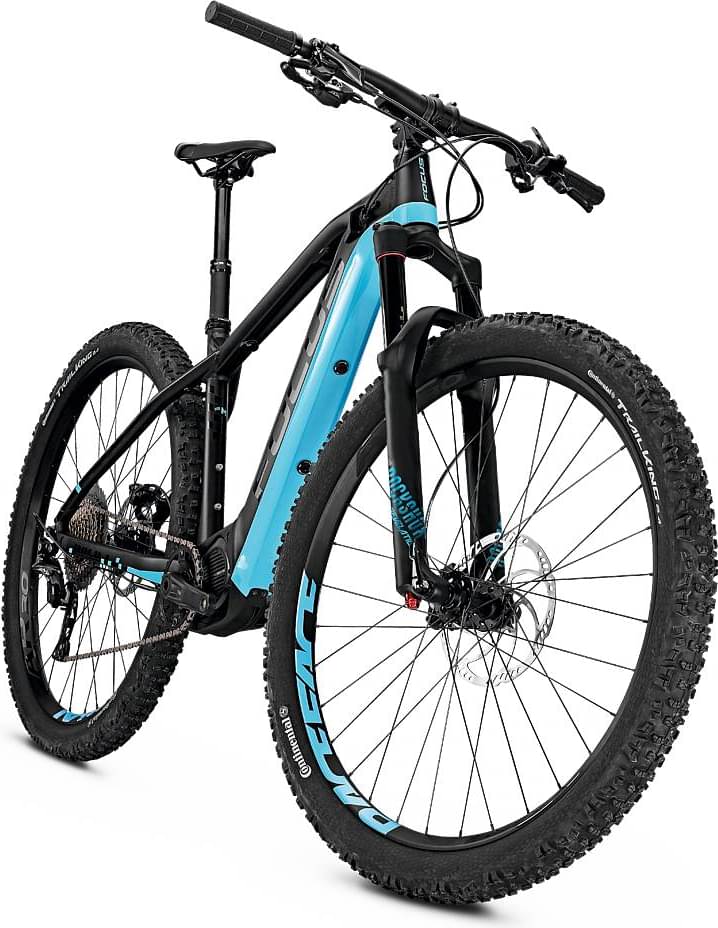

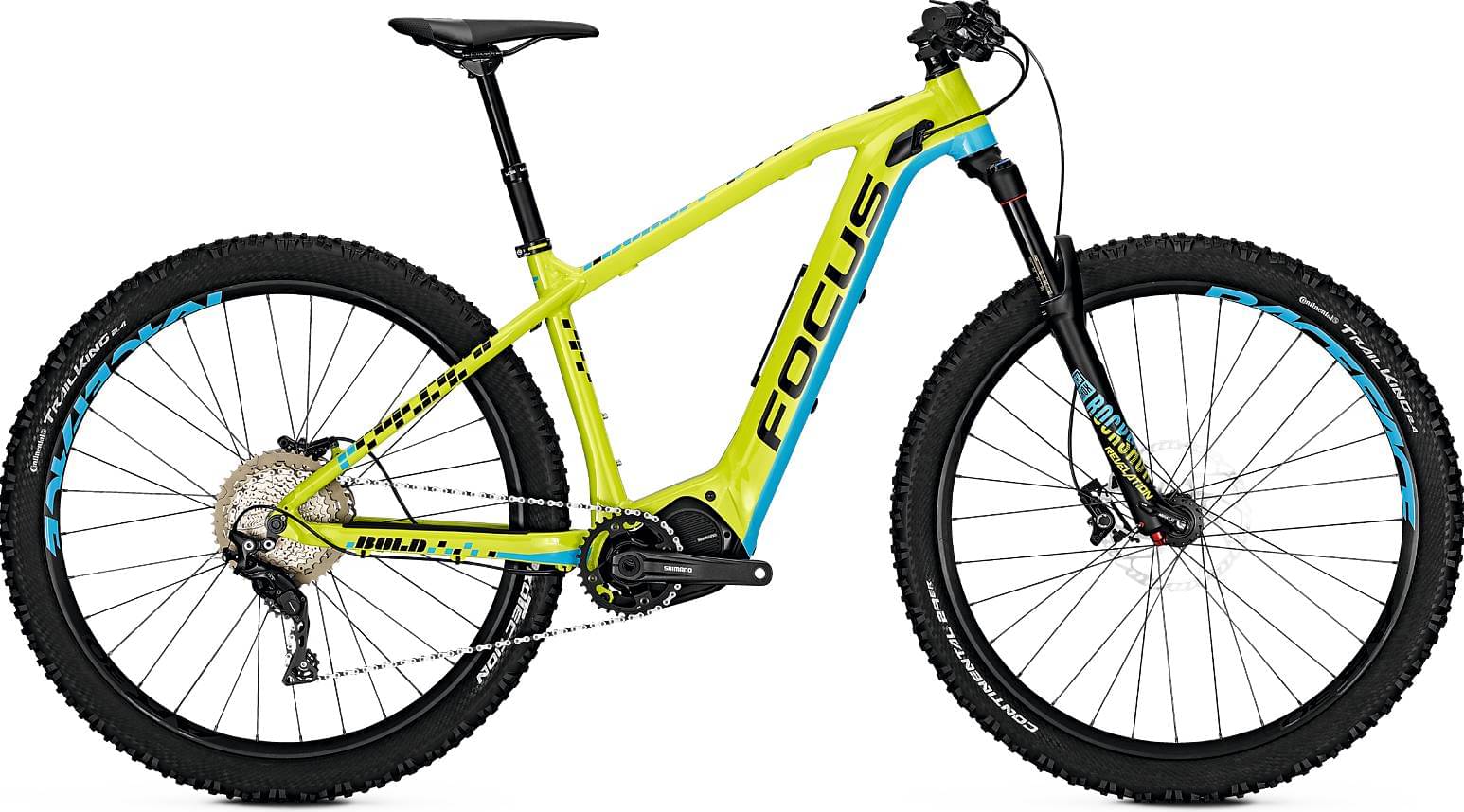

BOLD² 29 is part of the Focus E Bold2 model. There are 7 e-bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the RockShox Revelation RC fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The BOLD² 29 2018 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus BOLD² 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
