Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Altus -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, international disc brake standard
Suspension Fork
SR Suntour NEX HLO DS, 63 mm travel, 9 mm QR
Drivetrain
Rear Derailleur
Shimano Deore M591, 9-speed
Shift Levers
Shimano Altus M2000
Bottom Bracket
BSA, threaded
Wheels
Rims
Rodi Viper 21, 29" 622-21, Shimano TX-505 CL, 9 mm QR / 9 mm QR
Tires
Schwalbe Smart Sam, 44-622
Brakes
Brakes
Shimano BR-MT200, 160 mm / 160mm
Brake Levers
Shimano MT200
Cockpit
Stem
aluminium, 31.8mm
Handlebar
aluminium, riserbar, 680mm
Seat
Seatpost
fixed, aluminium, Ø 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.55 mm | 1.62 mm | 1.76 mm |
| Front Center | 635 mm | 634 mm | 645 mm | 655 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 70 mm | 69 mm | 69 mm |
| Stack | 612 mm | 615 mm | 643 mm | 690 mm |
| Reach | 393 mm | 397 mm | 397 mm | 391 mm |
| Top Tube Length | 569 mm | 579 mm | 594 mm | 609 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 135 mm | 135 mm | 170 mm | 220 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1092 mm | 1091 mm | 1103 mm | 1113 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

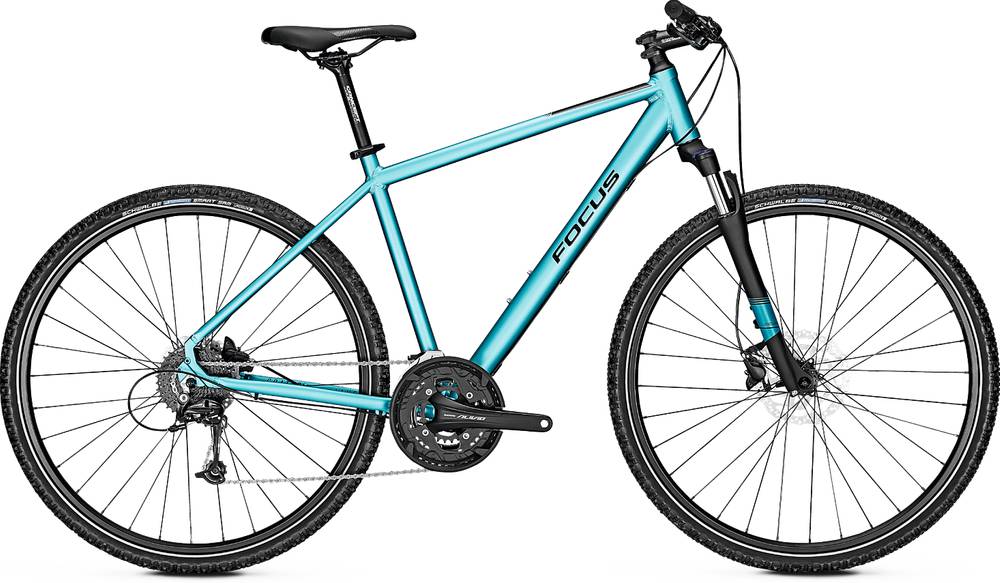

CRATER LAKE 3.8 is a Focus Crater model. Focus launched 5 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Focus CRATER LAKE 3.8 2019 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Focus CRATER LAKE 3.8 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CRATER LAKE 3.8 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Focus CRATER LAKE 3.8 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
