Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MAX technology carbon, disc, BB86, 142x12 mm thru axle, R.A.T Evo technology, Di2/mechanical, flat mount 160 mm, internal cable routing
Suspension Fork
MAX technology carbon, integrated, disc, 100x12 mm, thru axle, R.A.T Evo Technology, flat mount 160/140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra R8000
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8020
Cassette
Shimano Ultegra R8000
Crank
Shimano Ultegra R8000, 52/36T
Bottom Bracket
Shimano Pressfit Road BB86
Chain
Shimano CN-HG701
Wheels
Rims
Novatec R5, disc center-lock, carbon, 100x12 / 142x12 mm, 20 mm inner rim width, 50 mm rim height
Tires
Continental Ultra Sport II, 700 x 25C, Folding
Brakes
Brakes
Shimano Ultegra R8020 hydraulic disc, 160 / 160 mm
Brake Levers
Shimano Ultegra R8020
Cockpit
Stem
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Deluxe, aluminium, drop: 125mm, reach: 70mm
Grips
FOCUS Bartape SL
Headset
Acros, IS 52/40-IS52/42
Seat
Saddle
Prologo Scratch
Seatpost
FOCUS IZALCO MAX aero carbon, D-shape, 350 mm, set-back: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.38 mm | 1.4 mm | 1.4 mm | 1.39 mm | 1.42 mm | 1.46 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 578 mm | 578 mm | 588 mm | 600 mm | 612 mm | 626 mm | 646 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 66 mm | 59 mm | 57 mm | 57 mm | 52 mm | 54 mm |
| Stack | 498 mm | 502 mm | 524 mm | 540 mm | 550 mm | 575 mm | 609 mm |
| Reach | 356 mm | 364 mm | 374 mm | 386 mm | 396 mm | 406 mm | 416 mm |
| Top Tube Length | 500 mm | 513 mm | 531 mm | 547 mm | 560 mm | 578 mm | 598 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 80 mm | 80 mm | 100 mm | 115 mm | 125 mm | 150 mm | 185 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 971 mm | 971 mm | 981 mm | 993 mm | 1006 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |

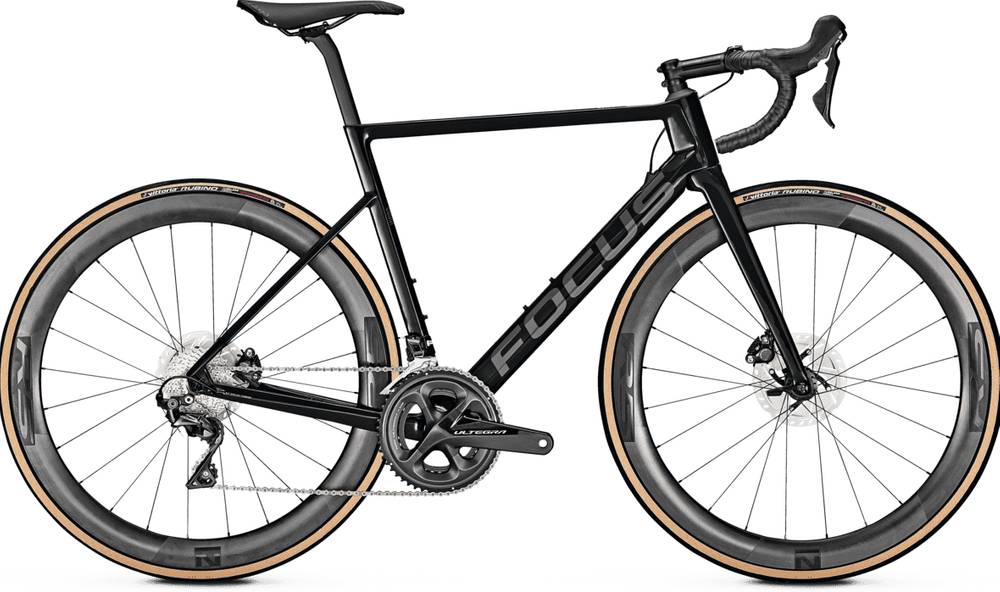

Model Overview
IZALCO MAX DISC 8.8 completes the Focus Izalco model. Focus launched 61 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, IZALCO MAX DISC 8.8 has a weight of 7.95 kg (17.53 lbs). In short, the average Race bike weight is 16.57% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
IZALCO MAX DISC 8.8 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the IZALCO MAX DISC 8.8 bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IZALCO MAX DISC 8.8 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
