Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MAX technology carbon, disc, BB86, 142x12 mm thru axle, R.A.T Evo technology, electronical shifting only, flat mount 160 mm, internal cable routing
Suspension Fork
MAX technology carbon, integrated, disc, 100x12 mm, thru axle, R.A.T Evo Technology, flat mount 160/140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra R8050, Di2
Front Derailleur
Shimano Ultegra R8050, Di2
Shift Levers
Shimano Ultegra R8070, Di2
Cassette
Shimano Ultegra R8000
Crank
Shimano Ultegra R8000, 52/36T
Bottom Bracket
Shimano Pressfit Road BB86
Chain
Shimano CN-HG701
Wheels
Rims
DT Swiss ARC 1450 DICUT DB, 48mm height
Tires
Vittoria Corsa, 700 x 25C, Folding
Brakes
Brakes
Shimano Ultegra R8070 hydraulic disc
Brake Levers
Shimano Ultegra R8070, Di2
Cockpit
Stem
Izalco Max carbon, integrated cable routing, 31.8mm, -15 degree
Handlebar
Easton EC90 Aero, carbon, drop: 125mm, reach: 80mm
Grips
FOCUS Bartape SL
Headset
Acros, IS 52/40-IS52/42
Seat
Saddle
Prologo Dimension
Seatpost
FOCUS IZALCO MAX aero carbon, D-shape, 350 mm, set-back: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.38 mm | 1.4 mm | 1.4 mm | 1.39 mm | 1.42 mm | 1.46 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 578 mm | 578 mm | 588 mm | 600 mm | 612 mm | 626 mm | 646 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 66 mm | 59 mm | 57 mm | 57 mm | 52 mm | 54 mm |
| Stack | 498 mm | 502 mm | 524 mm | 540 mm | 550 mm | 575 mm | 609 mm |
| Reach | 356 mm | 364 mm | 374 mm | 386 mm | 396 mm | 406 mm | 416 mm |
| Top Tube Length | 500 mm | 513 mm | 531 mm | 547 mm | 560 mm | 578 mm | 598 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 80 mm | 80 mm | 100 mm | 115 mm | 125 mm | 150 mm | 185 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 971 mm | 971 mm | 981 mm | 993 mm | 1006 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model

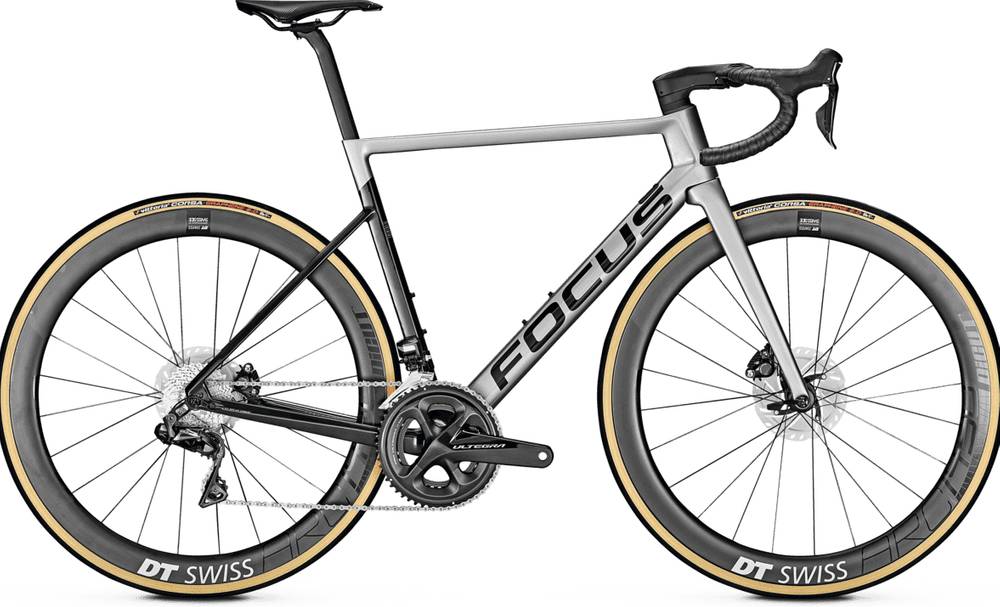

IZALCO MAX DISC 9.7 is a Focus Izalco model. There are 61 bikes that carry this model name. You can easily view all of the Focus Izalco bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
IZALCO MAX DISC 9.7 weighs 7.6 kg (16.76 lbs) and is considerably heavier than the average. In conclusion, the average Race bike weighs 11.44% less than IZALCO MAX DISC 9.7.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the IZALCO MAX DISC 9.7 model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus IZALCO MAX DISC 9.7 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, you won’t have a problem finding one that suits you.
