Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components

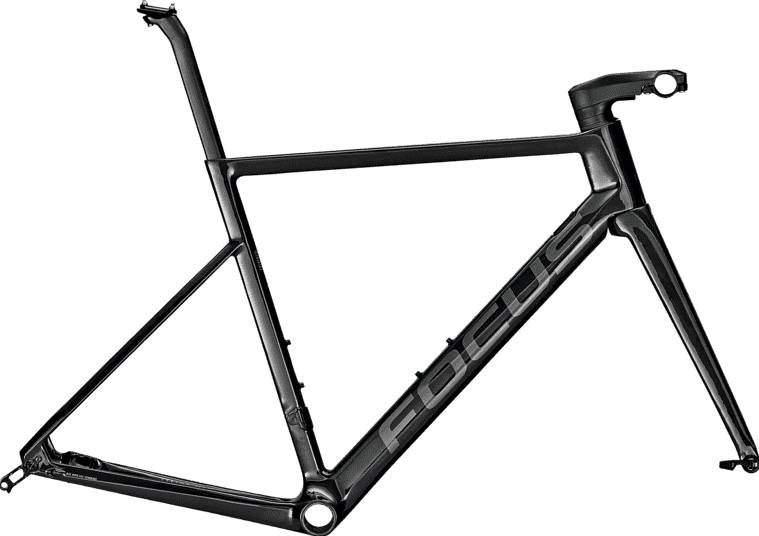

Frame
Frame
MAX technology carbon, disc, BB86, 142x12 mm thru axle, R.A.T Evo technology, electronical shifting only, flat mount 160 mm, internal cable routing, R.A.T. Evo axles included
Suspension Fork
MAX technology carbon, integrated, disc, 100x12 mm, thru axle, R.A.T Evo Technology, flat mount 160/140 mm, internal brake cable routing
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Brakes
Brakes
Disc
Cockpit
Stem
Izalco Max carbon, integrated cable routing, 31.8mm, -15 degree
Headset
Acros, IS 52/40-IS52/42
Seat
Seatpost
FOCUS IZALCO MAX aero carbon, D-shape, 350 mm, set-back: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.38 mm | 1.4 mm | 1.4 mm | 1.39 mm | 1.42 mm | 1.46 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 578 mm | 578 mm | 588 mm | 600 mm | 612 mm | 626 mm | 646 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 71 mm | 66 mm | 59 mm | 57 mm | 57 mm | 52 mm | 54 mm |
| Stack | 498 mm | 502 mm | 524 mm | 540 mm | 550 mm | 575 mm | 609 mm |
| Reach | 356 mm | 364 mm | 374 mm | 386 mm | 396 mm | 406 mm | 416 mm |
| Top Tube Length | 500 mm | 513 mm | 531 mm | 547 mm | 560 mm | 578 mm | 598 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 80 mm | 80 mm | 100 mm | 115 mm | 125 mm | 150 mm | 185 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 971 mm | 971 mm | 981 mm | 993 mm | 1006 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
IZALCO MAX DISC 9 FS is part of the Focus Izalco model. There are 61 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
IZALCO MAX DISC 9 FS components
Fork material
IZALCO MAX DISC 9 FS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Focus IZALCO MAX DISC 9 FS 2020, has a 700c model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus IZALCO MAX DISC 9 FS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, it won’t take much to find one that’s right for you.
