Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MAX technology carbon, disc, PF30 BB, 142x12 mm through axle, RAT Evo technology, Di2 ready, flat mount 140 mm, internal brake cable routing
Suspension Fork
Izalco MAX Disc, 12 x 100 mm thru axle, R.A.T, carbon
Drivetrain
Rear Derailleur
SRAM Red eTAP
Bottom Bracket
PF30, press-fit
Wheels
Rims
SRAM ZIPP302 622/17 DISC CENTER Front:STECK12 100 Rear:STECK12 142
Tires
Continental Grand Prix SL, 25-622
Brakes
Brakes
SRAM Red
Brake Levers
SRAM Red eTap
Cockpit
Stem
Easton EA90
Handlebar
Easton EC90 Aero, carbon, drop: 125mm, reach: 80mm
Seat
Seatpost
BBB FlyPost SP-131, 27,2mm, carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.37 mm | 1.37 mm | 1.38 mm | 1.42 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 264 mm | 265 mm | 265 mm | 266 mm | 266 mm | 267 mm | 268 mm |
| Front Center | 576 mm | 577 mm | 582 mm | 587 mm | 593 mm | 607 mm | 627 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 68 mm | 65 mm | 60 mm | 56 mm | 53 mm | 52 mm |
| Stack | 505 mm | 510 mm | 516 mm | 532 mm | 560 mm | 578 mm | 596 mm |
| Reach | 368 mm | 373 mm | 378 mm | 385 mm | 393 mm | 401 mm | 417 mm |
| Top Tube Length | 516 mm | 525 mm | 531 mm | 544 mm | 560 mm | 575 mm | 599 mm |
| Seat Tube Angle | 73.8 ° | 73.6 ° | 73.6 ° | 73.5 ° | 73.5 ° | 73.4 ° | 73.2 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.8 ° | 71.4 ° | 71.7 ° | 72.5 ° | 73.5 ° | 73.6 ° | 73.7 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 975 mm | 977 mm | 982 mm | 987 mm | 993 mm | 1007 mm | 1028 mm |
| Bottom Bracket Drop | 72 mm | 71 mm | 71 mm | 70 mm | 70 mm | 69 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview

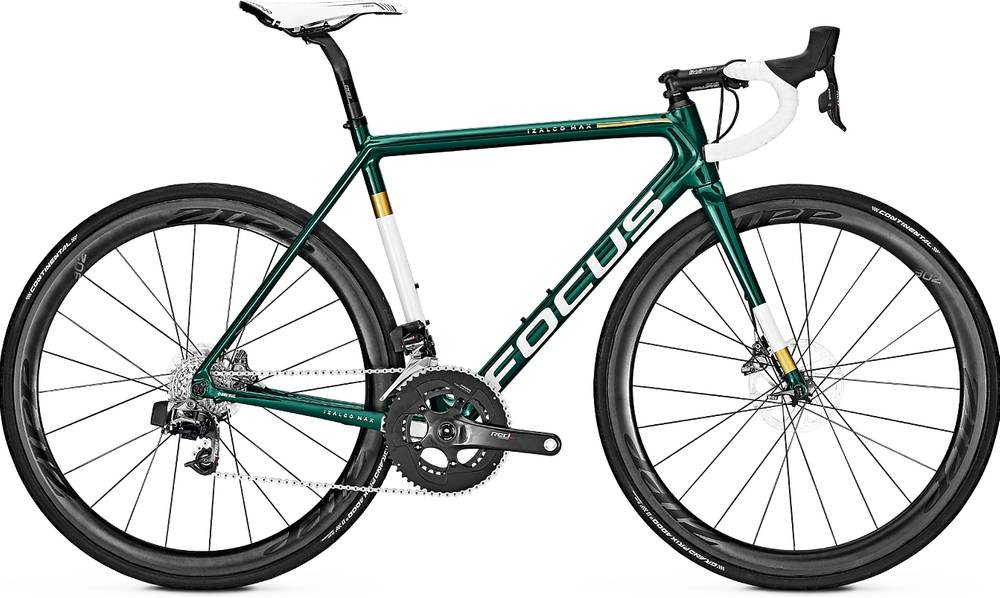

IZALCO MAX Disc RED eTAP is part of the Focus Izalco model. Focus launched 61 bikes of this model so far. Take a sneak peek at all Focus Izalco bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The IZALCO MAX Disc RED eTAP 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus IZALCO MAX Disc RED eTAP has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, it won’t take much to find one that’s right for you.
