Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL, disc, Pressfit 86 BB, 142x12 mm through axle, RAT Evo technology, Di2 ready, flat mount 140 mm, internal brake & gear cable routing
Suspension Fork
IZALCO RACE Carbon, disc, 12 x 100 mm R.A.T. thru axle, flat mount 140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7020
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
Shimano WH-RS170, disc center-lock, aluminium, 100x12/142x12 mm, 28/28 spokes, 17 mm inner rim width
Tires
Continental Ultra Sport II, 700 x 25C, Folding
Brakes
Brakes
Shimano 105 R7025 hydraulic disc
Brake Levers
Shimano 105 R7025
Cockpit
Stem
BBB Basic, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Basic, Aluminium, drop: 125 mm, reach: 70mm
Seat
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.41 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 579 mm | 590 mm | 597 mm | 617 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 69 mm | 64 mm | 61 mm | 55 mm | 56 mm |
| Stack | 508 mm | 526 mm | 542 mm | 564 mm | 584 mm |
| Reach | 365 mm | 375 mm | 385 mm | 395 mm | 410 mm |
| Top Tube Length | 498 mm | 532 mm | 547 mm | 564 mm | 584 mm |
| Seat Tube Angle | 75.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 973 mm | 979 mm | 990 mm | 997 mm | 1017 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

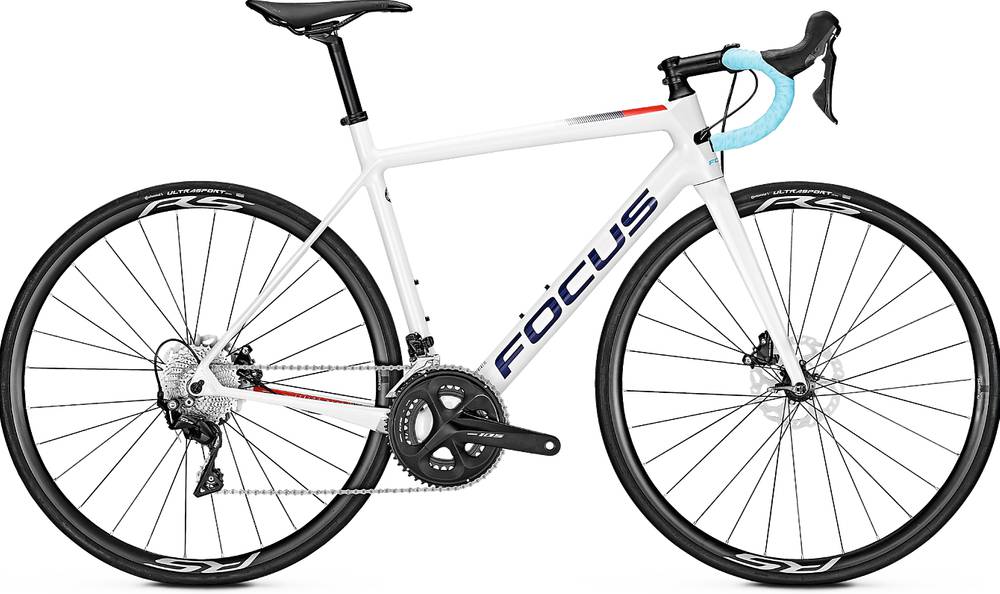

IZALCO RACE DISC 9.9 completes the Focus Izalco model. Focus launched 61 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
IZALCO RACE DISC 9.9 components
Fork material
IZALCO RACE DISC 9.9 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The IZALCO RACE DISC 9.9 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The IZALCO RACE DISC 9.9 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
