Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL, disc, Pressfit 86 BB, 142x12 mm through axle, RAT Evo technology, Di2 ready, flat mount 140 mm, internal brake & gear cable routing
Suspension Fork
Carbon, disc, 100x12 mm RAT through axle, RAT Evo Technology, flat mount 160/140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra R8000, 11-speed, short cage
Shift Levers
Mechanical shifting
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
Mavic Aksium Disc, disc center-lock, aluminium, 100x12/142x12 mm, 24/24 spokes, 17 mm inner rim width
Tires
Continental Ultra Sport II, 700 x 25C, Folding
Brakes
Brakes
Shimano Ultegra R8070, disc,160 mm/160 mm
Brake Levers
Shimano Ultegra R8020
Cockpit
Stem
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Deluxe, Aluminium, drop: 125mm, reach: 70mm
Seat
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.41 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 579 mm | 590 mm | 597 mm | 617 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 69 mm | 64 mm | 61 mm | 55 mm | 56 mm |
| Stack | 508 mm | 526 mm | 542 mm | 564 mm | 584 mm |
| Reach | 365 mm | 375 mm | 385 mm | 395 mm | 410 mm |
| Top Tube Length | 498 mm | 532 mm | 547 mm | 564 mm | 584 mm |
| Seat Tube Angle | 75.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 973 mm | 979 mm | 990 mm | 997 mm | 1017 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

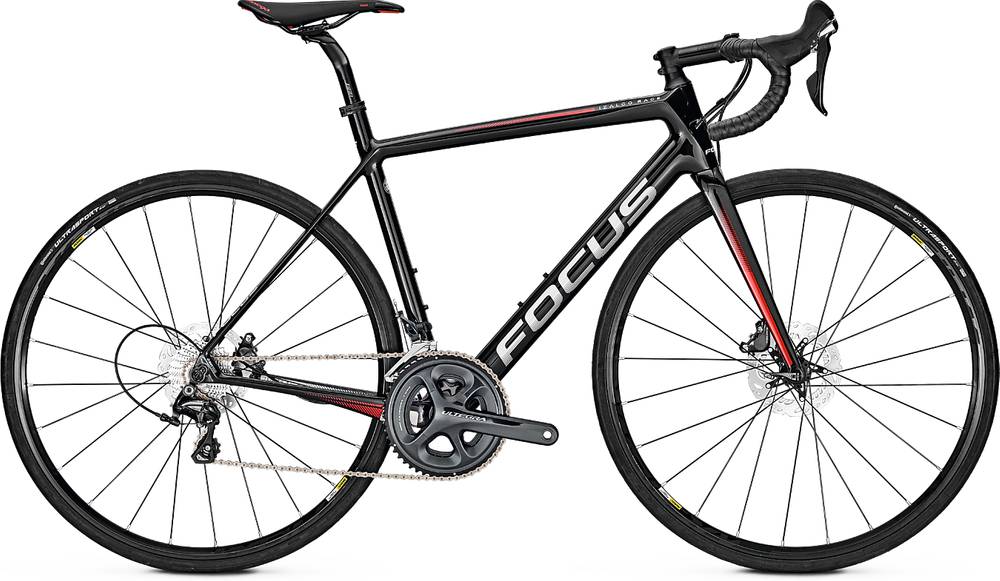

IZALCO RACE Disc Ultegra is part of the Focus Izalco model. There are 61 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The IZALCO RACE Disc Ultegra 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IZALCO RACE Disc Ultegra comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
