Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL, caliper, Pressfit 86 BB, 130 mm quick release dropouts, internal brake cable routing
Suspension Fork
Carbon, caliper, 100 mm quick release
Drivetrain
Rear Derailleur
Shimano Ultegra R8050, Di2, 11-speed, short cage
Shift Levers
Electric shifting
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
Mavic Aksium Elite, quick release, aluminium, 100/130 mm, 20/20 spokes, 17 mm inner rim width
Tires
Continental Ultra Sport II, 700 x 25C, Folding
Brakes
Brakes
Shimano Ultegra R8000, caliper
Brake Levers
Shimano Ultegra R8050, Di2
Cockpit
Stem
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Handlebar
Easton EA50, Aluminium, drop: 125 mm, reach: 80mm
Seat
Seatpost
BBB CPX Plus, Carbon, Di2 Ready, 27,2mm, 350mm, set-back: 20mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.41 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 572 mm | 579 mm | 589 mm | 597 mm | 617 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 70 mm | 64 mm | 61 mm | 55 mm | 55 mm |
| Stack | 508 mm | 526 mm | 542 mm | 564 mm | 583 mm |
| Reach | 365 mm | 375 mm | 385 mm | 395 mm | 410 mm |
| Top Tube Length | 498 mm | 532 mm | 547 mm | 563.5 mm | 584 mm |
| Seat Tube Angle | 75.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm |
| Wheelbase | 965 mm | 972 mm | 982 mm | 990 mm | 1010 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

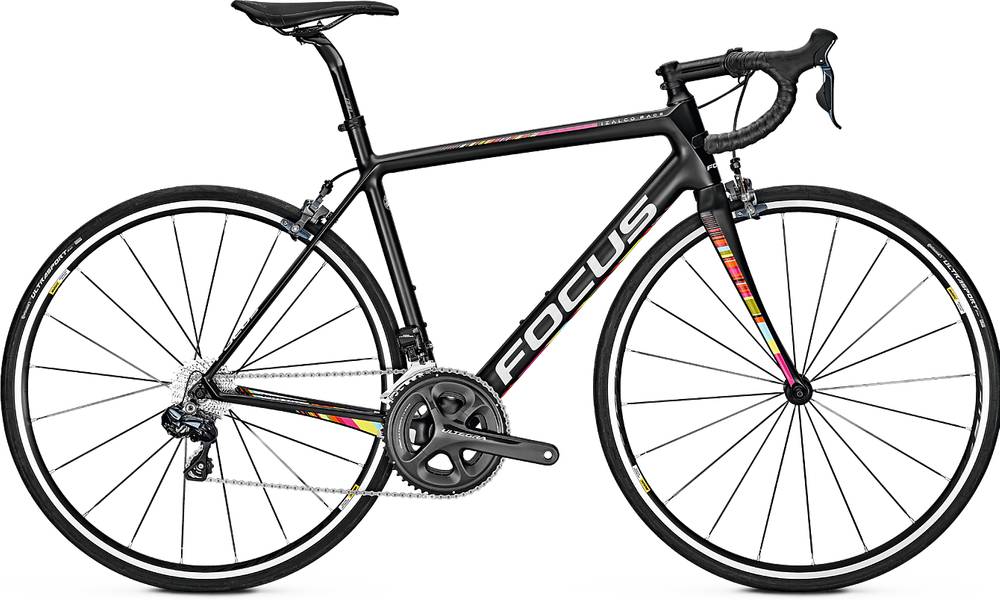

IZALCO RACE Ultegra Di2 is a Focus Izalco model. Focus launched 61 bikes of this model so far. Take a sneak peek at all Focus Izalco bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
IZALCO RACE Ultegra Di2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Focus IZALCO RACE Ultegra Di2 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IZALCO RACE Ultegra Di2 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
