Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 34
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 378 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
Suspension Fork
FOX 34 Rhythm, sweep adjust, 110x15 mm QR, 150 mm travel
Rear Shock
Fox Float DPS Performance, 3-position lever, 210/55 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano XT 8000
Wheels
Rims
Race Face AEFFECT R, 622-30, 148x12 mm / 110x15 mm
Tires
Maxxis Rekon 2.6 3C EXO TR
Brakes
Brakes
Shimano BR-M520, 200 mm / 200 mm
Brake Levers
Shimano BR-MT520
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
KindShock E30i, 31,6mm, internal
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
378 Wh
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.46 mm | 1.45 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 728 mm | 748 mm | 763 mm | 794 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 110 mm | 118 mm | 110 mm |
| Stack | 613 mm | 613 mm | 631 mm | 649 mm |
| Reach | 398 mm | 418 mm | 433 mm | 448 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 640 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° | 74.1 ° | 74.1 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1191 mm | 1211 mm | 1226 mm | 1257 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

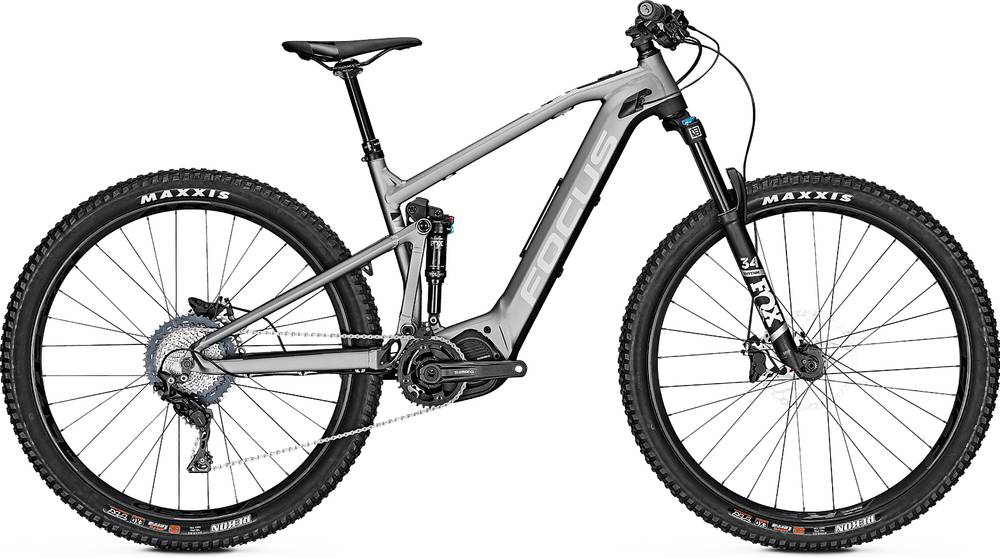

JAM² 6.8 NINE is a Focus E Jam model. 45 e-bikes variations carry this model name so far. You can easily view all of the Focus E Jam e-bikes models from 2019, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
JAM² 6.8 NINE components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Focus JAM² 6.8 NINE e-bike has the Fox Float DPS Performance model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The JAM² 6.8 NINE 2019 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The JAM² 6.8 NINE has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Focus JAM² 6.8 NINE e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Focus JAM² 6.8 NINE includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
