Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 756 Wh (378 Wh internal, 378 Wh external T.E.C. Pack) -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Suspension Fork
Marzocchi Bomber Z1, 3-position lever, 15x110 mm QR
Rear Shock
FOX Float DPS Performance, 3-position lever, 210/55 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
Shimano FC-E8000
Bottom Bracket
-
Chain
Shimano SLX CN-M7100
Wheels
Rims
Mavic E-XA Drifter (29" front / 27,5"+ rear), 622-30 / 584-35, 110x15 mm / 148x12 mm
Tires
Maxxis Minion DHF 2.6 3C Exo TR
Brakes
Brakes
Shimano XT M8120, 4 piston
Brake Levers
Shimano XT M8120, 4 piston
Cockpit
Stem
Race Face Aeffect R 35, 50mm
Handlebar
RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degree
Grips
Race Face Grippler
Headset
Acros AZX-212 AH, 1-1/8", tapered, 44/286-ZS56/40
Seat
Saddle
Proxim W350
Seatpost
Kind Shock E30i, 31,6mm
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
756 Wh (378 Wh internal, 378 Wh external T.E.C. Pack)
Remote
Shimano Steps E7000, black/white LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 726 mm | 746 mm | 761 mm | 792 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 107 mm | 99 mm |
| Stack | 611 mm | 611 mm | 629 mm | 647 mm |
| Reach | 403 mm | 423 mm | 438 mm | 453 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1188 mm | 1208 mm | 1223 mm | 1254 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

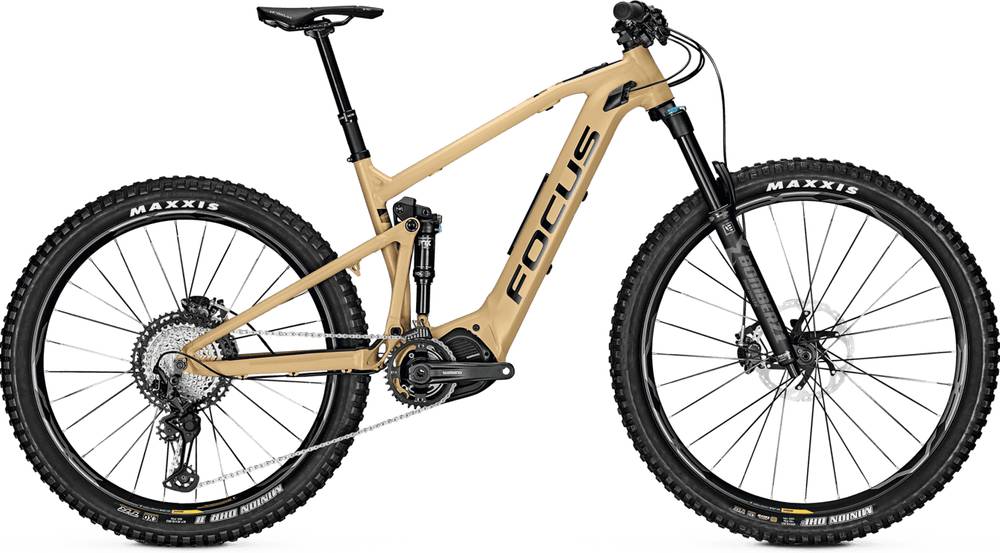

About this model
JAM² 6.9 DRIFTER is a Focus E Jam model. There are 45 e-bikes that carry this model name. Take a sneak peek at all Focus E Jam e-bikes models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
JAM² 6.9 DRIFTER weighs 21.7 kg (47.84 lbs) and is a bit lighter than the average. In short, the average Enduro e-bike weight is 7.93% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Marzocchi Bomber Z1 fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float DPS Performance rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Focus JAM² 6.9 DRIFTER 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The JAM² 6.9 DRIFTER has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Focus JAM² 6.9 DRIFTER e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Focus JAM² 6.9 DRIFTER includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
