Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 756 Wh (378 Wh internal, 378 Wh external T.E.C. Pack) -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Suspension Fork
FOX 36 Factory, 3-position lever, 15x110 mm QR
Rear Shock
FOX Float DPS Factory, 3-position lever, 210/55 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
Shimano Deore XT FC-M8050, Hollowtech II
Bottom Bracket
-
Chain
Shimano SLX CN-M7100
Wheels
Rims
DT Swiss H1900 Drifter (29" front / 27,5"+ rear), 622-30 / 584-35, 110x15 mm / 148x12 mm
Tires
Maxxis Minion DHF 2.6 Dual EXO TR
Brakes
Brakes
Shimano XT M8120, 4 piston
Brake Levers
Shimano XT M8120, 4 piston
Cockpit
Stem
Race Face Turbine R
Handlebar
RaceFace Turbine R 35, aluminium, 800mm, rise: 35mm, backsweep: 8degree
Grips
Race Face Grippler
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seat
Saddle
Proxim W450
Seatpost
FOX Transfer RL Factory, 31,6mm
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
756 Wh (378 Wh internal, 378 Wh external T.E.C. Pack)
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 726 mm | 746 mm | 759 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 117 mm |
| Stack | 611 mm | 611 mm | 629 mm |
| Reach | 403 mm | 423 mm | 438 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1175 mm | 1195 mm | 1208 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

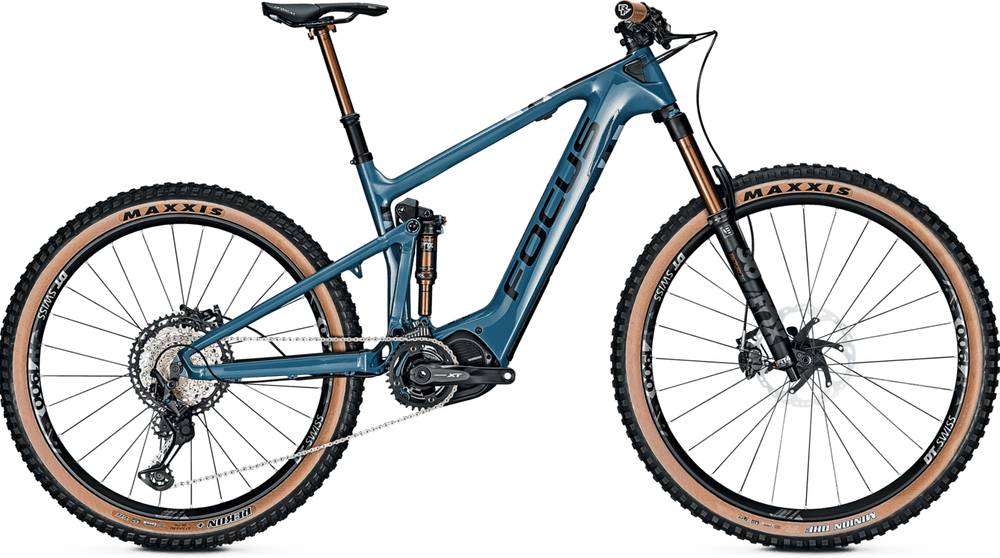

JAM² 9.9 DRIFTER is a Focus E Jam model. There are 45 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Focus JAM² 9.9 DRIFTER it’s weighing 19.9 kg (43.87 lbs). At this weight, is much lighter than average. To sum up, it’s 17.69% lighter than the average weight of Enduro e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Focus JAM² 9.9 DRIFTER e-bike has the FOX Float DPS Factory model installed, and has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the JAM² 9.9 DRIFTER e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The JAM² 9.9 DRIFTER comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the JAM² 9.9 DRIFTER. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
