Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 378 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
Suspension Fork
Fox 34 Float Factory, 3-position remote w/open mode, 15 mm QR, 150 mm travel
Rear Shock
Fox Float DPS Factory, 3-position lever, 210x55 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano XTR 9100, 12-speed
Shift Levers
Shimano XTR 9100, 12-speed
Wheels
Rims
DT Swiss HXC 1200 SPLINE 30
Tires
Maxxis Rekon 2.6 3C EXO TR
Brakes
Brakes
Shimano XTR 9120 (4-piston), 203 mm / 180 mm
Brake Levers
SHIMANOBRM9120
Cockpit
Stem
RaceFace Turbine R, 50 mm
Handlebar
RaceFace Next R 35, carbon, 800mm, rise: 10mm, backsweep: 8degree
Seat
Seatpost
Fox Transfer Factory, 31.6 mm
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
378 Wh
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.46 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Front Center | 728 mm | 748 mm | 763 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 110 mm | 118 mm |
| Stack | 613 mm | 613 mm | 631 mm |
| Reach | 398 mm | 418 mm | 433 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° | 74.1 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1191 mm | 1211 mm | 1226 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

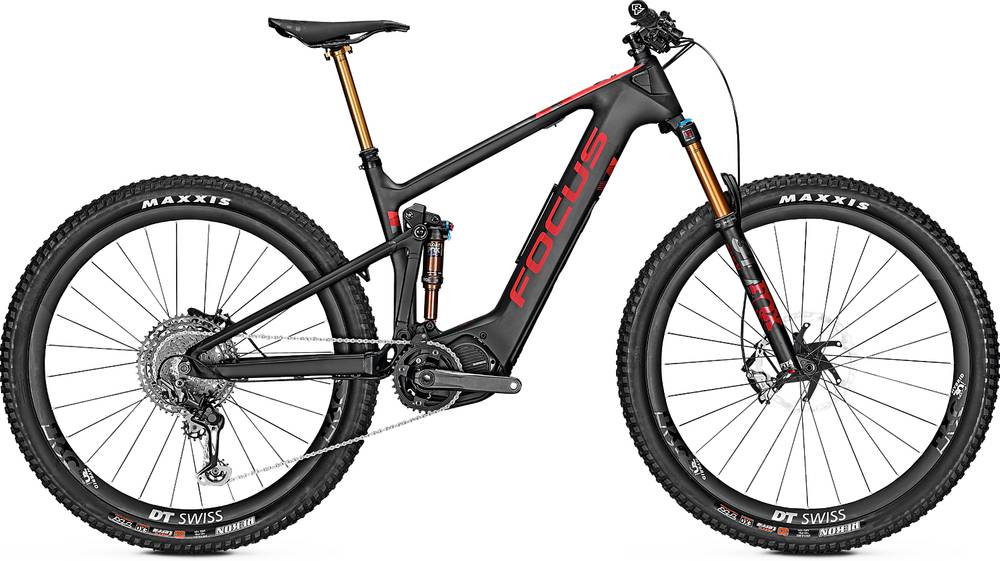

JAM² 9.9 NINE is a Focus E Jam model. Focus released 45 e-bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Focus JAM² 9.9 NINE e-bike has the Fox Float DPS Factory model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the JAM² 9.9 NINE e-bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The JAM² 9.9 NINE comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Focus model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
