Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MAX technology Carbon frame, PF30 BB, 148x12 mm through axle, internal cable routing, Post Mount 180 mm
Suspension Fork
Fox 34 Float Factory, 110x15 mm QR, 150 mm travel
Rear Shock
Fox Float DPX2 Factory, 200/57, hardware: shaft22,2x8 mm/body22,2x8 mm, custom tune
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM X01 Eagle
Bottom Bracket
PF30, press-fit
Wheels
Rims
RaceFace Next R, 584-30, 148x12 mm / 110x15 mm
Tires
Minion DHF 2.5 3C/TR/ EXO, foldable
Brakes
Brakes
SRAM Guide Ultimate, 180 mm / 180 mm
Cockpit
Stem
RaceFace Turbine R, aluminium, 35,0mm
Handlebar
RaceFace Next 35mm, carbon, riserbar, 760mm
Seat
Seatpost
Fox Transfer Factory 31,6mm, internal, 1by remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.39 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 339 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 707 mm | 731 mm | 761 mm | 789 mm |
| Rake | 44 mm | 42 mm | 42 mm | 42 mm |
| Trail | 102 mm | 111 mm | 111 mm | 111 mm |
| Stack | 575 mm | 588 mm | 613 mm | 630 mm |
| Reach | 408 mm | 423 mm | 443 mm | 463 mm |
| Top Tube Length | 569 mm | 591 mm | 616 mm | 641 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.8 ° | 66.3 ° | 66.3 ° | 66.3 ° |
| Head Tube Length | 110 mm | 110 mm | 135 mm | 155 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1125 mm | 1149 mm | 1179 mm | 1207 mm |
| Bottom Bracket Drop | 16 mm | 12 mm | 12 mm | 12 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

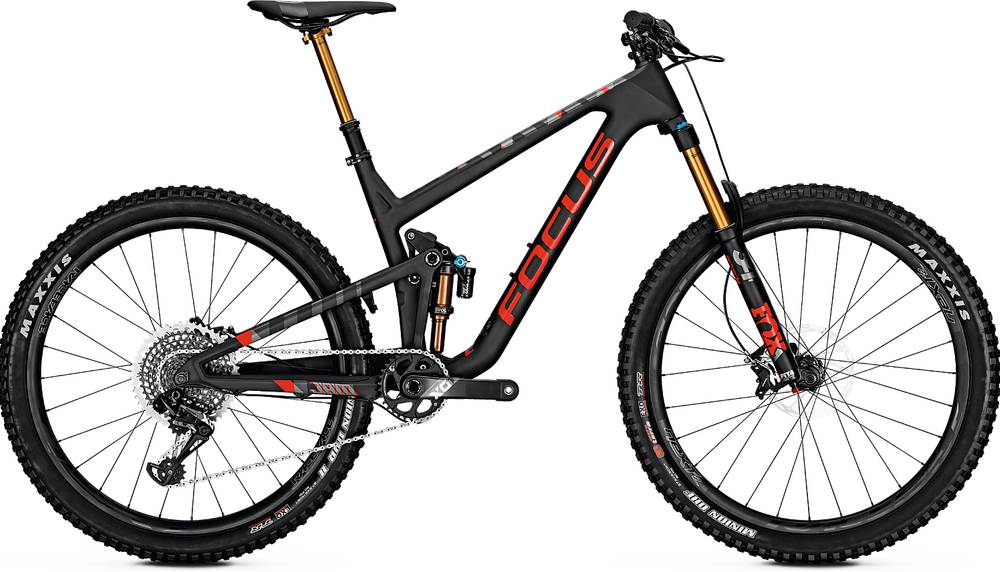

About this model
JAM C SL 27 completes the Focus Jam model. Focus launched 25 bikes of this model so far. You can easily view all of the Focus Jam bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
JAM C SL 27 components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The JAM C SL 27 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus JAM C SL 27 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
JAM C SL 27 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the JAM C SL 27. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
