Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Fork Fox Rhythm Float 34
-
Groupset Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6066 aluminium, BSA BB, 148x12 through axle, internal cable routing, Post Mount 180 mm
Suspension Fork
Fox 34 Rhythm, 110x15 mm QR, 150 mm travel
Rear Shock
Fox Float Performance, 200/57, hardware: shaft22,2x8 mm/body22,2x8 mm, custom tune
Drivetrain
Rear Derailleur
Shimano Deore 6000, 10-speed
Shift Levers
Shimano Deore
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
RaceFace AR30, 584-30, Shimano Deore CL, 148x12 mm / 110x15 mm
Tires
Minion DHF 2.5 3C/TR/ EXO, foldable
Brakes
Brakes
Shimano Deore XT M6000, 180 mm / 180 mm
Cockpit
Stem
BBB, aluminium, 31.8mm
Handlebar
BBB, aluminium, riserbar, 760mm, rise: 20mm, backsweep: 9degree
Seat
Seatpost
KindShock E30i, 31,6mm, internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 702 mm | 727 mm | 757 mm | 785 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 111 mm | 86 mm | 106 mm | 106 mm |
| Stack | 583 mm | 583 mm | 606 mm | 625 mm |
| Reach | 408 mm | 408 mm | 448 mm | 468 mm |
| Top Tube Length | 563 mm | 592 mm | 611.2 mm | 637 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 110 mm | 110 mm | 135 mm | 135 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1120 mm | 1145 mm | 1175 mm | 1203 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

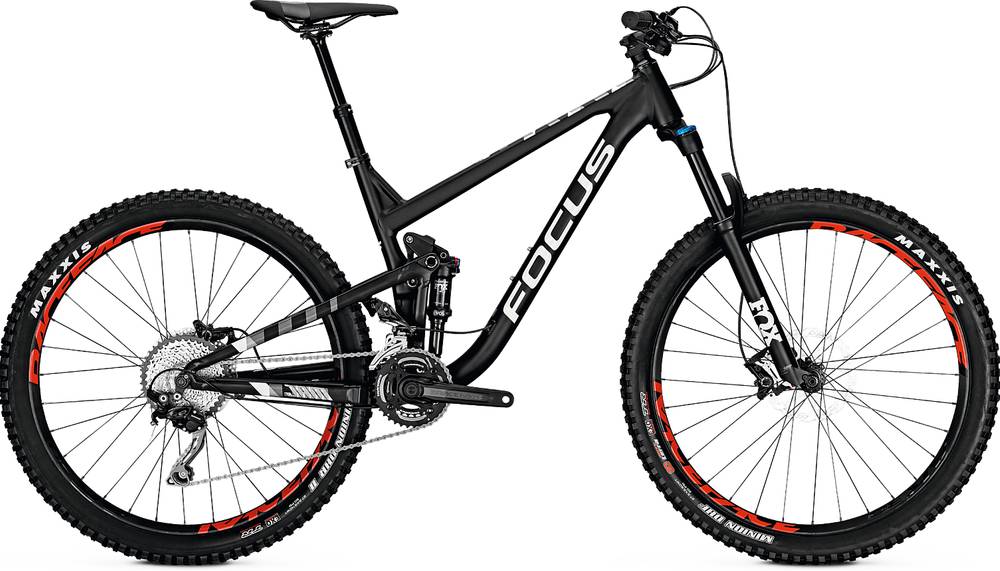

JAM Elite 27 is part of the Focus Jam model. There are 25 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Focus JAM Elite 27 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Focus JAM Elite 27 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Focus model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
