Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 18mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 378 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm through axle, internal cable routing, post mount 180 mm, kickstand mount 18 mm
Suspension Fork
FOX 34 Rhythm, sweep adjust, 110x15 mm QR, 120 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano SLX 7000
Wheels
Rims
DT Swiss H1900, 584-35, 148x12 mm / 110x15 mm
Tires
Schwalbe Nobby Nic 2.8
Brakes
Brakes
Shimano BR-M520, 200 mm / 180 mm
Brake Levers
Shimano BR-MT520
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
KindShock E30i, 31,6mm, internal
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
378 Wh
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.52 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 702 mm | 716 mm | 738 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 91 mm | 92 mm | 92 mm |
| Stack | 619 mm | 628 mm | 647 mm | 665 mm |
| Reach | 403 mm | 413 mm | 428 mm | 443 mm |
| Top Tube Length | 582 mm | 595 mm | 615 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1149 mm | 1163 mm | 1185 mm | 1208 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

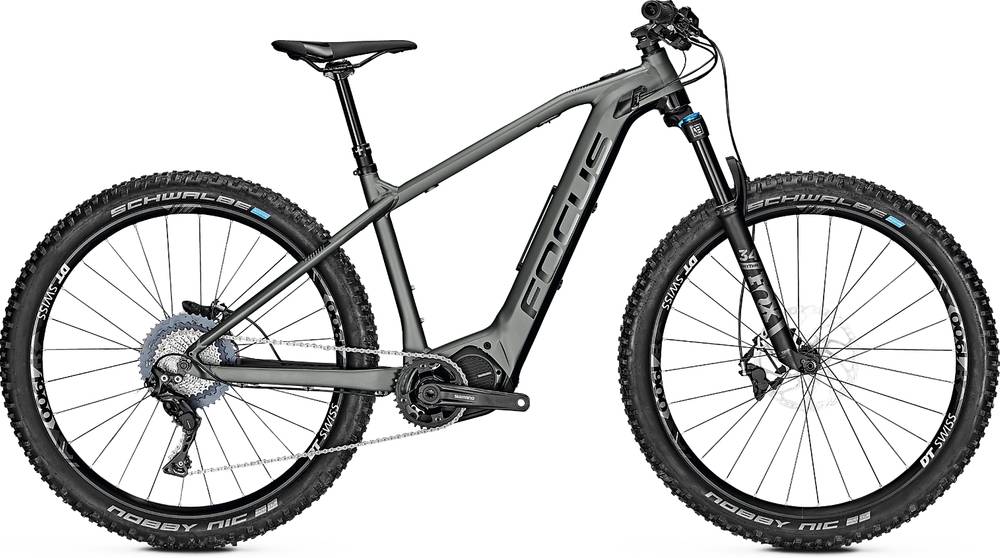

JAM² HT 6.9 PLUS completes the Focus E Jam model. 45 e-bikes variations carry this model name so far. Take a sneak peek at all Focus E Jam e-bikes models from 2019, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
JAM² HT 6.9 PLUS components
Fork
The JAM² HT 6.9 PLUS comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Focus JAM² HT 6.9 PLUS 2019, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus JAM² HT 6.9 PLUS is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Focus JAM² HT 6.9 PLUS e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Focus JAM² HT 6.9 PLUS comes with a dropper post. Therefore, climbing or descending will be a breeze.
