Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 10,5 Ah -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydoformed aluminium, 3D forging, 140 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
Suspension Fork
RockShox Revelation RC, 110x15 mm QR, 140 mm travel
Rear Shock
RockShox Deluxe R, 210/55, hardware: shaft25,0x8 mm/body25,0x8 mm, custom tune [0T ML3 320]
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano SLX 7000
Wheels
Rims
Race Face AR40, 584-40, Novatec, 148x12 mm / 110x15 mm
Tires
Maxxis Rekon+ 2.8
Brakes
Brakes
Shimano Deore M6000, 200 mm / 180 mm
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
KindShock E30i, 31,6mm, internal
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
10,5 Ah
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 739 mm | 746 mm | 759 mm | 792 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 99 mm | -44 mm | 99 mm |
| Stack | 611 mm | 611 mm | 629 mm | 647 mm |
| Reach | 403 mm | 423 mm | 438 mm | 453 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 74.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1188 mm | 1195 mm | 1208 mm | 1241 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

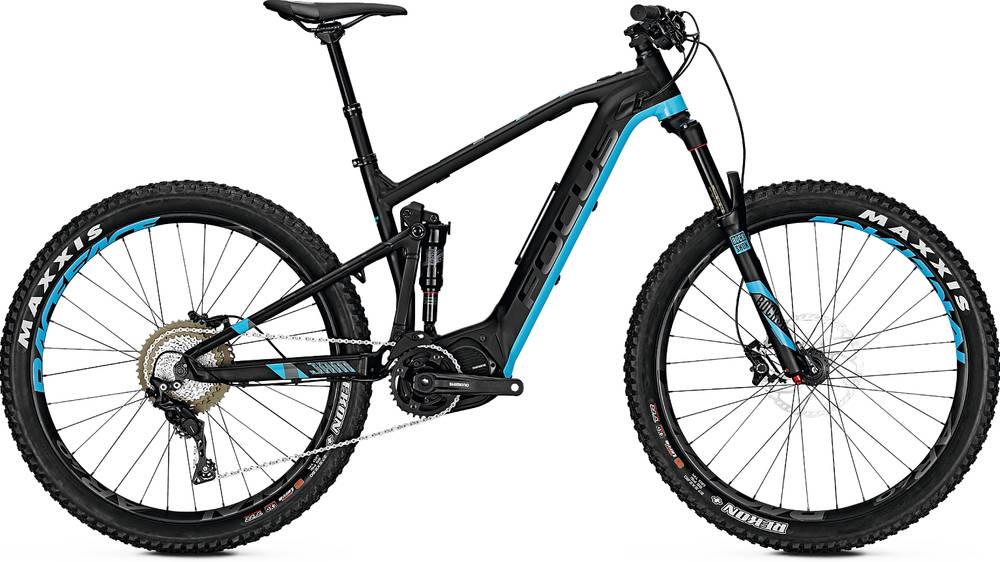

JAM² Plus is a Focus E Jam model. There are 45 e-bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the RockShox Revelation RC fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The JAM² Plus 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus JAM² Plus has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
JAM² Plus comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the JAM² Plus. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
