Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 10,5 Ah -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydoformed aluminium, 3D forging, 140 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
Suspension Fork
RockShox Revelation RC, 110x15 mm QR, 140 mm travel
Rear Shock
RockShox Deluxe RT, 210/55, hardware: shaft25,0x8 mm/body25,0x8 mm, custom tune [0T ML3 320]
Drivetrain
Rear Derailleur
Shimano Deore XT 8050, Di2, 11-speed
Shift Levers
Shimano Deore XT 8050, Di2
Wheels
Rims
DT-Swiss H1700, 584-35, 148x12 mm / 110x15 mm
Tires
Maxxis Rekon+ 2.8
Brakes
Brakes
Shimano Deore XT M8000, 200 mm / 180 mm
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
RockShox Reverb, 31,6mm, internal
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
10,5 Ah
Remote
Shimano Steps E8000, colored LCD display, walk assist, bluetooth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 739 mm | 746 mm | 759 mm | 792 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 99 mm | -44 mm | 99 mm |
| Stack | 611 mm | 611 mm | 629 mm | 647 mm |
| Reach | 403 mm | 423 mm | 438 mm | 453 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 74.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1188 mm | 1195 mm | 1208 mm | 1241 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

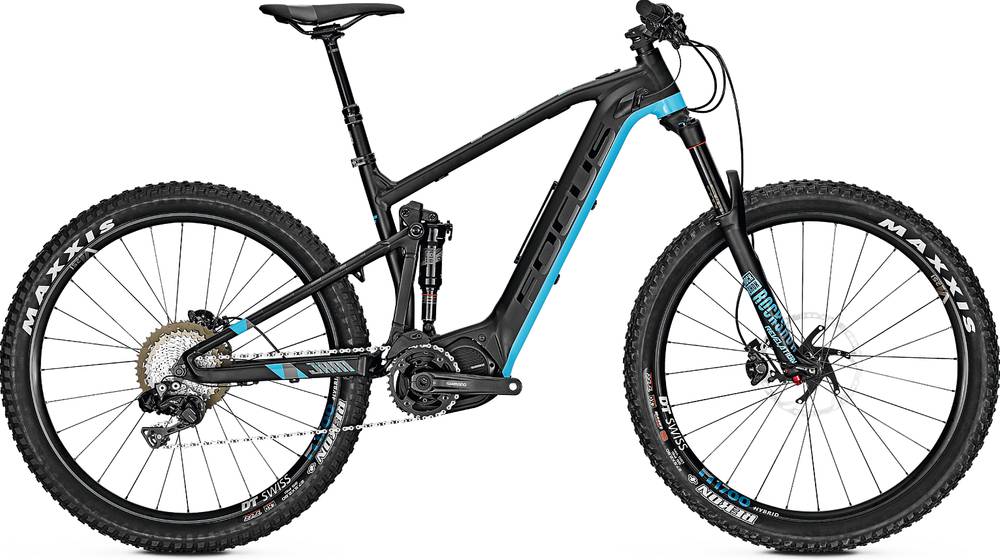

JAM² Plus Pro is part of the Focus E Jam model. 45 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Focus JAM² Plus Pro 2018 e-bike is equipped with the RockShox Revelation RC fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the JAM² Plus Pro e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Focus JAM² Plus Pro e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Focus model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
