Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 34
-
Groupset XT Di2 -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 378 Wh -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
Suspension Fork
FOX 34 Rhythm, sweep adjust, 110x15 mm QR, 150 mm travel
Rear Shock
Fox Float DPS Performance, 3-position lever, 210/55 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano Deore XT 8050, Di2, 11-speed
Shift Levers
Shimano Deore XT 8050, Di2
Crank
FC-E8050-34T Hollow
Wheels
Rims
Race Face AEFFECT PLUS, 584-40, 148x12 mm / 110x15 mm
Tires
Maxxis Rekon 2.8 3C EXO TR
Brakes
Brakes
Shimano Deore XT 8020, 200mm / 200 mm
Brake Levers
Shimano Deore XT M8000
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
Fox Transfer Performance, 31.6 mm
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
378 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.46 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm |
| Front Center | 728 mm | 748 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 102 mm | 112 mm |
| Stack | 613 mm | 613 mm | 631 mm |
| Reach | 398 mm | 418 mm | 433 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° | 74.1 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1178 mm | 1198 mm | 1211 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

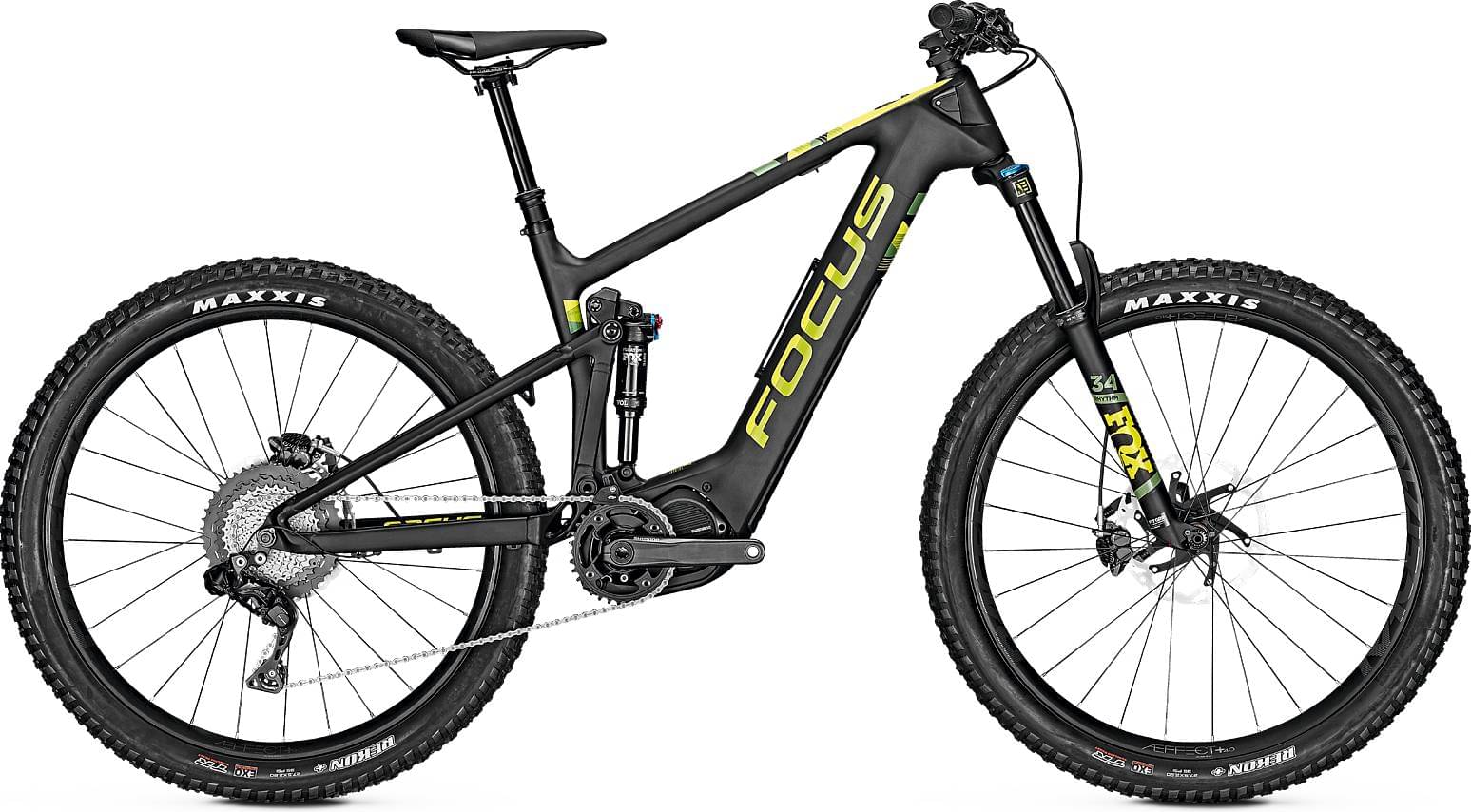

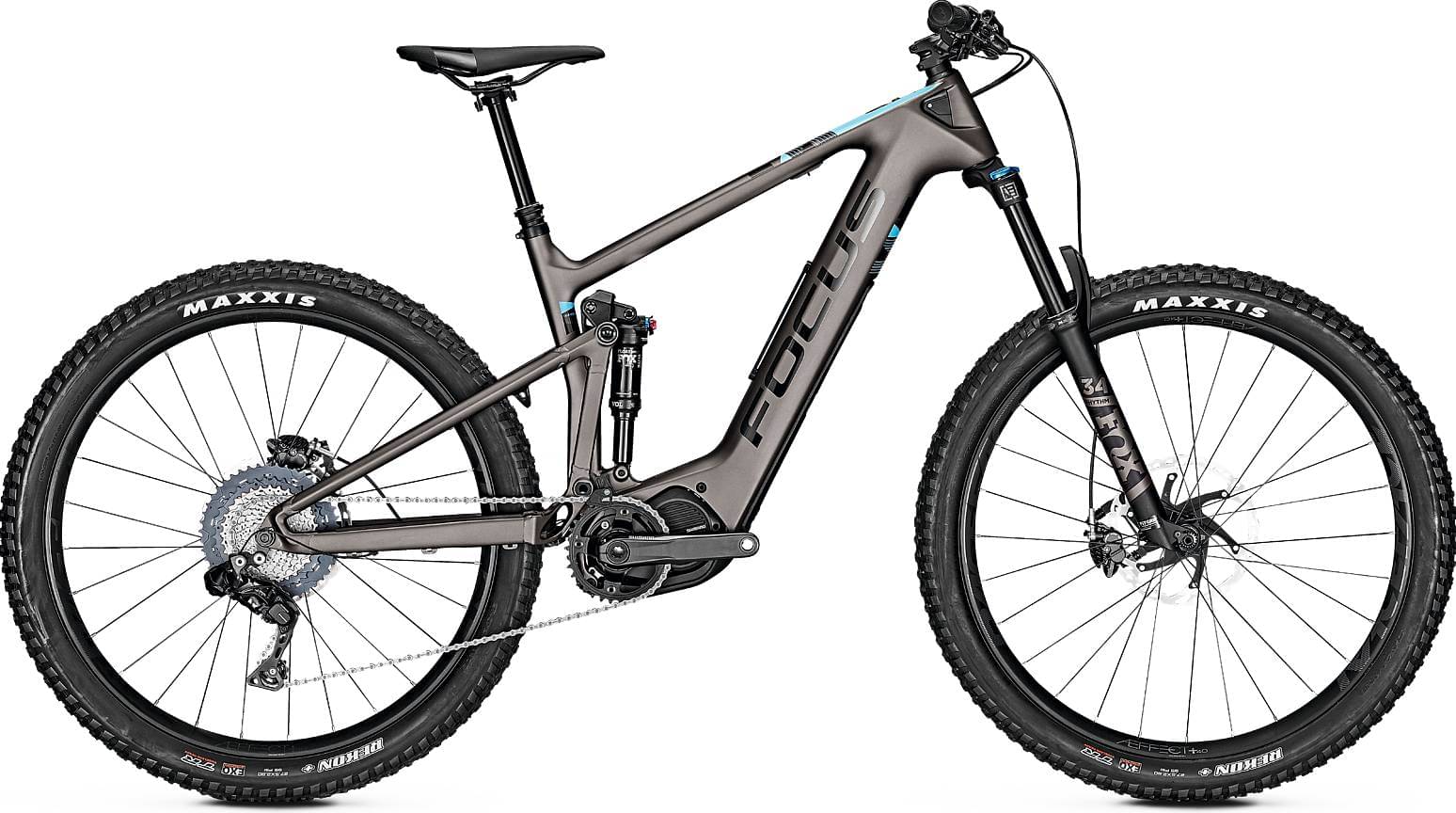

JAM² 9.7 PLUS is a Focus E Jam2 model. 54 e-bikes variations carry this model name so far. You can easily view all of the Focus E Jam2 e-bikes models from 2019, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Focus JAM² 9.7 PLUS e-bike has the Fox Float DPS Performance model installed, and has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the JAM² 9.7 PLUS e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The JAM² 9.7 PLUS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Focus JAM² 9.7 PLUS e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
