Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 756 Wh (378 Wh internal, 378 Wh external T.E.C. Pack) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mm
Suspension Fork
FOX 36 Factory, 3-position lever, 15x110 mm QR
Rear Shock
FOX Float DPS Factory, 3-position lever, 210/55 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
Shimano Deore XT FC-M8050, Hollowtech II
Bottom Bracket
-
Chain
Shimano SLX CN-M7100
Wheels
Rims
DT Swiss H1900 Drifter (29" front / 27,5"+ rear), 622-30 / 584-35, 110x15 mm / 148x12 mm
Tires
Maxxis Minion DHF 2.6 Dual EXO TR
Brakes
Brakes
Shimano XT M8120, 4 piston
Brake Levers
Shimano XT M8120, 4 piston
Cockpit
Stem
Race Face Turbine R
Handlebar
RaceFace Turbine R 35, aluminium, 800mm, rise: 35mm, backsweep: 8degree
Grips
Race Face Grippler
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seat
Saddle
Proxim W450
Seatpost
FOX Transfer RL Factory, 31,6mm
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
756 Wh (378 Wh internal, 378 Wh external T.E.C. Pack)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm |
| Front Center | 726 mm | 746 mm | 759 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 117 mm |
| Stack | 611 mm | 611 mm | 629 mm |
| Reach | 403 mm | 423 mm | 438 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1175 mm | 1195 mm | 1208 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

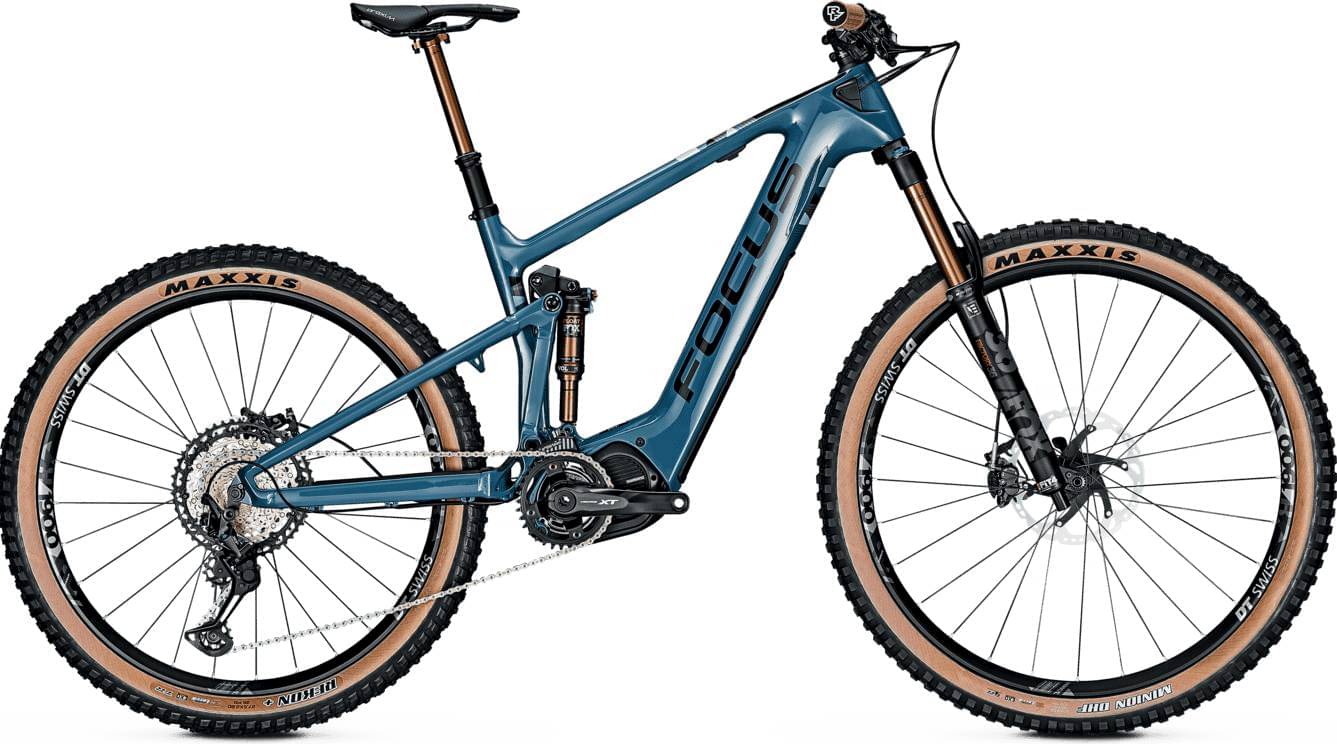

JAM² 9.9 DRIFTER completes the Focus E Jam2 model. There are 54 e-bikes that carry this model name. You can easily view all of the Focus E Jam2 e-bikes models from 2020, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, JAM² 9.9 DRIFTER has a weight of 19.9 kg (43.87 lbs). In short, the average Enduro e-bike weight is 17.69% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The JAM² 9.9 DRIFTER has a rear shock with a travel of 150mm. The model FOX Float DPS Factory is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Focus JAM² 9.9 DRIFTER 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The JAM² 9.9 DRIFTER comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Focus JAM² 9.9 DRIFTER e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the JAM² 9.9 DRIFTER. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
