Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery 378 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front triangle, 7005 aluminium rear triangle, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm through axle, internal cable routing, post mount 180 mm
Suspension Fork
Fox 34 Float Factory, 3-position remote w/open mode, 15 mm QR, 150 mm travel
Rear Shock
Fox Float DPS Factory, 3-position lever, 210x55 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano XTR 9100, 12-speed
Shift Levers
Shimano XTR 9100, 12-speed
Crank
FC-E8050-34T Hollow
Wheels
Rims
DT Swiss HXC 1200 SPLINE 30
Tires
Maxxis Rekon 2.6 3C EXO TR
Brakes
Brakes
Shimano XTR 9120 (4-piston), 203 mm / 180 mm
Brake Levers
SHIMANOBRM9120
Cockpit
Stem
RaceFace Turbine R, 50 mm
Handlebar
RaceFace Next R 35, carbon, 800mm, rise: 10mm, backsweep: 8degree
Seat
Seatpost
Fox Transfer Factory, 31.6 mm
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
378 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.46 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Front Center | 728 mm | 748 mm | 763 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 110 mm | 118 mm |
| Stack | 613 mm | 613 mm | 631 mm |
| Reach | 398 mm | 418 mm | 433 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° | 74.1 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1191 mm | 1211 mm | 1226 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

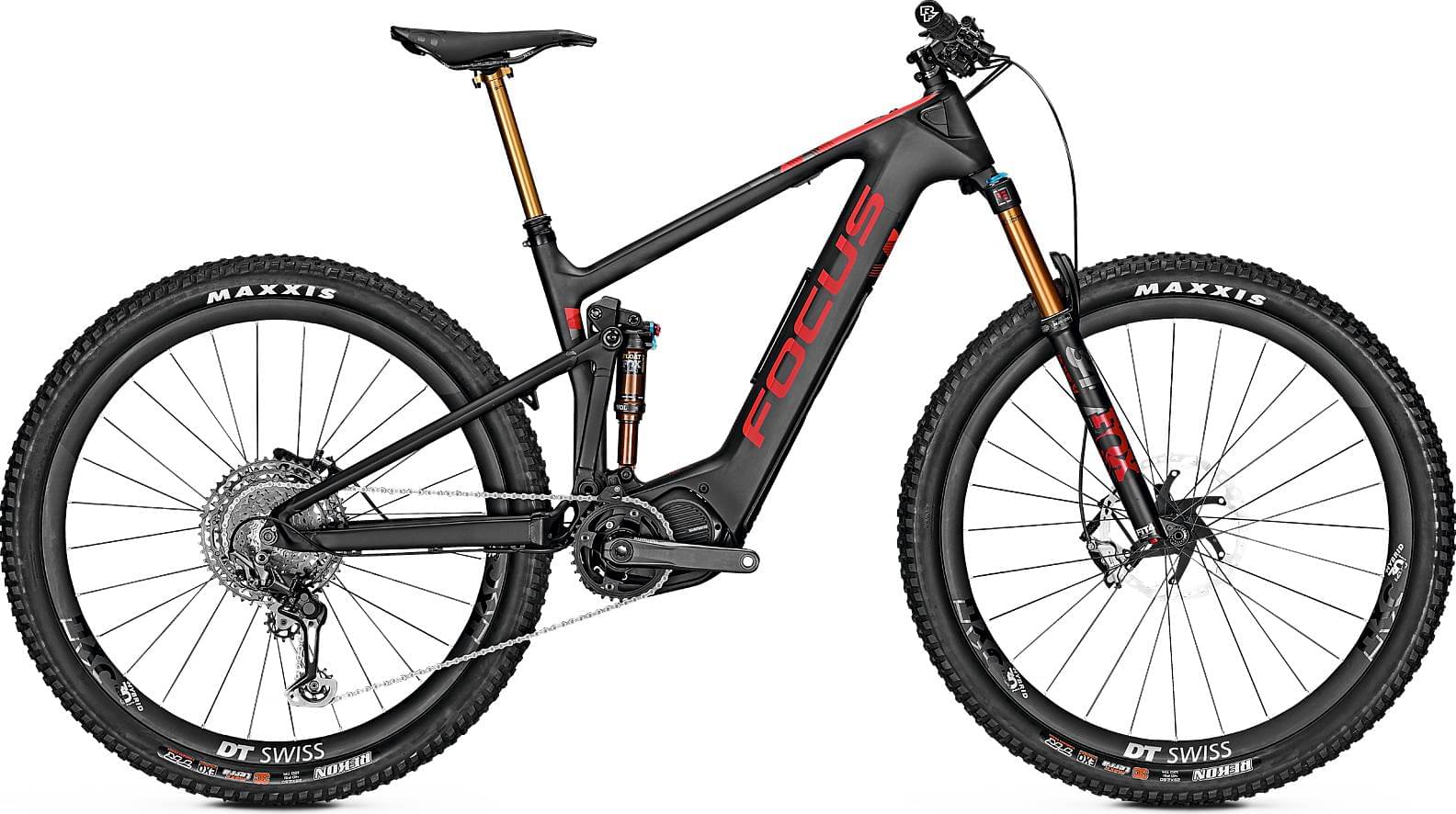

JAM² 9.9 NINE completes the Focus E Jam2 model. Focus launched 54 e-bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPS Factory rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the JAM² 9.9 NINE e-bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The JAM² 9.9 NINE has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
JAM² 9.9 NINE comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
