Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery 378 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm through axle, internal cable routing, post mount 180 mm, kickstand mount 18 mm
Suspension Fork
FOX 34 Rhythm, sweep adjust, 110x15 mm QR, 120 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano SLX 7000
Crank
FC-E8000-34T
Wheels
Rims
DT Swiss H1900, 622-30, 148x12 mm / 110x15 mm
Tires
Schwalbe Nobby Nic 2.35,Schwalbe Nobby Nic 2.8
Brakes
Brakes
Shimano BR-M520, 200 mm / 180 mm
Brake Levers
Shimano BR-MT520
Cockpit
Stem
BBB, aluminium, Di2, 31.8 mm, 55 mm
Handlebar
BBB, aluminium, Di2, flatbar, 760mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
KindShock E30i, 31,6mm, internal
Motor & Battery
Motor
Shimano Steps E8000, 70 Nm, 250 W
Battery
378 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.52 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 702 mm | 716 mm | 738 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 99 mm | 100 mm | 100 mm |
| Stack | 619 mm | 628 mm | 647 mm | 665 mm |
| Reach | 403 mm | 413 mm | 428 mm | 443 mm |
| Top Tube Length | 582 mm | 595 mm | 615 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1149 mm | 1163 mm | 1185 mm | 1208 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

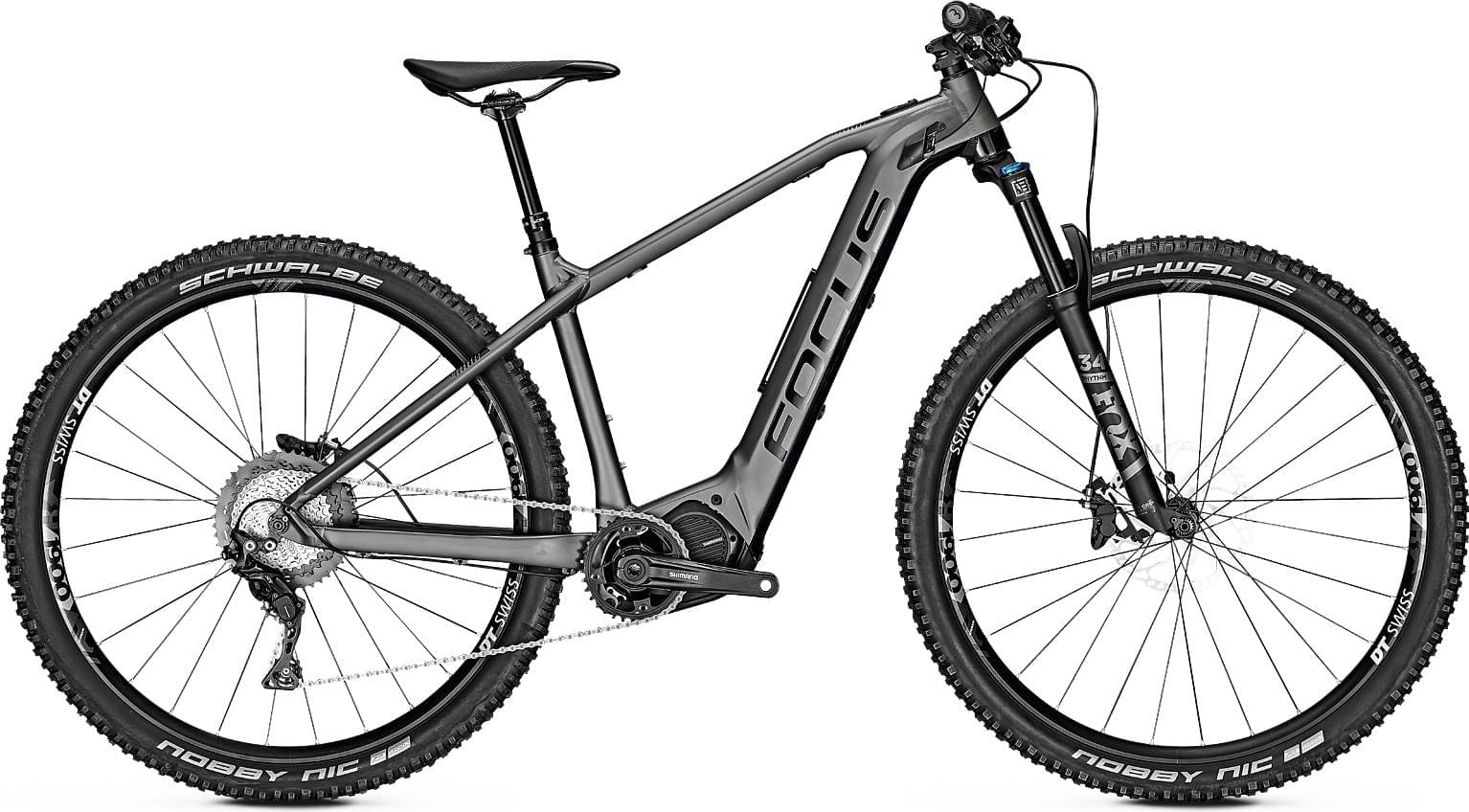

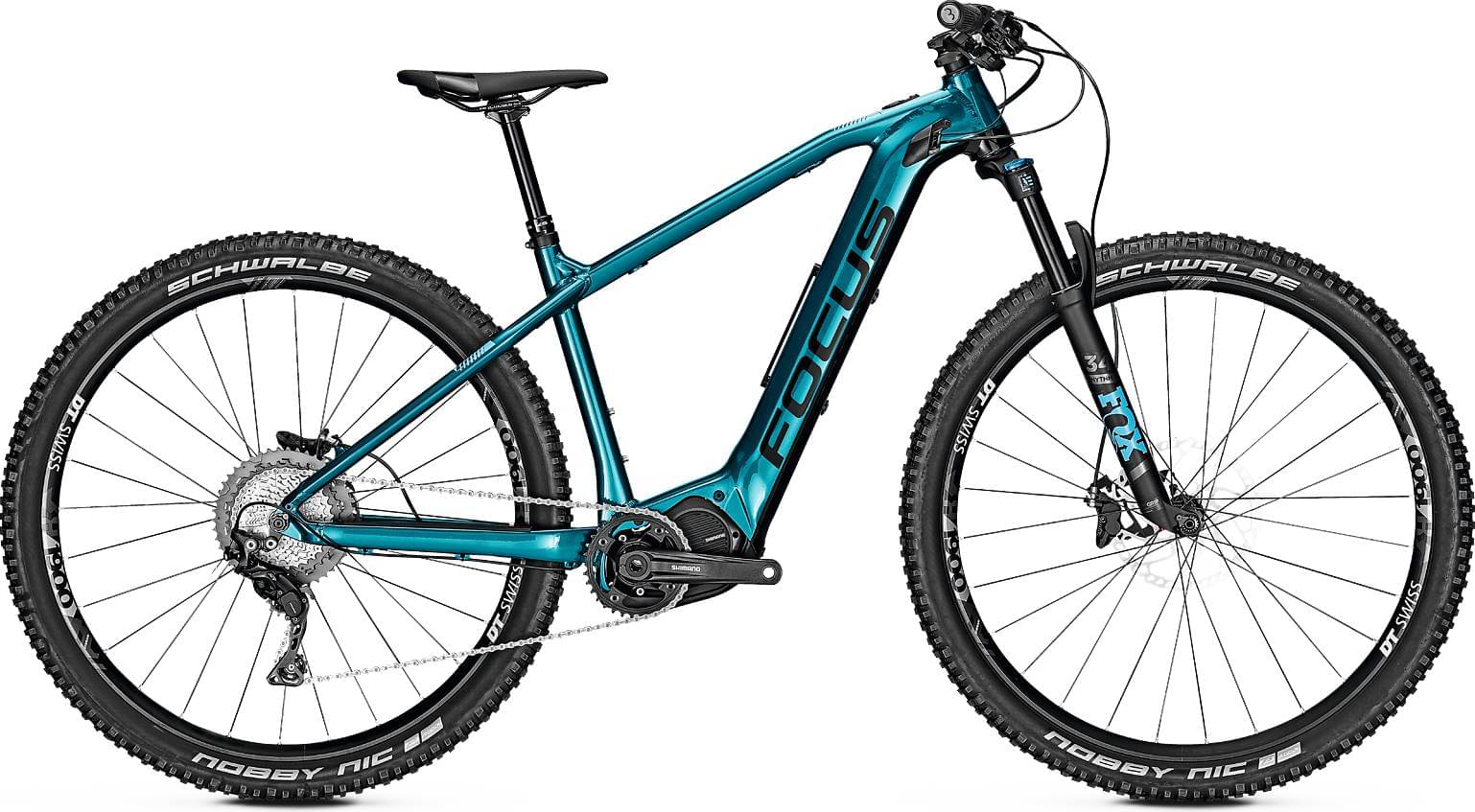

JAM² HT 6.9 NINE is a Focus E Jam2 model. 54 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
JAM² HT 6.9 NINE components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the JAM² HT 6.9 NINE e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus JAM² HT 6.9 NINE has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Focus JAM² HT 6.9 NINE comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
