Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery 400 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, 148x12 mm through axle, internal cable routing, post mount 180 mm
Suspension Fork
SR Suntour XCM RL DS, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore 592, 9-speed
Shift Levers
Shimano SL-M200
Wheels
Rims
Rodi Viper 21, 29" 622-21, Shimano TX-505 CL, 9 mm QR / 9 mm QR
Tires
Schwalbe Rapid Rob 2.25
Brakes
Brakes
Shimano BR-MT200, 180 mm / 160 mm
Brake Levers
Shimano MT200
Cockpit
Stem
aluminium, 31.8mm
Handlebar
Sport Riser, aluminium, risebar, 700mm, rise: 20mm
Seat
Seatpost
Sport components SP-DC1, 31,6x350 mm
Motor & Battery
Motor
Bosch Performance Line CX, 36 V / 250 W
Battery
400 Wh
Remote
Bosch Purion, LCD display with walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.568 mm | 1.549 mm | 0.647 mm | 1.535 mm | 1.543 mm |
| Bottom Bracket Height | 326 mm | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 645 mm | 648 mm | 659 mm | 680 mm | 697 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 89 mm | 229 mm | 89 mm | 89 mm |
| Stack | 602 mm | 615 mm | 404 mm | 643 mm | 662 mm |
| Reach | 384 mm | 397 mm | 624 mm | 419 mm | 429 mm |
| Top Tube Length | 563 mm | 573 mm | 583 mm | 604 mm | 619 mm |
| Seat Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 470 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1111 mm | 1126 mm | 1137 mm | 1158 mm | 1175 mm |
| Bottom Bracket Drop | 48 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

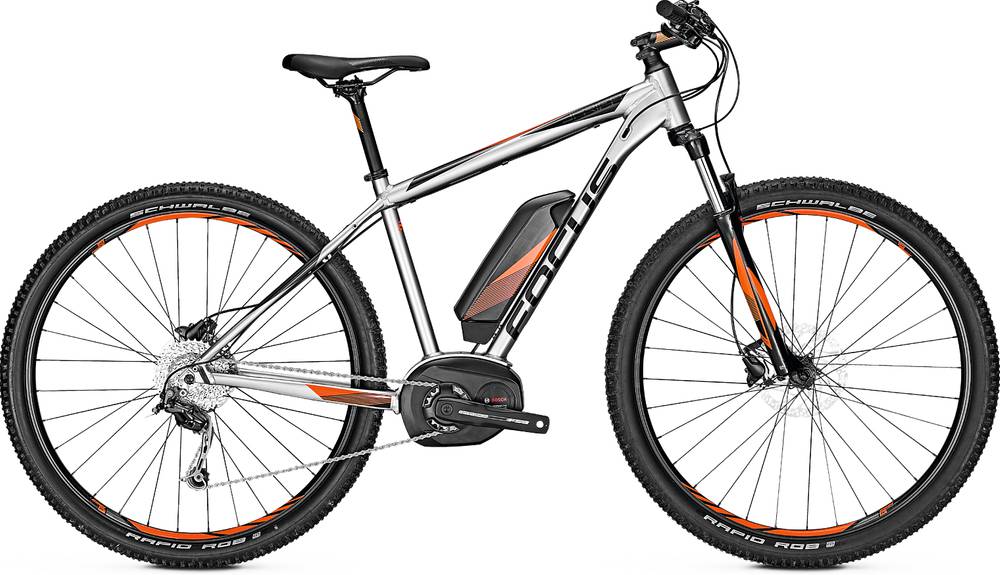

JARIFA² 3.9 is part of the Focus E Jarifa model. Focus released 47 e-bikes variations of this model so far. Take a sneak peek at all Focus E Jarifa e-bikes models from 2019, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the JARIFA² 3.9 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The JARIFA² 3.9 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
