Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor 250W 80Nm mid-drive -
Battery 17 Ah -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, 142x12 mm through axle, internal cable routing, post mount 160 mm
Suspension Fork
SR Suntour XCR AIR RL-R, remote, 9 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore 6000, 10-speed
Shift Levers
Shimano Deore M6000
Wheels
Rims
Rodi Ready 27, 622-27, Shimano Deore, 148x12 mm / 110x15 mm
Tires
Continental Race King 2.2 SL
Brakes
Brakes
Shimano M315, 180 mm / 160 mm
Cockpit
Stem
aluminium, 31,8 mm, 90 mm
Handlebar
BBB Flat, 720mm, 9D BS
Seat
Seatpost
JD low dropper YSP 15, 31.6 mm, internal
Motor & Battery
Motor
Impulse Evo RS, 80 Nm, 250 W
Battery
17 Ah
Remote
Dayton
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.58 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 651 mm | 665 mm | 682 mm | 700 |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 88 mm | 89 mm | 89 mm |
| Stack | 628 mm | 637 mm | 647 mm | 666 mm |
| Reach | 392 mm | 402 mm | 416 mm | 427 mm |
| Top Tube Length | 573 mm | 586 mm | 603 mm | 619 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1110 mm | 1124 mm | 1141 mm | 1159 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

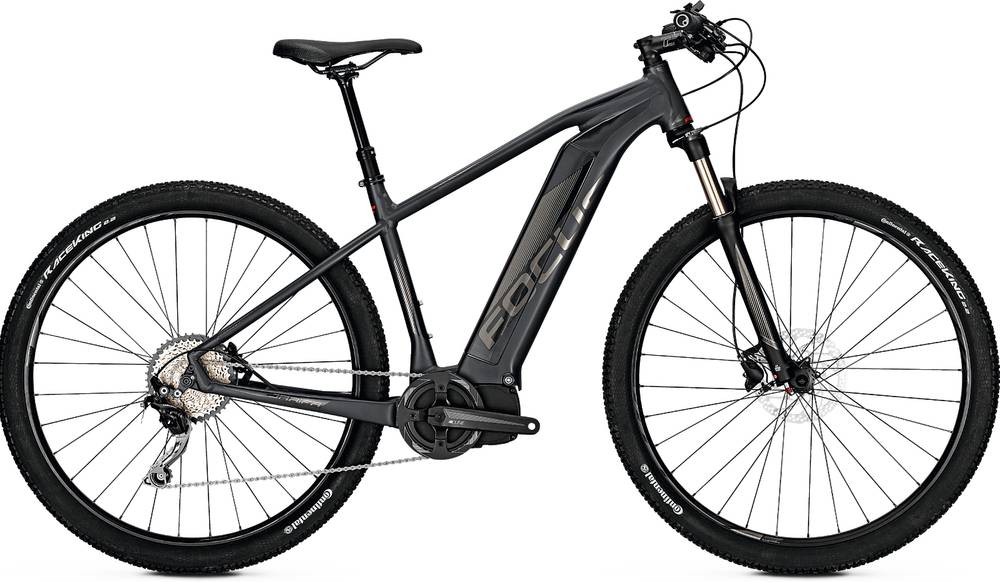

JARIFA² i29 completes the Focus E Jarifa model. Focus released 47 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The SunTour XCR Air is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on JARIFA² i29 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus JARIFA² i29 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the JARIFA² i29. Therefore, climbing or descending will be a breeze.
