Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Apex, Apex 1 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, disc, PF30 BB, 142x12 mm thru axle, R.A.T Evo technology, flat mount 140 mm, internal cable routing
Suspension Fork
Carbon, disc, 100x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/160 mm, internal cable routing
Drivetrain
Rear Derailleur
SRAM Apex
Shift Levers
SRAM Apex 1x
Cassette
SRAM PG-1130
Crank
SRAM Apex 1, 42T
Bottom Bracket
SRAM PressFit 30
Chain
SRAM PC-1130
Wheels
Rims
Alex Rims CXD-6, disc center-lock,aluminium, 100x12/142x12 mm, 24/24 spokes, 17 mm inner rim width
Tires
Vittoria Terreno Mix, 700 x 33C, Folding
Brakes
Brakes
SRAM Apex hydraulic disc, 160 / 160 mm
Brake Levers
SRAM Apex 1 HRD
Cockpit
Stem
BBB Basic, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Basic, aluminium, drop: 125 mm, reach: 70mm
Grips
FOCUS Bartape SL
Headset
IS 42/286 - IS47/33
Seat
Saddle
Prologo Scratch
Seatpost
BBB Deluxe, Aluminium, 27,2mm, 350mm, set-back 20mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 587 mm | 599 mm | 604 mm | 610 mm | 620 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 76 mm | 74 mm | 72 mm | 72 mm | 66 mm |
| Stack | 521 mm | 531 mm | 542 mm | 554 mm | 563 mm | 574 mm |
| Reach | 362 mm | 370 mm | 377 mm | 385 mm | 392 mm | 400 mm |
| Top Tube Length | 518 mm | 529 mm | 539 mm | 550 mm | 560 mm | 572 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 1010 mm | 1015 mm | 1022 mm | 1032 mm | 1040 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

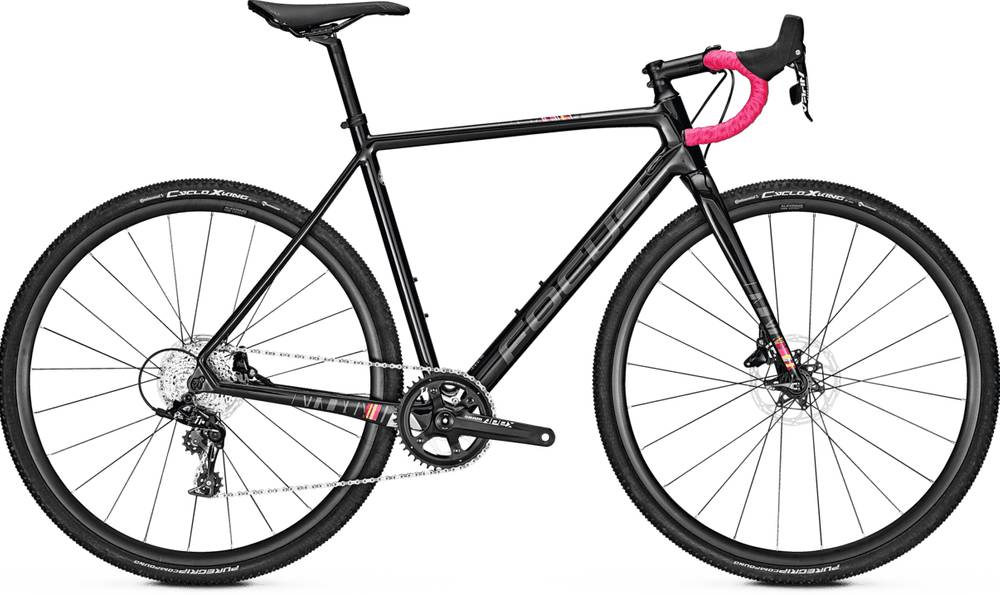

MARES 9.7 completes the Focus Mares model. Focus released 21 bikes variations of this model so far. You can easily view all of the Focus Mares bikes models from 2020, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Cyclocross bikes
Cyclocross bikes weigh an average of 8.79 kg (19.38 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, MARES 9.7 has a weight of 8.6 kg (18.96 lbs). In short, the average Cyclocross bike weight is 2.21% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
MARES 9.7 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the MARES 9.7 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus MARES 9.7 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
MARES 9.7 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
