Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, disc, PF30 BB, 142x12 mm thru axle, R.A.T Evo technology, flat mount 140 mm, internal cable routing
Suspension Fork
Carbon, disc, 100x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/160 mm, internal cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra R8000
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8020
Cassette
Shimano Ultegra R8000
Crank
Shimano Ultegra R8000, 46/36T
Bottom Bracket
Token PF30
Chain
Shimano CN-HG701
Wheels
Rims
Novatec N30, disc center-lock, aluminium, 100x12 / 142x12 mm, 20 mm inner rim width
Tires
Vittoria Terreno Mix, 700 x 33C, Folding
Brakes
Brakes
Shimano Ultegra R8020 hydraulic disc, 160 / 160 mm
Brake Levers
Shimano Ultegra R8020
Cockpit
Stem
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Deluxe, aluminium, drop: 125mm, reach: 70mm
Grips
FOCUS Bartape SL
Headset
IS 42/286 - IS47/33
Seat
Saddle
Prologo Scratch
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 587 mm | 599 mm | 604 mm | 610 mm | 620 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 76 mm | 74 mm | 72 mm | 72 mm | 66 mm |
| Stack | 521 mm | 531 mm | 542 mm | 554 mm | 563 mm | 574 mm |
| Reach | 362 mm | 370 mm | 377 mm | 385 mm | 392 mm | 400 mm |
| Top Tube Length | 518 mm | 529 mm | 539 mm | 550 mm | 560 mm | 572 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 1010 mm | 1015 mm | 1022 mm | 1032 mm | 1040 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

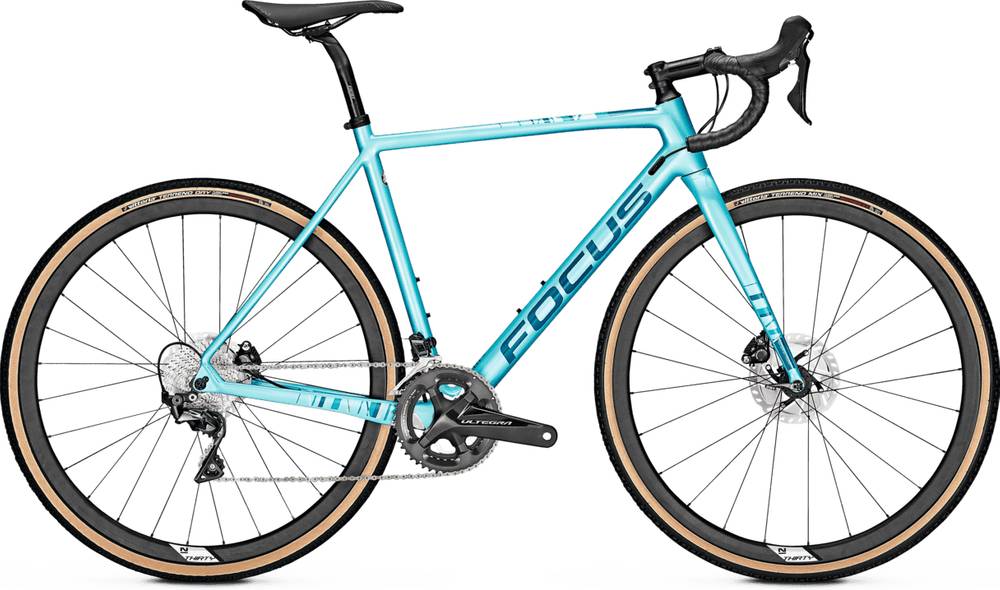

MARES 9.8 is part of the Focus Mares model. There are 21 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Cyclocross bikes average weight
The average weight for Cyclocross bikes is 8.79 kg (19.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
MARES 9.8 weighs 8.9 kg (19.62 lbs) and is slightly heavier than the average. In short, the average Cyclocross bike weight is 1.25% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
MARES 9.8 components
Fork material
MARES 9.8 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The MARES 9.8 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
