Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force, Force 1 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon, disc, PF30 BB, 142x12 mm thru axle, R.A.T Evo technology, flat mount 140 mm, internal cable routing
Suspension Fork
Carbon, disc, 100x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/160 mm, internal cable routing
Drivetrain
Rear Derailleur
SRAM Force
Shift Levers
SRAM Force 1x
Cassette
SRAM PG-1170
Crank
SRAM Force 1, 42T
Bottom Bracket
SRAM PressFit 30
Chain
SRAM PC-1170
Wheels
Rims
DT Swiss C1800 SPLINE DB
Tires
Vittoria Terreno Mix, 700 x 33C, Folding
Brakes
Brakes
SRAM Force hydraulic disc, 160 / 160 mm
Brake Levers
SRAM Force 1 HRD
Cockpit
Stem
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Deluxe, aluminium, drop: 125mm, reach: 70mm
Grips
FOCUS Bartape SL
Headset
IS 42/286 - IS47/33
Seat
Saddle
Prologo Scratch
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm | 1.44 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 587 mm | 599 mm | 604 mm | 610 mm | 620 mm | 628 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 77 mm | 75 mm | 72 mm | 72 mm | 67 mm |
| Stack | 522 mm | 532 mm | 543 mm | 554 mm | 564 mm | 575 mm |
| Reach | 360 mm | 370 mm | 377 mm | 385 mm | 392 mm | 400 mm |
| Top Tube Length | 518 mm | 529 mm | 539 mm | 550 mm | 560 mm | 572 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 998 mm | 1010 mm | 1015 mm | 1022 mm | 1032 mm | 1040 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

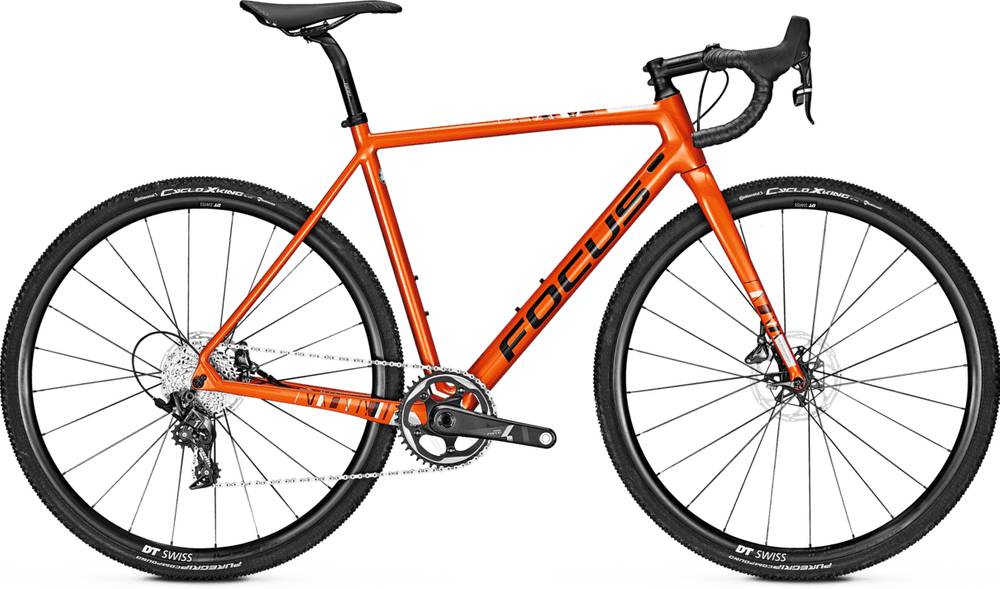

MARES 9.9 belongs to the Focus Mares model. Focus released 21 bikes variations of this model so far. Take a sneak peek at all Focus Mares bikes models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Cyclocross bikes
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Cyclocross bikes average weight
Cyclocross bikes have an average weight of 8.79 kg (19.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Focus MARES 9.9 it’s weighing 7.95 kg (17.53 lbs). At this weight, is considerably lighter than average. In conclusion, the average Cyclocross bike weighs 10.57% more than MARES 9.9.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the MARES 9.9 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
MARES 9.9 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
