Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 38mm -
Fork Fox Rhythm Float 32
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon frame, F.O.L.D. kinematic, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Suspension Fork
FOX 32 Rhythm, sweep adjust, 110x15 mm QR, 120 mm travel
Rear Shock
FOX Float DPS Performance, 3-position lever, 165/38 mm, hardware: 22,2 x 8mm, custom tune
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230 Eagle, 12-speed
Crank
Truvativ Stylo 6K
Bottom Bracket
SRAM DUB
Chain
SRAM NX Eagle
Wheels
Rims
DT Swiss M1900, 622-25, 15x110 MM / 12x148 MM
Tires
Schwalbe Nobby Nic Performance Addix 2.35
Brakes
Brakes
SRAM Level TL
Brake Levers
SRAM LEVEL TL
Cockpit
Stem
BBB Jumper BHS-138, 31.8 mm
Handlebar
Aluminium, riserbar, 760mm
Grips
FOCUS Locker SL
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seat
Saddle
FOCUS Race SL
Seatpost
BBB Deluxe, Aluminium, 31,6mm, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 693 mm | 712 mm | 733 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 93 mm |
| Stack | 609 mm | 616 mm | 633 mm |
| Reach | 415 mm | 431 mm | 446 mm |
| Top Tube Length | 594 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 422 mm | 445.8 mm | 482.2 mm |
| Head Tube Angle | 68.4 ° | 68.4 ° | 68.4 ° |
| Head Tube Length | 100 mm | 112 mm | 125 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1144 mm | 1163 mm | 1184 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

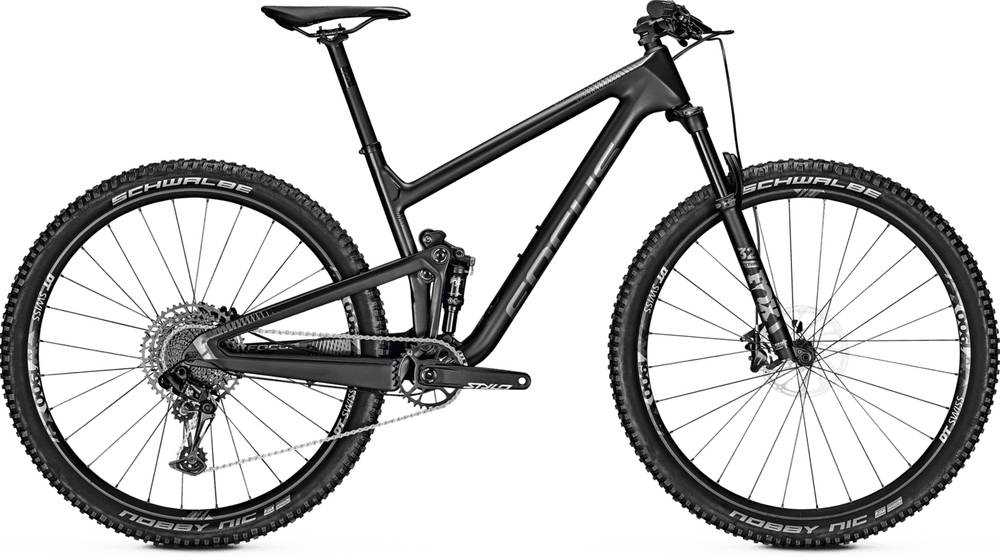

O1E 8.7 is a Focus O1e model. There are 8 bikes that carry this model name. You can easily view all of the Focus O1e bikes models from 2020, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Focus O1E 8.7 it’s weighing 12.6 kg (27.78 lbs). At this weight, is slightly heavier than average. In short, the average Crosscountry bike weight is 1.61% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
O1E 8.7 components
Fork
The O1E 8.7 comes factory-installed with the Fox Rhythm Float 32 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The O1E 8.7 has a rear shock with a travel of 38mm. The model FOX Float DPS Performance is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The O1E 8.7 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Focus O1E 8.7 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
