Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL E-Road, disc, road boost 148x12 mm through axle, RAT Evo technology, flat mount 160 mm, internal brake & gear cable routing
Suspension Fork
Carbon, disc, road boost 110x12 mm RAT through axle, RAT Evo Technology, flat mount 140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7020
Wheels
Rims
DT Swiss RR521 SPLINE DB, 32mm height w/ DT Swiss 370 boost hub
Tires
Continental Ultra Sport II, 700 x 28C
Brakes
Brakes
Shimano 105 R7025 hydraulic disc
Brake Levers
Shimano 105 R7025
Cockpit
Stem
BBB Basic, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Basic, Aluminium, drop: 125 mm, reach: 70mm
Seat
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Remote
FAZUA evation 1.0 remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 587 mm | 593 mm | 610 mm | 632 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 65 mm | 62 mm | 59 mm | 59 mm |
| Stack | 559 mm | 575 mm | 600 mm | 625 mm |
| Reach | 365 mm | 370 mm | 385 mm | 400 mm |
| Top Tube Length | 519 mm | 542 mm | 563 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 516 mm | 540 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 150 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 991 mm | 1009 mm | 1031 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

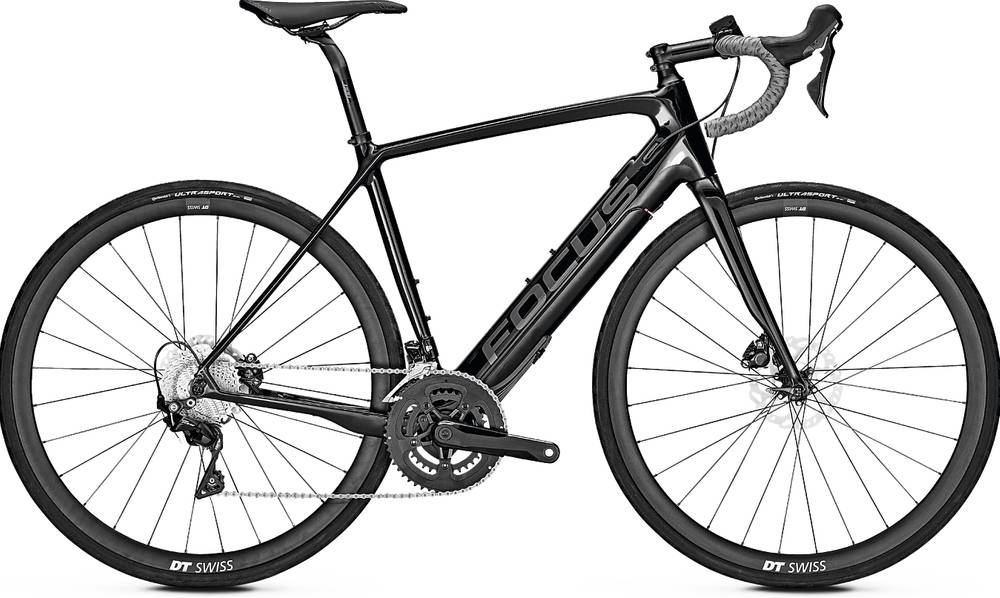

PARALANE² 9.6 is a Focus E Paralane model. There are 25 e-bikes that carry this model name. You can easily view all of the Focus E Paralane e-bikes models from 2019, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
If you want an acceptable Endurance e-bike you should know that the average price is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
PARALANE² 9.6 components
Fork material
PARALANE² 9.6 has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on PARALANE² 9.6 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The PARALANE² 9.6 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
PARALANE² 9.6 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
