Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F.I.T carbon E-Road, disc, road boost 148x12 mm thru axle, R.A.T Evo technology, flat mount 160 mm, internal cable routing
Suspension Fork
Carbon, disc, road boost 110x12 mm, thru axle, R.A.T Evo technology, flat mount 160/140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra R8050, Di2
Front Derailleur
Shimano Ultegra R8050, Di2
Shift Levers
Shimano Ultegra R8070, Di2
Cassette
Shimano Ultegra R8000
Crank
FSA, carbon
Bottom Bracket
Integraded in Drive Unit
Chain
Shimano CN-HG701
Wheels
Rims
DT Swiss RR521 SPLINE DB, 32mm height w/ DT Swiss 370 boost hub
Tires
Continental GP4000S II, 700 x 28C, Folding
Brakes
Brakes
Shimano Ultegra R8020 hydraulic disc, 160 / 160 mm
Brake Levers
Shimano Ultegra R8020
Cockpit
Stem
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Deluxe, aluminium, drop: 125mm, reach: 70mm
Grips
FOCUS Bartape SL
Headset
IS42/28.6 - IS52/40
Seat
Saddle
Prologo Scratch
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Remote
FAZUA evation 1.0 remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 587 mm | 593 mm | 610 mm | 632 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 65 mm | 62 mm | 59 mm | 59 mm |
| Stack | 559 mm | 575 mm | 600 mm | 625 mm |
| Reach | 365 mm | 370 mm | 385 mm | 400 mm |
| Top Tube Length | 520 mm | 540 mm | 563 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 516 mm | 540 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 150 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 991 mm | 1009 mm | 1031 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

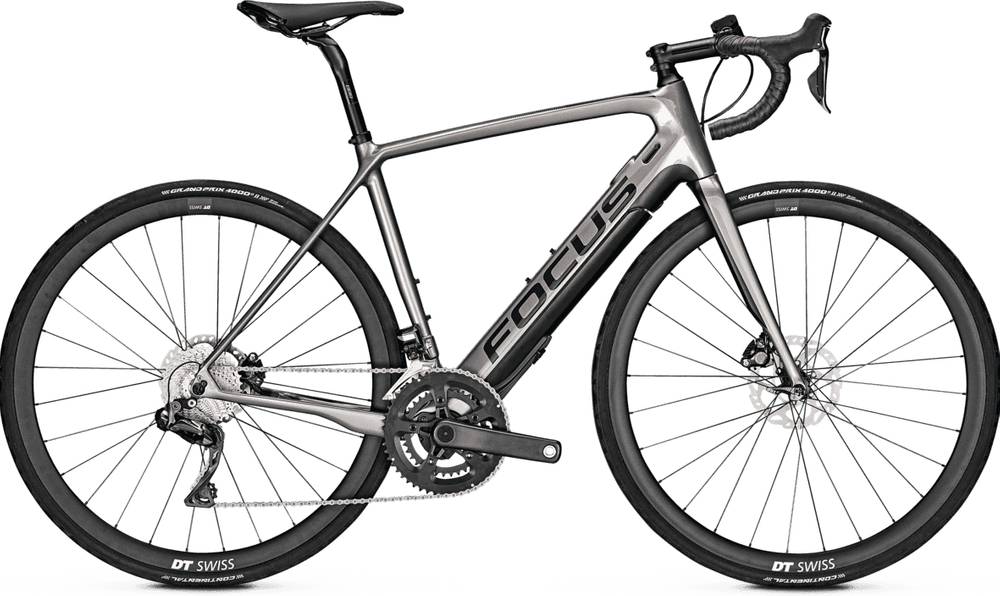

PARALANE² 9.8 belongs to the Focus E Paralane model. Focus released 25 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance e-bikes
According to our math, the average price for a trustworthy Endurance e-bike is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Endurance e-bikes average weight
If we make a quick analysis of the average weight of an Endurance e-bike, we get 13.52 kg (29.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, PARALANE² 9.8 has a weight of 13.7 kg (30.2 lbs). In other words, this model is 1.33% heavier than the average Endurance e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The PARALANE² 9.8 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The PARALANE² 9.8 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
PARALANE² 9.8 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
