Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon SL E-Road, disc, road boost 148x12 mm through axle, RAT Evo technology, flat mount 160 mm, internal brake & gear cable routing
Suspension Fork
Carbon, disc, road boost 110x12 mm RAT through axle, RAT Evo Technology, flat mount 140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7020
Crank
FSA, aluminium
Wheels
Rims
DT Swiss RR521 SPLINE DB, 32mm height w/ DT Swiss 370 boost hub
Tires
Continental Ultra Sport II, 700 x 28C
Brakes
Brakes
Shimano 105 R7025 hydraulic disc
Brake Levers
Shimano 105 R7025
Cockpit
Stem
BBB Basic, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Basic, Aluminium, drop: 125 mm, reach: 70mm
Seat
Seatpost
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 587 mm | 593 mm | 610 mm | 632 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 65 mm | 62 mm | 59 mm | 59 mm |
| Stack | 559 mm | 575 mm | 600 mm | 625 mm |
| Reach | 365 mm | 370 mm | 385 mm | 400 mm |
| Top Tube Length | 519 mm | 542 mm | 563 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 516 mm | 540 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 150 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 991 mm | 1009 mm | 1031 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

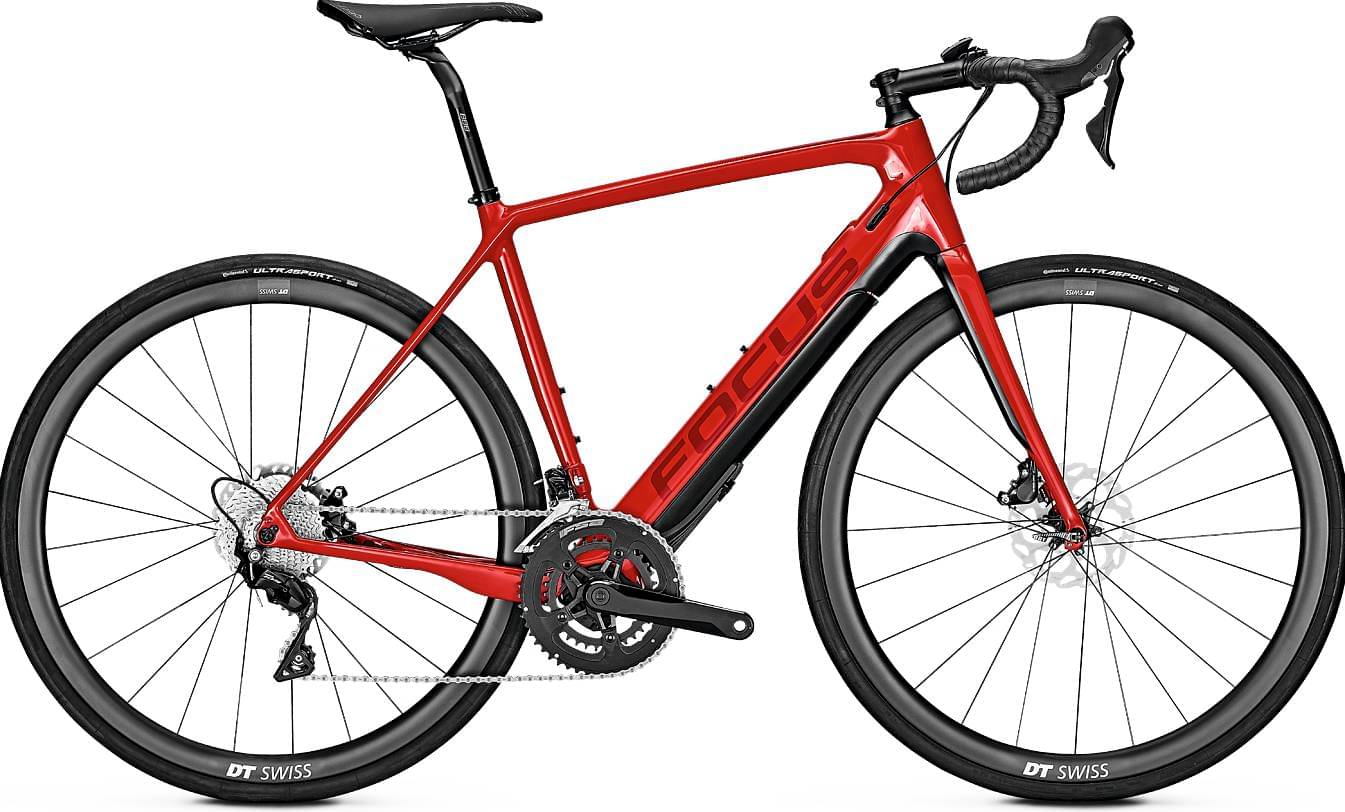

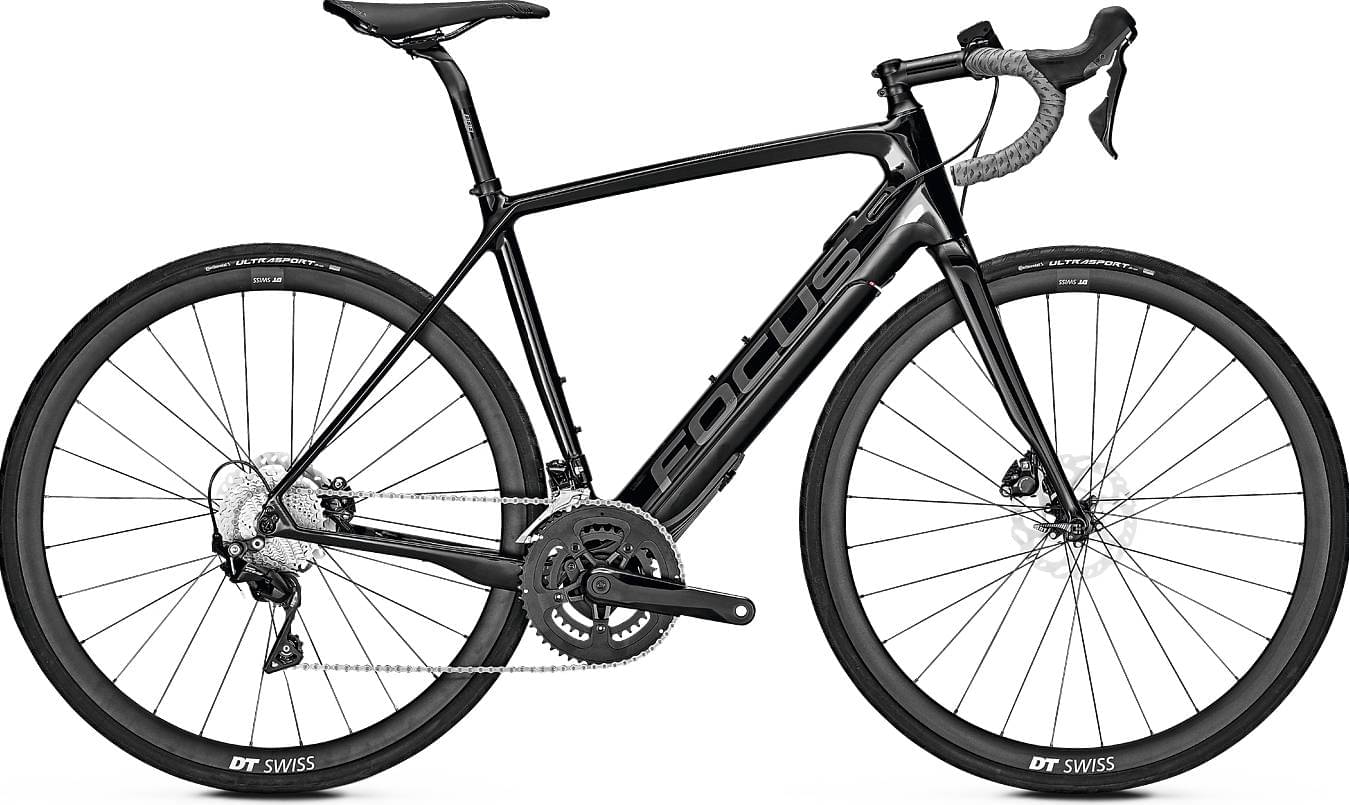

PARALANE² 9.6 is a Focus E Paralane2 model. Focus released 25 e-bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance e-bikes
According to our math, the average price for a trustworthy Endurance e-bike is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
PARALANE² 9.6 components
Fork material
PARALANE² 9.6 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on PARALANE² 9.6 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The PARALANE² 9.6 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
