Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F.I.T carbon E-Road, disc, road boost 148x12 mm thru axle, R.A.T Evo technology, flat mount 160 mm, internal cable routing
Suspension Fork
Carbon, disc, road boost 110x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/140 mm, internal brake cable routing
Drivetrain
Rear Derailleur
Shimano Ultegra R8000
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8020
Cassette
Shimano Ultegra R8000
Crank
FSA, carbon
Bottom Bracket
Integraded in Drive Unit
Chain
Shimano CN-HG701
Wheels
Rims
DT Swiss RR521 SPLINE DB, 32mm height w/ DT Swiss 370 boost hub
Tires
Vittoria Rubino TLR, 700 x 28C, Folding
Brakes
Brakes
Shimano Ultegra R8020 hydraulic disc, 160 / 160 mm
Brake Levers
Shimano Ultegra R8020
Cockpit
Stem
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Handlebar
BBB Deluxe, aluminium, drop: 125mm, reach: 70mm
Grips
FOCUS Bartape SL
Headset
IS42/28.6 - IS52/40
Seat
Saddle
Prologo Scratch
Seatpost
BBB FlyPost SP-131, 27,2mm, carbon
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 587 mm | 593 mm | 610 mm | 632 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 65 mm | 62 mm | 59 mm | 59 mm |
| Stack | 559 mm | 575 mm | 600 mm | 625 mm |
| Reach | 365 mm | 370 mm | 385 mm | 400 mm |
| Top Tube Length | 520 mm | 540 mm | 563 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 516 mm | 540 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 150 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 985 mm | 991 mm | 1009 mm | 1031 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

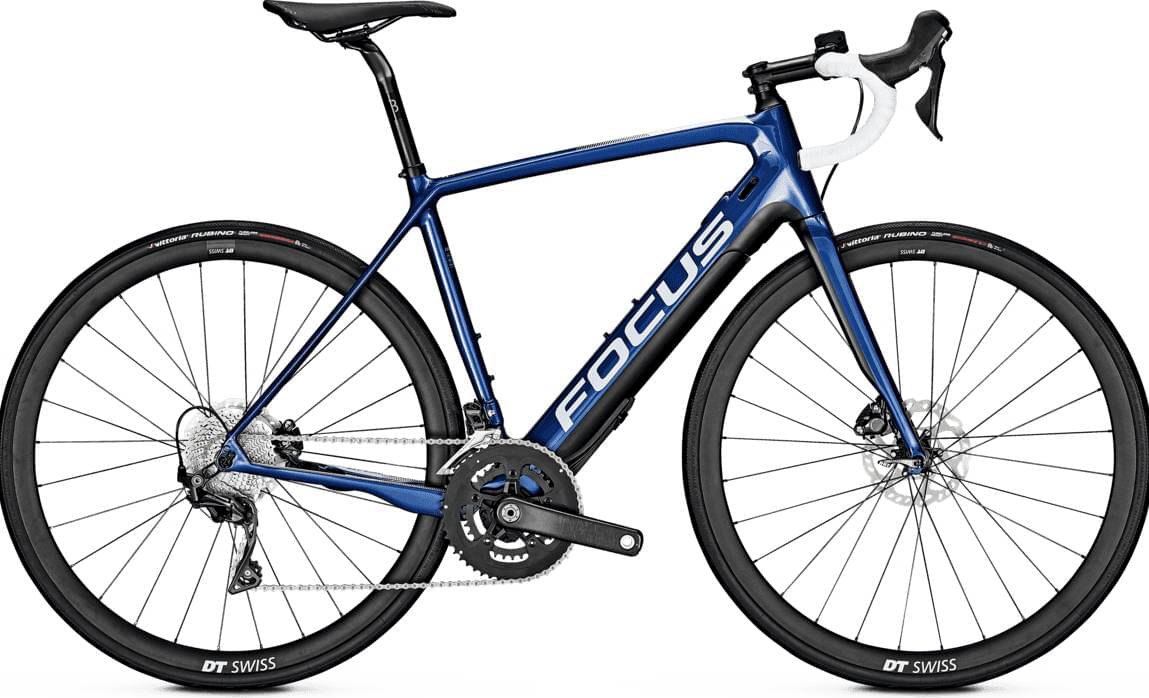

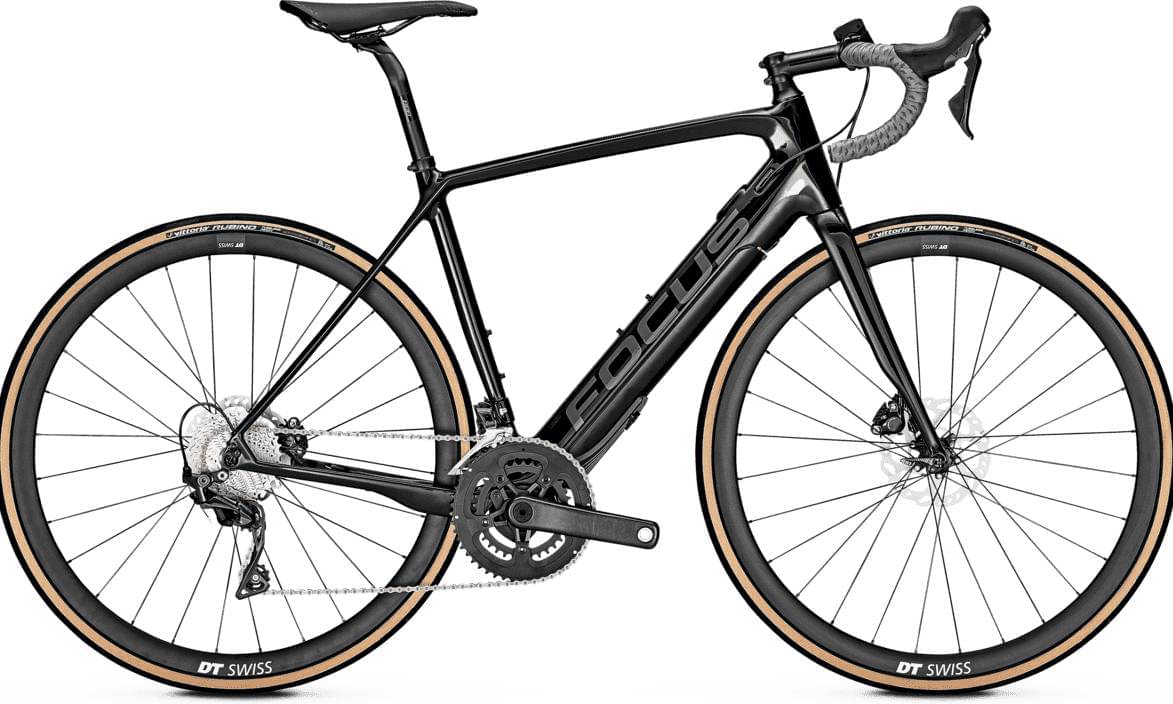

PARALANE² 9.7 belongs to the Focus E Paralane2 model. There are 25 e-bikes that carry this model name. Take a sneak peek at all Focus E Paralane2 e-bikes models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance e-bikes
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Endurance e-bikes average weight
On a deeper look, we notice that the average weight of an Endurance e-bike is 13.52 kg (29.81 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, PARALANE² 9.7 has a weight of 13.8 kg (30.42 lbs). In conclusion, the average Endurance e-bike weighs 2.07% less than PARALANE² 9.7.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
PARALANE² 9.7 components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the PARALANE² 9.7 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PARALANE² 9.7 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
