Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, Belt Drive ready, international disc brake standard
Suspension Fork
6061 aluminium
Drivetrain
Shift Levers
Shimano Nexus, 8-speed
Bottom Bracket
BSA, threaded
Wheels
Rims
Jalco SR 300, 622-16, Shimano TX-505 CL, 9 mm QR / 9 mm QR
Tires
Continental SportContact, 622-35
Brakes
Brakes
Shimano BR-M315, 160 mm / 160 mm
Cockpit
Stem
aluminium, 31.8mm
Handlebar
aluminium, riserbar, 720mm
Seat
Seatpost
aluminium, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.38 mm | 1.38 mm | 1.38 mm |
| Front Center | 626 mm | 636 mm | 651 mm | 671 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 73 mm | 78 mm | 77 mm |
| Stack | 563 mm | 567 mm | 586 mm | 604 mm |
| Reach | 398 mm | 411 mm | 425 mm | 438 mm |
| Top Tube Length | 553 mm | 578 mm | 603 mm | 628 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1065 mm | 1075 mm | 1090 mm | 1110 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

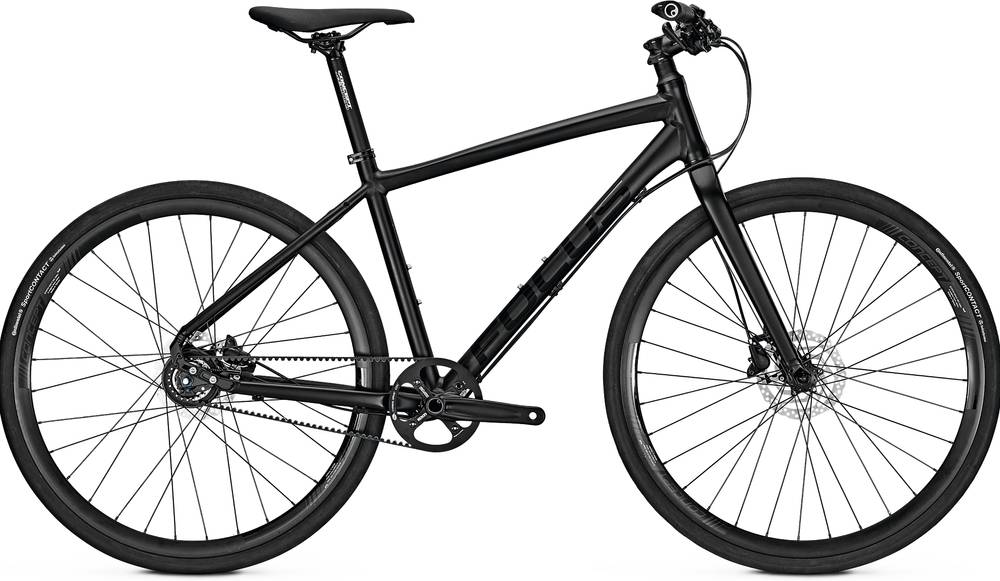

Model Overview
PLANET is a Focus Planet model. Focus released 2 bikes variations of this model so far. Take a sneak peek at all Focus Planet bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the PLANET model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The PLANET has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
PLANET comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
