Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium
Suspension Fork
SR Suntour NEX E25, lockout, 15mm QR,Rigid fork, alloy
Drivetrain
Rear Derailleur
Shimano SLX
Shift Levers
Shimano Deore
Wheels
Rims
Rodi Corsa 29" 662-23, Shimano Deore, 148x12 mm / 110x15 mm
Tires
Continental Contact Speed, 42-622,Schwalbe Supermoto X, 62-584
Brakes
Brakes
Shimano MT400, 180 mm / 180 mm
Brake Levers
Shimano MT400
Cockpit
Stem
aluminium, 31.8mm
Handlebar
aluminium, flatbar
Seat
Seatpost
BBB, aluminium, 31,6 mm
Motor & Battery
Motor
Bosch Performance CX, 75 Nm, 250 W, 50-300% support power
Battery
500 Wh
Remote
BOSCH Purion with Control panel, walk assist
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.67 mm | 1.67 mm | 1.67 mm |
| Front Center | 630 mm | 640 mm | 649 mm | 658 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 66 mm | 66 mm | 66 mm |
| Stack | 644 mm | 654 mm | 663 mm | 673 mm |
| Reach | 386 mm | 392 mm | 398 mm | 404 mm |
| Top Tube Length | 584 mm | 593 mm | 602 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 481 mm | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1103 mm | 1113 mm | 1122 mm | 1131 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

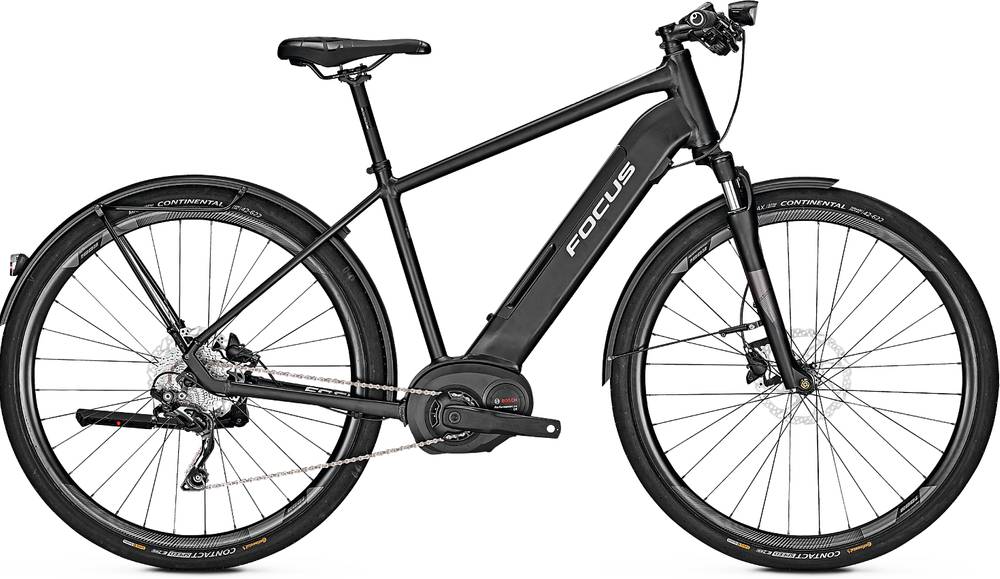

PLANET² 6.8 is a Focus E Planet model. Focus launched 13 e-bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
PLANET² 6.8 components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The PLANET² 6.8 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The PLANET² 6.8 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
