Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium
Suspension Fork
SR Suntour NEX E25, lockout, 9mm QR
Drivetrain
Rear Derailleur
Shimano Alivio
Shift Levers
Shimano Acera
Crank
FSA CK-310
Wheels
Rims
Rodi Corsa 29" 662-23, Shimano M3000, 9 mm QR / 9 mm QR
Tires
Continental Contact Speed, 42-622
Brakes
Brakes
Shimano BR-MT200, 180 mm / 180 mm
Brake Levers
Shimano MT200
Cockpit
Stem
aluminium, 31.8mm
Handlebar
aluminium, flatbar
Seat
Seatpost
BBB, aluminium, 31,6 mm
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.67 mm | 1.67 mm | 1.67 mm |
| Front Center | 630 mm | 640 mm | 649 mm | 658 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 66 mm | 66 mm | 66 mm |
| Stack | 644 mm | 654 mm | 663 mm | 673 mm |
| Reach | 386 mm | 392 mm | 398 mm | 404 mm |
| Top Tube Length | 584 mm | 593 mm | 602 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 481 mm | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1103 mm | 1113 mm | 1122 mm | 1131 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

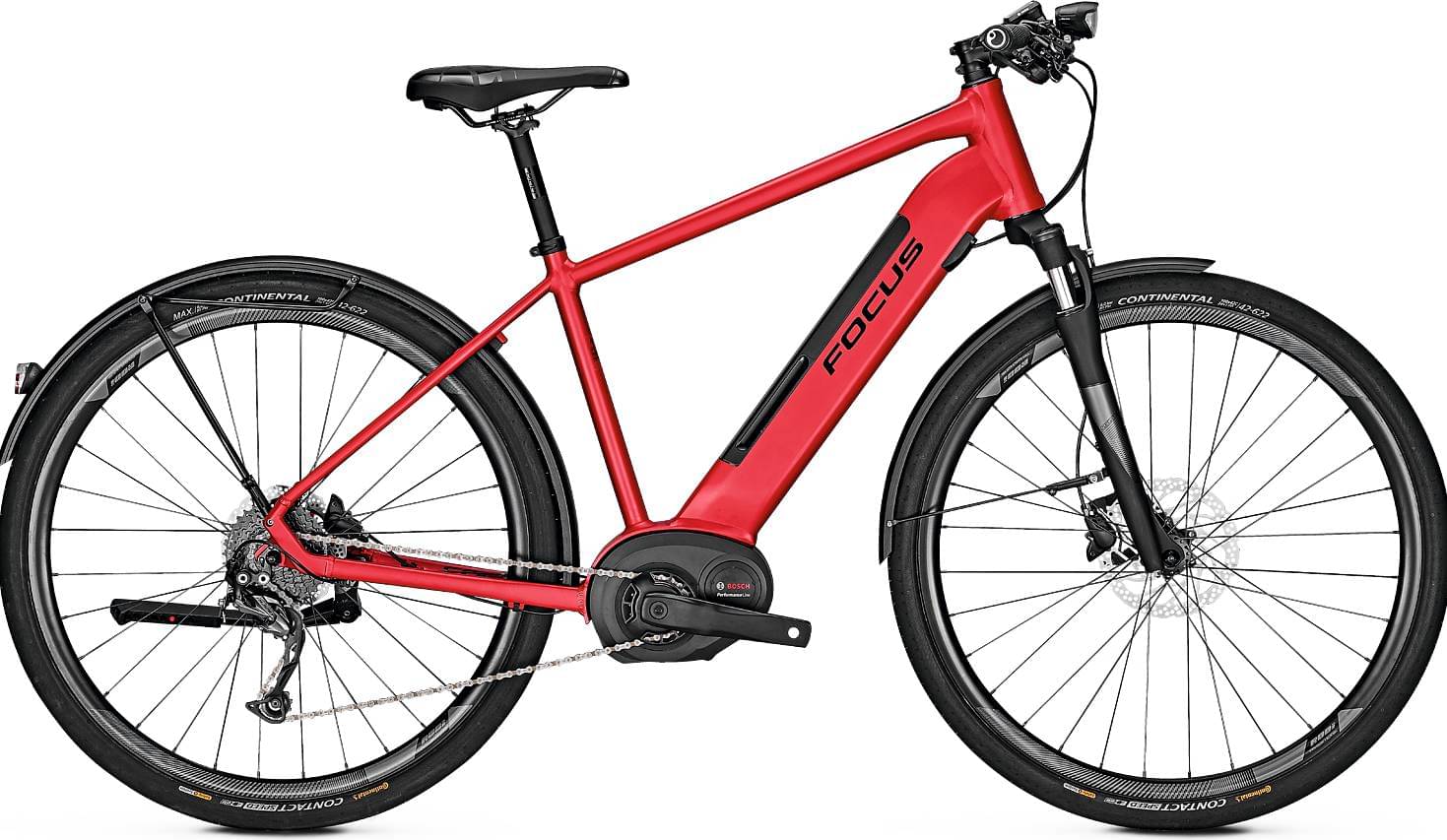

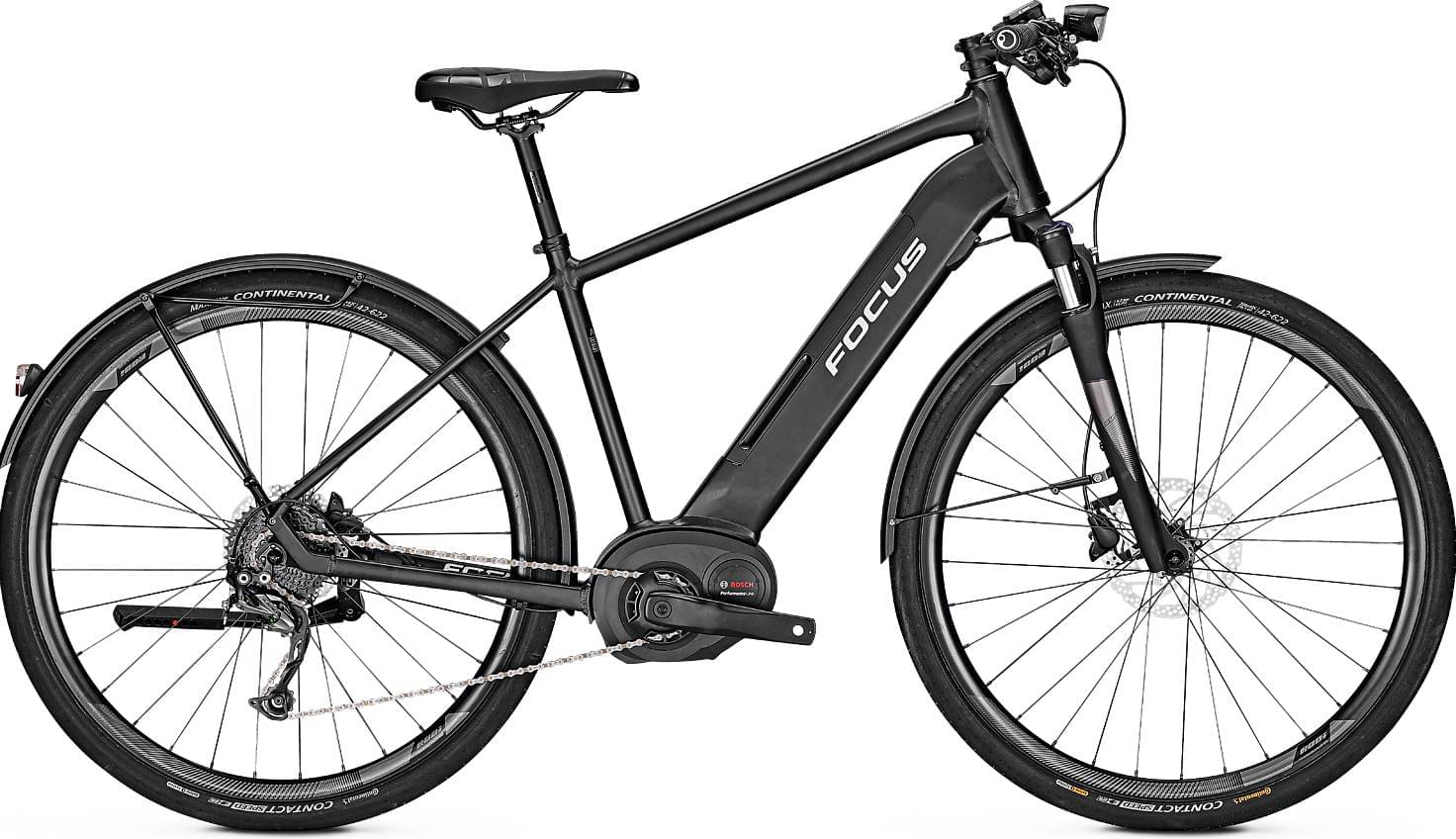

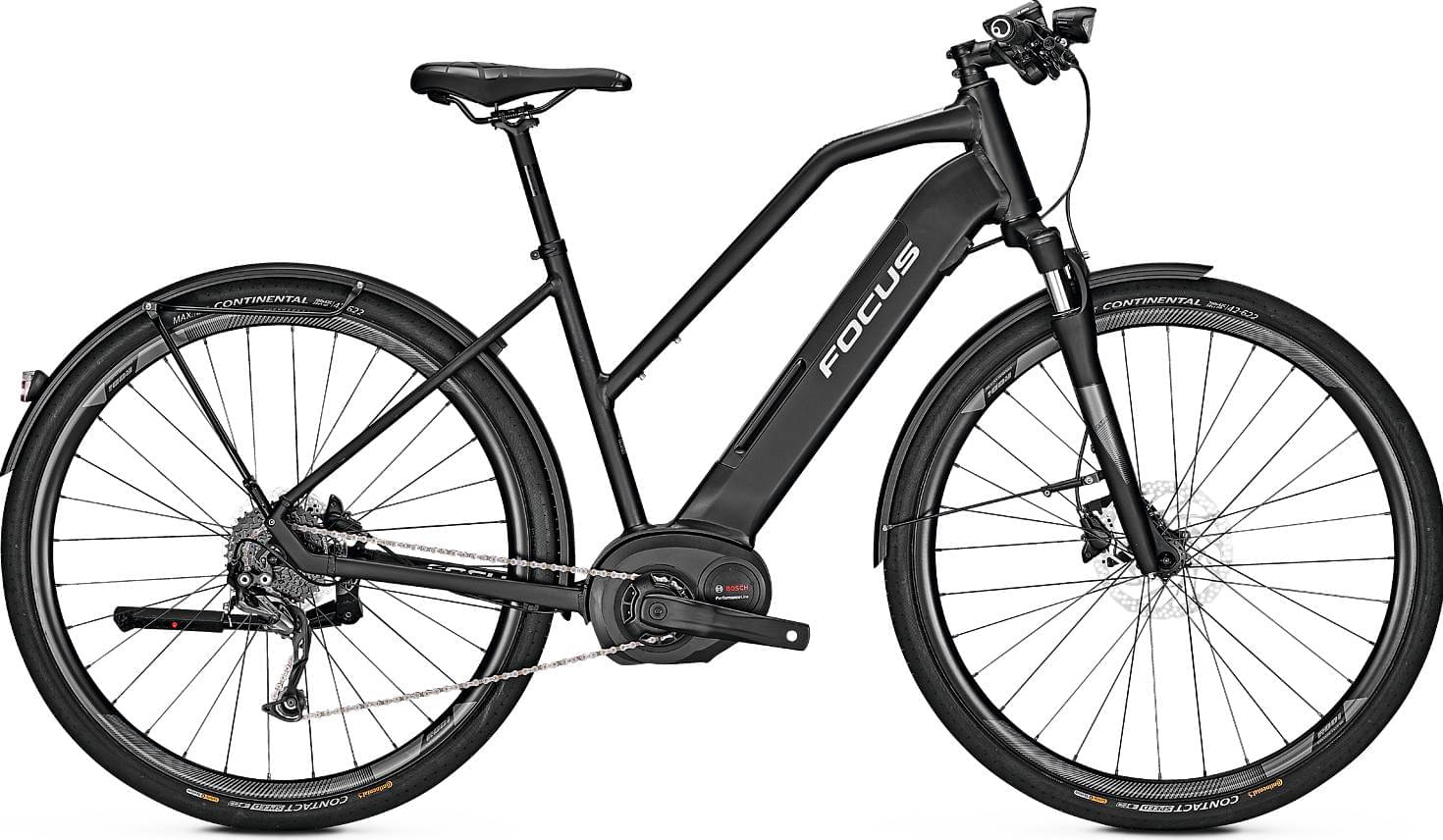

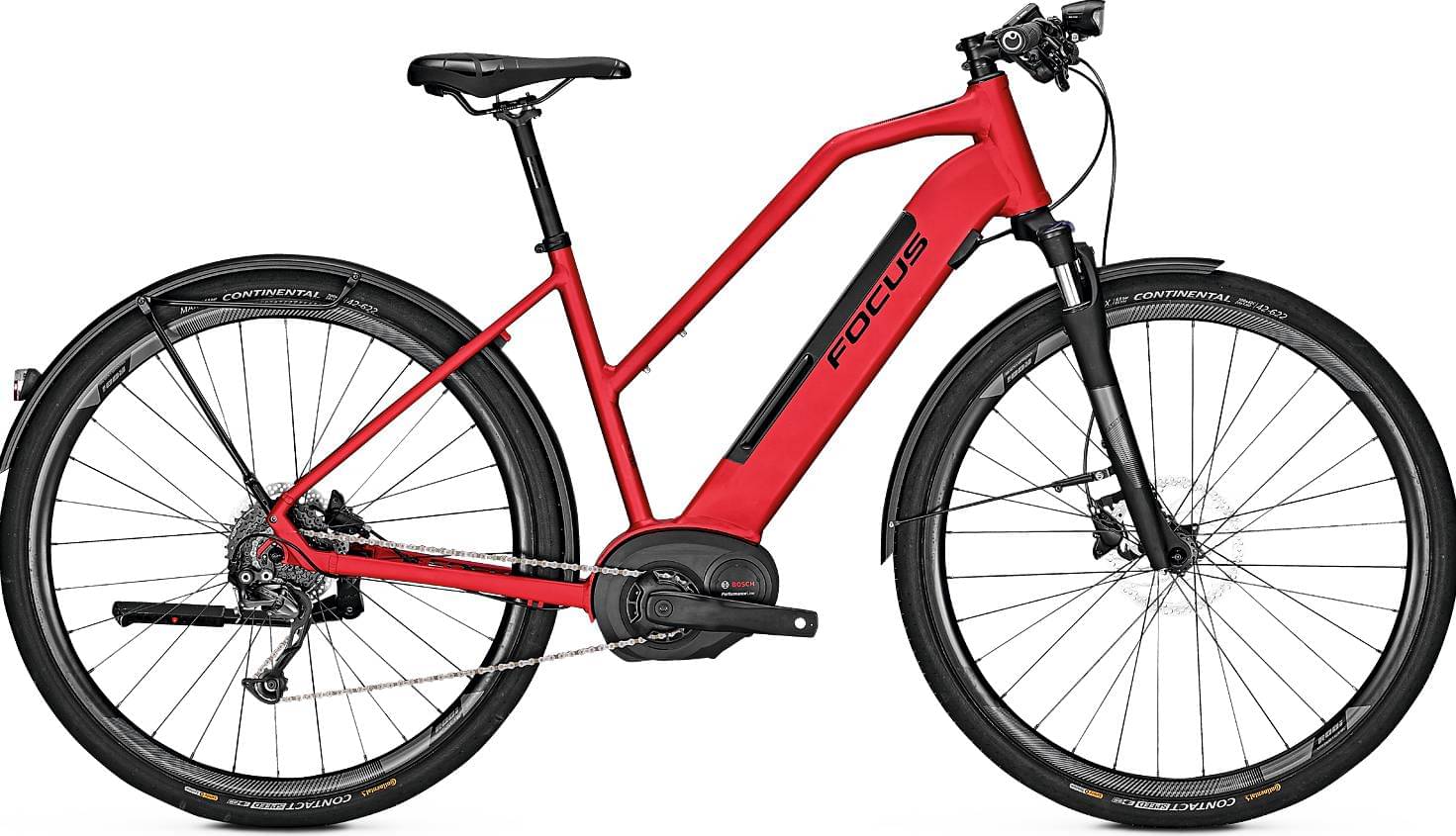

PLANET² 6.7 completes the Focus E Planet2 model. Focus released 15 e-bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
PLANET² 6.7 components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the PLANET² 6.7 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PLANET² 6.7 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Focus PLANET² 6.7 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
