Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset GX, GX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon frame, PF30 BB, 142x12 mm through axle, internal cable routing, Post Mount 160 mm
Suspension Fork
Fox 32 Rhythm, sweep adjust, 15 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
SRAM GX
Shift Levers
SRAM GX Eagle
Bottom Bracket
PF30, press-fit
Wheels
Rims
DT Swiss M1900, 622-25
Tires
Schwalbe Racing Ralph Performance 2.25
Brakes
Brakes
SRAM Level TL, 180 mm / 160 mm
Brake Levers
SRAM LEVEL TL
Cockpit
Stem
BBB Race, aluminium, 31.8 mm
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
BBB, aluminium, 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm | 306 mm |
| Front Center | 674 mm | 690 mm | 713 mm | 734 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 91 mm | 90 mm | 91 mm |
| Stack | 623 mm | 626 mm | 647 mm | 666 mm |
| Reach | 423 mm | 438 mm | 453 mm | 468 mm |
| Top Tube Length | 595 mm | 611 mm | 632 mm | 652 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 104 mm | 107 mm | 130 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1103 mm | 1119 mm | 1142 mm | 1163 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

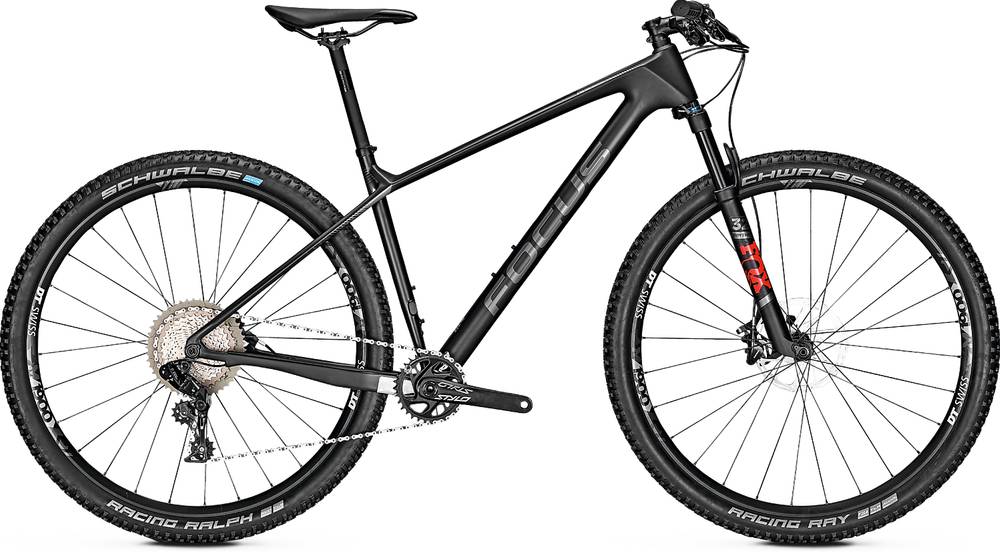

RAVEN 8.8 belongs to the Focus Raven model. 29 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the Fox Rhythm Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on RAVEN 8.8 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
