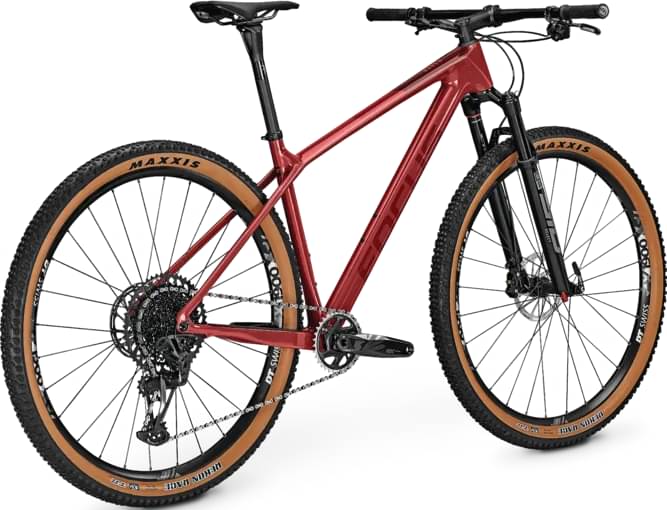

Focus Raven 8.8 2022
2022 Mountain
Estimate price |
3,605$
Weight | 10.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAVEN, carbon, PF30 BB, 142mm dropouts, internal cable routing, PM 160 rear brake
Suspension Fork
Rock Shox SID SL Select 29 Boost, Charger RL, DebonAir, 110x15 mm, 44 mm rake, 100 mm travel
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG-1275, 12-speed
Crank
SRAM GX EAGLE
Bottom Bracket
Pressfit
Chain
SRAM GX Eagle, 12-speed
Wheels
Rims
DT Swiss X1900, 25-622, 15x110 mm / 12x148 mm, 25 mm height
Tires
Maxxis Rekon Race, 2.25, 2C
Brakes
Brakes
SRAM Level TLM
Brake Levers
SRAM Level TLM
Cockpit
Stem
Aluminium, 31,8 mm
Handlebar
Aluminium, 760 mm, flatbar, backsweep: 9°, 31,8 mm
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seat
Saddle
Prologo Akero
Seatpost
BBB FlyPost SP-135, 27.2mm, set-back: 0mm, carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm | 306 mm |
| Front Center | 674 mm | 690 mm | 713 mm | 734 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 91 mm | 90 mm | 91 mm |
| Stack | 623 mm | 626 mm | 647 mm | 666 mm |
| Reach | 423 mm | 438 mm | 453 mm | 468 mm |
| Top Tube Length | 595 mm | 611 mm | 632 mm | 652 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 104 mm | 107 mm | 130 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1103 mm | 1119 mm | 1142 mm | 1163 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Raven 8.8 belongs to the Focus Raven model. There are 29 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Focus Raven 8.6 2022 is the most affordable bike of this model and has a price of 1804$. On the other hand, Focus Raven 8.8 2022, is the most expensive and costs 3290$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Focus released this model in 2022, its price was 3290$. Doing a quick comparison, we notice that Raven 8.8 price is 72.7% more expensive than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Raven 8.8 weighs 10.2 kg (22.49 lbs) and is much lighter than the average. In short, the average Crosscountry bike weight is 21.57% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Raven 8.8 components
Fork
The Raven 8.8 comes factory-installed with the RockShox SID SL Select fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Focus Raven 8.8 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Raven 8.8 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Focus Raven 8.8 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
