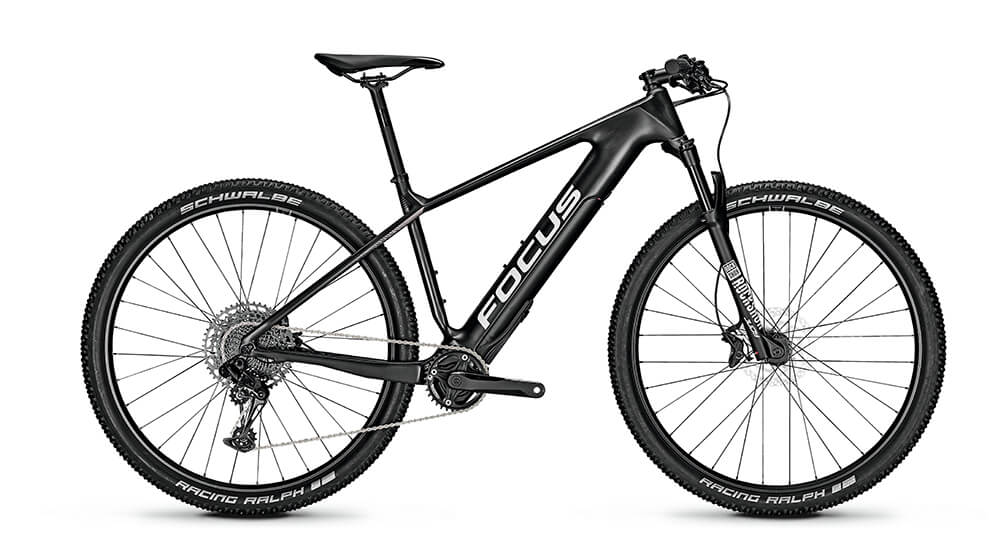

Focus RAVEN² 9.7 2021
2021 E-bike
Estimate price |
4,587$
Weight | 17.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Gold RL
-
Groupset SX Eagle, FSA -
Suspension Hardtail -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F.I.T. Technology Carbon frame, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Suspension Fork
Rock Shox Judy Gold RL 29 Boost, E-MTB, 15x110 mm, 51 mm rake, 100 mm travel
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210 Eagle, 12-speed
Crank
FSA CK-746, aluminium
Bottom Bracket
-
Chain
SRAM SX Eagle, 12-speed
Wheels
Front Hub
Novatec D041, 15x110 mm
Rear Hub
Novatec D162 Disc, 12x148 mm
Rims
Rodi Black Rock, with eyelets
Tires
Schwalbe Racing Ralph Performance 2.25
Brakes
Brakes
Shimano MT420, 4-piston, hydraulic disc brake
Brake Levers
Shimano MT420
Cockpit
Stem
BBB Rider BHS-109, 31.8mm, 7°
Handlebar
BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree
Grips
FOCUS Locker SL
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seat
Saddle
FOCUS Race SL
Seatpost
BBB Deluxe, Aluminium, 27,2mm, 350mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Remote
FAZUA evation 1.0 remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | SM |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.44 mm |
| Bottom Bracket Height | 296 mm | 343 mm | 356 mm |
| Front Center | 578 mm | 712 mm | 763 mm |
| Rake | 46 mm | 51 mm | 51 mm |
| Trail | 86 mm | 92 mm | 127 mm |
| Stack | 498 mm | 607 mm | 630 mm |
| Reach | 356 mm | 422 mm | 436 mm |
| Top Tube Length | 500 mm | 601 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74.2 ° | 73.6 ° |
| Seat Tube Length | 430 mm | 445.8 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 68.4 ° | 65.6 ° |
| Head Tube Length | 80 mm | 112 mm | 140 mm |
| Chainstay Length | 406 mm | 444 mm | 453 mm |
| Wheelbase | 971 mm | 1154 mm | 1215 mm |
| Bottom Bracket Drop | 78 mm | 31 mm | 18 mm |
| Wheels | 29" | 29" | 29" |
About this model
RAVEN² 9.7 belongs to the Focus E Raven model. There are 9 e-bikes that carry this model name. Take a sneak peek at all Focus E Raven e-bikes models from 2021, by clicking here.
Model range prices
Focus RAVEN² 9.7 2021 is the most affordable e-bike of this model and has a price of 4246$. On the other hand, Focus RAVEN² 9.8 2021, is the most expensive and costs 5308$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Focus released this model in 2021, its price was 4246$. Doing a quick comparison, we notice that RAVEN² 9.7 price is 73.09% more expensive than the average cost of a Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
RAVEN² 9.7 weighs 17.2 kg (37.92 lbs) and is much lighter than the average. To sum up, it’s 34.94% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox Judy Gold RL is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the RAVEN² 9.7 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
