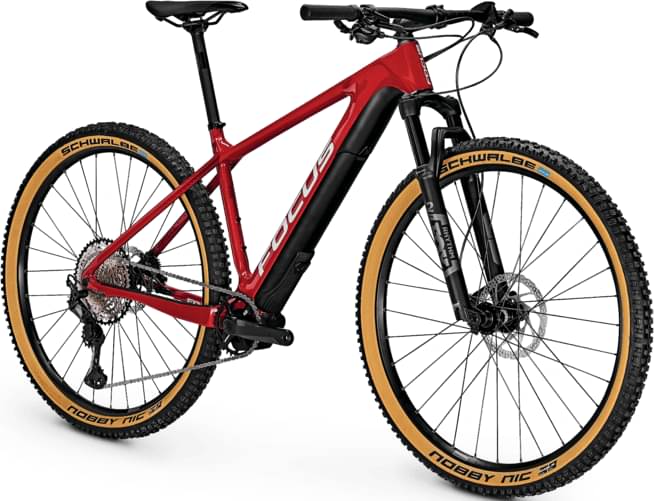

Focus RAVEN² 9.8 2022
2022 E-bike
Estimate price |
5,816$
Weight | 16.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F.I.T. Technology Carbon frame, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm
Suspension Fork
FOX 32 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
FSA CK-746, aluminium
Bottom Bracket
-
Chain
Shimano SLX CN-M7100, 12-speed
Wheels
Front Hub
Novatec D041, 15x110 mm
Rear Hub
Novatec D162 Disc, 12x148 mm
Rims
RODI TRYP25, 25-622
Tires
Schwalbe Nobby Nic Evo Addix Speedgrip, 2.25
Brakes
Brakes
Shimano SLX M7100
Brake Levers
Shimano SLX M7100
Cockpit
Stem
BBB Rider BHS-109, 31.8mm, 7°
Handlebar
BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree
Headset
Acros AIX-322, tapered, IS 42/286-IS52/40
Seat
Saddle
FOCUS Race SL
Seatpost
BBB Deluxe, Aluminium, 27,2mm, 350mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Remote
FAZUA evation 1.0 remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.43 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Front Center | 674 mm | 689 mm | 712 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 623 mm | 626 mm | 647 mm |
| Reach | 423 mm | 438 mm | 453 mm |
| Top Tube Length | 595 mm | 611 mm | 631 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 104 mm | 107 mm | 130 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1122 mm | 1138 mm | 1161 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
RAVEN² 9.8 completes the Focus E Raven model. Focus released 9 e-bikes variations of this model so far. You can easily view all of the Focus E Raven e-bikes models from 2022, here.
Model range prices
Focus RAVEN² 9.7 2022 is the most economical model, with a starting price of 4246$. Focus RAVEN² 9.8 2022 on the other hand costs 5308$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5308$. In conclusion, this e-bike price is 116.39% higher than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Focus RAVEN² 9.8 it’s weighing 16.3 kg (35.94 lbs). At this weight, is much lighter than average. To sum up, it’s 42.39% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
RAVEN² 9.8 components
Fork
Focus RAVEN² 9.8 2022 e-bike is equipped with the Fox Rhythm Float 32 fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The RAVEN² 9.8 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RAVEN² 9.8 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
