Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Hardtail -
Motor Fazua 250W 60Nm mid-drive -
Battery 7 Ah -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon frame, 148x12 mm through axle, internal cable routing, Post Mount 160 mm
Suspension Fork
Fox 32 Float SC Performance, remote, 110x15 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano XT 8000
Wheels
Rims
DT Swiss M1650, 622x25, Shimano Deore, 148x12 mm / 110x15 mm
Tires
Continental RACE KING 2.2 SL Folding
Brakes
Brakes
Shimano XT M8000 180 mm / 160 mm
Cockpit
Stem
BBB, aluminium, 90mm
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
BBB, carbon, 27,2 mm, 394 mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
7 Ah
Remote
FAZUA evation 1.0 remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.43 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Front Center | 674 mm | 689 mm | 712 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 623 mm | 626 mm | 647 mm |
| Reach | 423 mm | 438 mm | 453 mm |
| Top Tube Length | 595 mm | 611 mm | 631 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 104 mm | 107 mm | 130 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1122 mm | 1138 mm | 1161 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

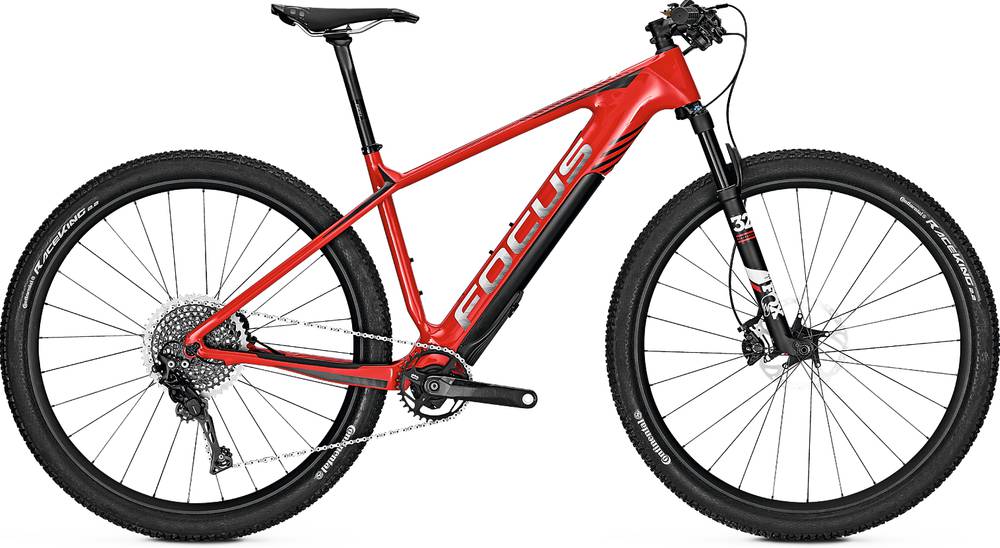

RAVEN² Pro completes the Focus E Raven model. 9 e-bikes variations carry this model name so far. You can easily view all of the Focus E Raven e-bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Focus RAVEN² Pro 2018, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus RAVEN² Pro has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Focus RAVEN² Pro e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
