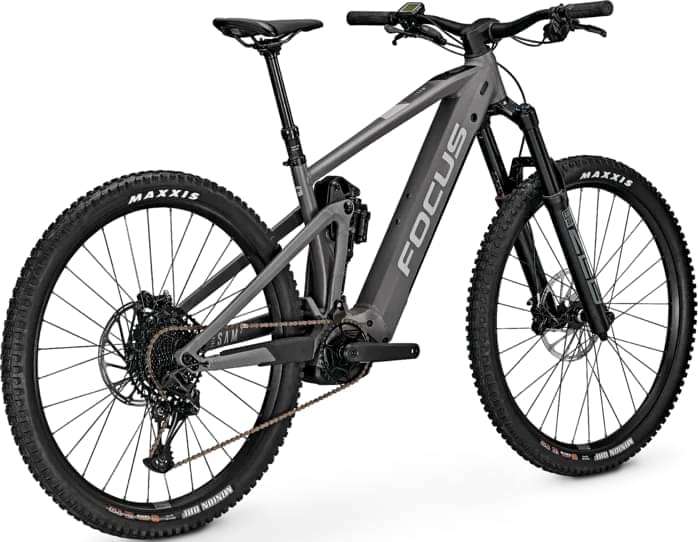

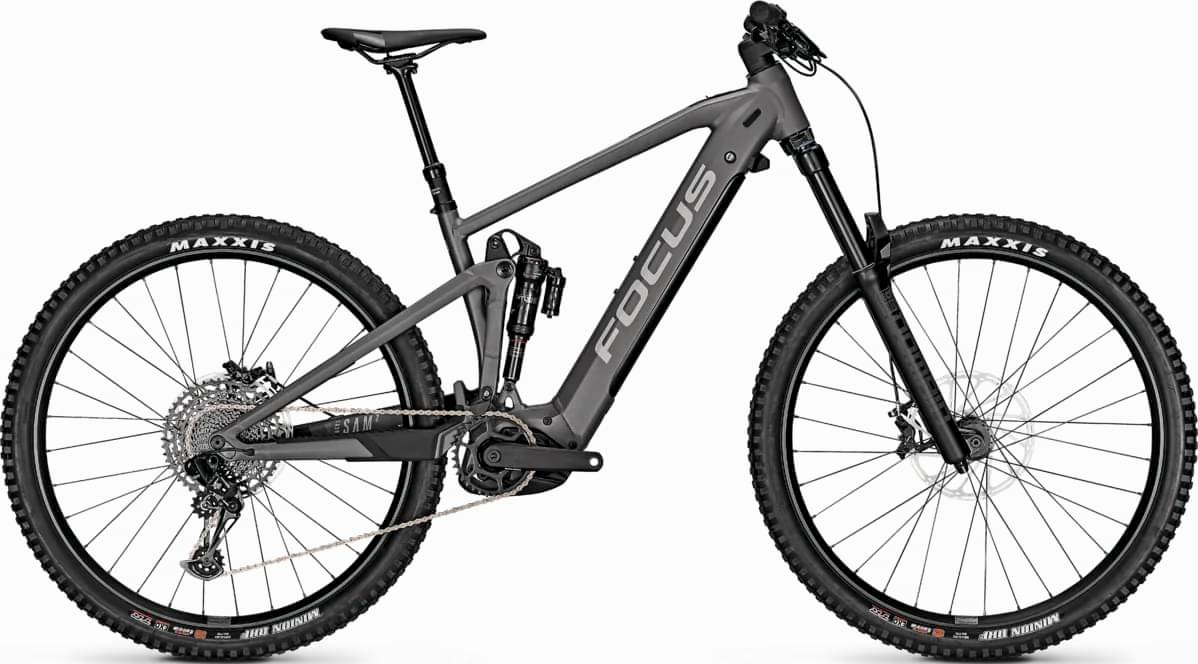

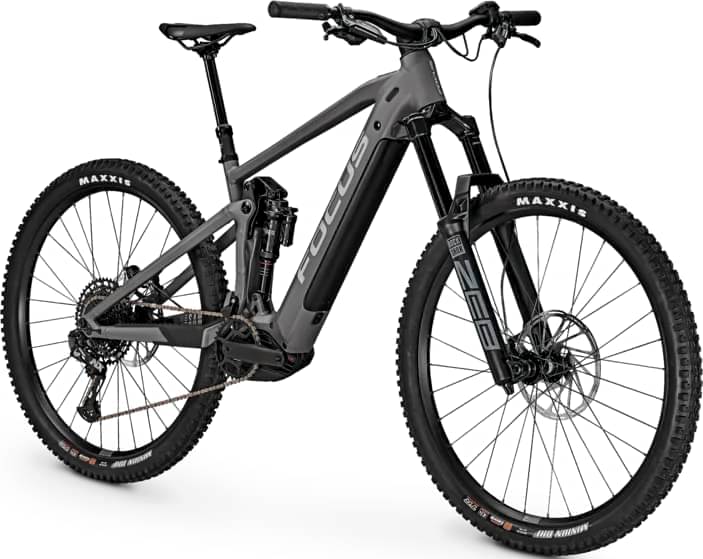

Focus SAM² 6.7 2022
2022 E-bike
Estimate price |
5,734$
Weight | 25.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
Suspension Fork
Rock Shox Domain R 29, 110x15 mm, 44 mm rake
Rear Shock
Rock Shox Deluxe Select, 230/65 mm, hardware: 25.0 x 8.0 mm
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1230 Eagle, 12-speed
Crank
Samox EC40 ISIS
Bottom Bracket
Integrated in Drive Unit
Chain
SRAM SX Eagle, 12-speed
Wheels
Front Hub
Novatec D041, 15x110 mm thru axle
Rear Hub
Novatec D462, 12x148 mm
Rims
RODI TRYP30, 30-622
Tires
Maxxis Minion DHF, EXO, 63-622
Brakes
Brakes
SRAM GUIDE T
Brake Levers
SRAM GUIDE T
Cockpit
Stem
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
Handlebar
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Seat
Saddle
FOCUS Trail SL
Seatpost
Post Moderne dropper post PM-MT171, 31.6 mm
Motor & Battery
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Battery
625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.36 mm | 1.31 mm |
| Front Center | 766 mm | 787 mm | 824 mm | 862 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 123 mm | 125 mm | 124 mm | 124 mm |
| Stack | 622 mm | 627 mm | 641 mm | 659 mm |
| Reach | 423 mm | 443 mm | 473 mm | 503 mm |
| Top Tube Length | 580 mm | 601 mm | 635 mm | 669 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1208 mm | 1229 mm | 1266 mm | 1304 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SAM² 6.7 completes the Focus E Sam2 model. Focus released 17 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Focus SAM² 6.7 2022 is the most economical model, with a starting price of 5308$. Focus SAM² 6.9 2022 on the other hand costs 7113$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Focus released this model in 2022, its price was 5308$. Comparing the average cost of an Enduro e-bike to this one, you will see that SAM² 6.7 price is 10.93% higher.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Focus SAM² 6.7 it’s weighing 25.3 kg (55.78 lbs). At this weight, is a bit heavier than average. In conclusion, the average Enduro e-bike weighs 8.03% less than SAM² 6.7.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
SAM² 6.7 components
Fork
The RockShox Domain is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The SAM² 6.7 has a rear shock with a travel of 170mm. The model Rock Shox Deluxe Select is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Focus SAM² 6.7 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus SAM² 6.7 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the SAM² 6.7. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
