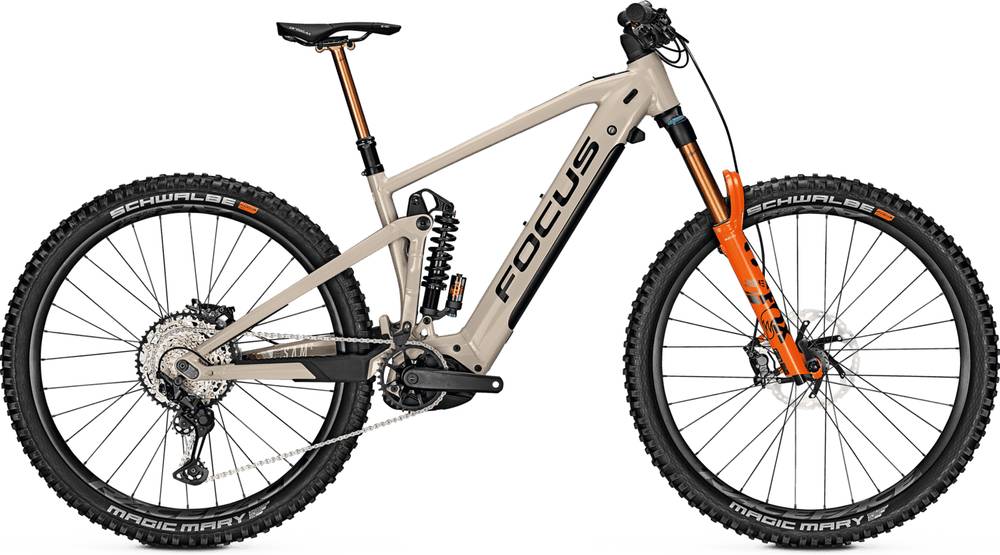

Focus SAM2 6.9 2021
2021 E-bike
Estimate price |
7,454$
Weight | 25.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm
Suspension Fork
FOX 38 Float Factory 29, E-Bike, Grip 2, 110 x 15 mm, 44 mm rake, 170 mm travel
Rear Shock
FOX Van Performance Coil, 230/65 mm, hardware: 25,0 x 8mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
Samox EC40 ISIS
Bottom Bracket
Integraded in Drive Unit
Chain
Shimano SLX CN-M7100
Wheels
Front Hub
Novatec D041, 15x110 mm
Rear Hub
Novatec D162 Disc, 12x148 mm
Rims
RaceFace AR30 Offset
Tires
Schwalbe Magic Mary 2.6 Super Trail Soft
Brakes
Brakes
Shimano XT M8120, 4 piston
Brake Levers
Shimano XT M8120, 4 piston
Cockpit
Stem
FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium
Handlebar
RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degree
Grips
RaceFace Getta Grip
Headset
Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40]
Seat
Saddle
Proxim W350
Seatpost
FOX Transfer RL Factory, 31,6mm
Motor & Battery
Motor
Bosch Performance CX Gen4, 85 Nm, 250 W
Battery
625 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 766 mm | 787 mm | 824 mm | 862 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 123 mm | 125 mm | 124 mm | 124 mm |
| Stack | 622 mm | 627 mm | 641 mm | 659 mm |
| Reach | 423 mm | 443 mm | 473 mm | 503 mm |
| Top Tube Length | 580 mm | 601 mm | 635 mm | 669 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1208 mm | 1229 mm | 1266 mm | 1304 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SAM2 6.9 is a Focus E Sam2 model. There are 17 e-bikes that carry this model name. You can easily view all of the Focus E Sam2 e-bikes models from 2021, here.
Model range prices
The most economical model, the Focus SAM² 6.7 2021 has a starting price of 5308$. Focus SAM2 6.9 2021 on the other hand is the most expensive at 6901$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Focus SAM2 6.9 price was 6901$. Comparing the average cost of an Enduro e-bike to this one, you will see that SAM2 6.9 price is 44.22% more expensive.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, SAM2 6.9 has a weight of 25.95 kg (57.21 lbs). In conclusion, the average Enduro e-bike weighs 10.8% less than SAM2 6.9.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SAM2 6.9 components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Van Performance Coil model, with a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the SAM2 6.9 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The SAM2 6.9 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the SAM2 6.9. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
