Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 180 mmm
Suspension Fork
Rock Shox Recon RL 29 Boost, E-MTB, 110x15 mm, 51 mm rake, 130 mm travel
Rear Shock
SR Suntour Edge LOR, 190/45 mm, hardware: 25,0 x 8mm, custom tune
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed
Crank
FSA CK-320, aluminium
Bottom Bracket
-
Chain
Shimano SLX CN-M7100
Wheels
Front Hub
Novatec D041, 15x110 mm thru axle
Rear Hub
Novatec D162 Disc, 12x148 mm
Rims
Rodi Tryp 30 custom for FOCUS
Tires
Schwalbe Nobby Nic Performance Addix 2.6
Brakes
Brakes
Shimano MT420, 4-piston, hydraulic disc brake
Brake Levers
Shimano MT420
Cockpit
Stem
FOCUS aluminium, 31,8 mm, 60 mm, 17 degree
Handlebar
Aluminium, riserbar, 760mm
Grips
FOCUS Sport Ergo
Headset
VP Components, ZS56/28,6-ZS56/40
Seat
Saddle
Proxim W350
Seatpost
Kind Shock E30i, 31,6mm
Motor & Battery
Motor
Bosch Performance CX Gen4, 75 Nm, 250 W
Battery
625 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.45 mm | 1.42 mm | 1.391 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 722 mm | 742 mm | 769 mm | 795 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 609.7 mm | 623.5 mm | 639.1 mm | 653.8 mm |
| Reach | 415 mm | 430 mm | 450 mm | 470 mm |
| Top Tube Length | 584 mm | 603 mm | 627 mm | 651 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 115 mm | 130 mm | 147 mm | 163 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1175 mm | 1196 mm | 1223 mm | 1249 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

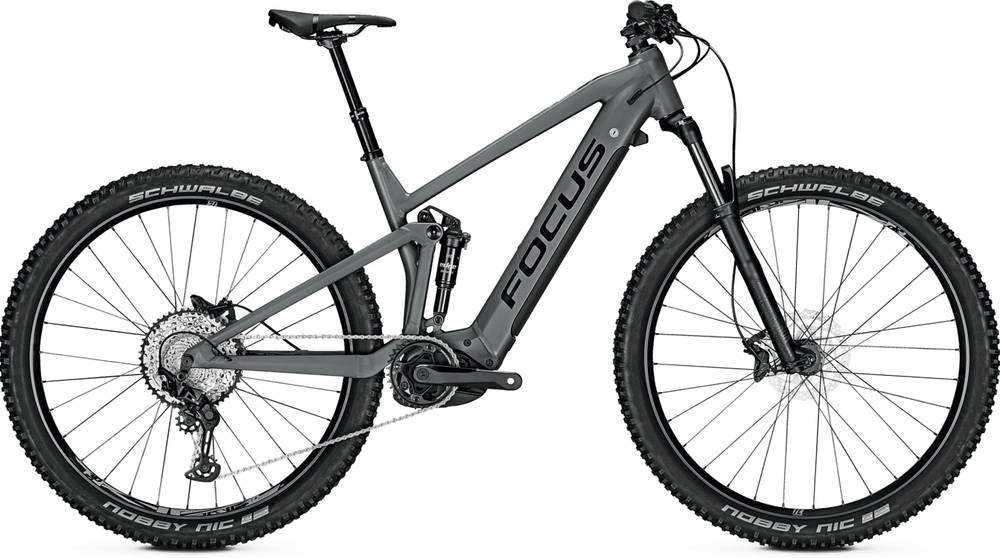

THRON² 6.8 is a Focus E Thron model. 20 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, THRON² 6.8 has a weight of 24 kg (52.91 lbs). In other words, this model is 1.27% heavier than the average Trail e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Focus THRON² 6.8 e-bike has the SR Suntour Edge LOR model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the THRON² 6.8 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Focus THRON² 6.8 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Focus THRON² 6.8 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the THRON² 6.8. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
